Window tilt latch
Professional from Siena College Dorm room
Sep 21, 2015 9:08 am

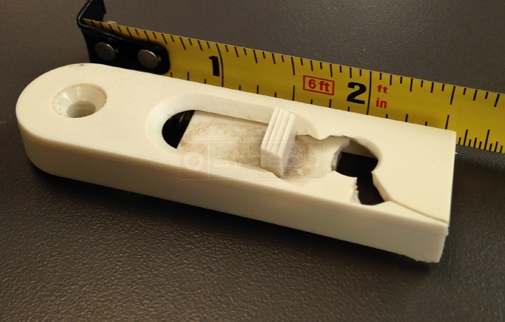

I can't find this part. I believe the windows are Jen Weld but not positive. CAn you please advise.
Thank you
Dan
Thank you
Dan
4 Replies
Dave Sr. from SWISCO
Sep 22, 2015 12:54 pm
Hey, Dan, thanks for contacting us. Is this tilt latch surface mounted? It's hard to tell, I'm not sure how much has broken off from the housing. Is there any way I can see an undamaged version of this part, perhaps from the opposite side of the window?
Could you also confirm your dimensions? I cannot make them out based on just a tape measurer held next to the part. I specifically need to know its width and hole spacing (measured from the center of each installation hole). Thanks!
Could you also confirm your dimensions? I cannot make them out based on just a tape measurer held next to the part. I specifically need to know its width and hole spacing (measured from the center of each installation hole). Thanks!
Professional from NY
Sep 23, 2015 11:27 am
Dave
Hole dimensions is 3/4" center to center.
It is 2 5/8" long and 3/4" wide. Thickness is 5/16".
It does recess into the sash.
The part is basically just cracked from over tightening the screw.
Hole dimensions is 3/4" center to center.
It is 2 5/8" long and 3/4" wide. Thickness is 5/16".
It does recess into the sash.
The part is basically just cracked from over tightening the screw.
Dave Sr. from SWISCO
Sep 24, 2015 3:05 pm
Thank you. The closest match we have is our 26-344. I cannot guarantee that this will work, but look it over and tell me what you think.
