Window tilt latch R and L : SWISCO.com

Home Owner from Wilmington NC

Mar 27, 2026 2:53 pm

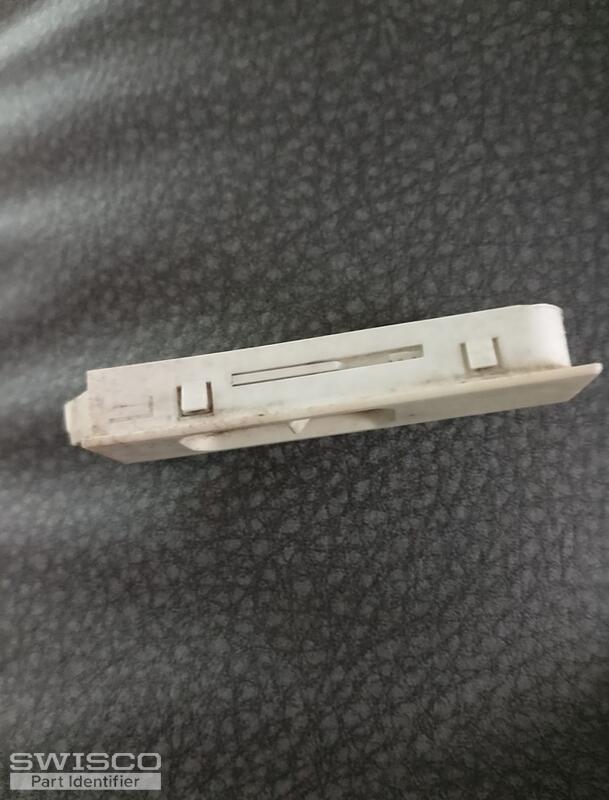

This part inscription is:
Pat#5,671.958.
Hello,
I am trying to identify what model should I order.
Also I am replacing the balance 26B for the window.
Thank you!

4 user uploaded images

10 Replies

Casey from SWISCO

Apr 1, 2026 10:42 am

Hello,

We don't carry an exact match for the tilt latch shown in your photos. The 26-243A and 26-244A would be our closest options, depending on how the specifications below compare to yours. Note that they slide into the cutout, while yours appears to clip in. We can't make any guarantees, but look them over and see what you think.

Dimensions for 26-243A

As for the balances, we may be able to help, but the stamp code only indicates the strength of the spring. We would need to see an intact balance uninstalled, including both ends used for installation, to compare to our inventory. Thank you!

Home Owner from Wilmington NC

Apr 2, 2026 1:43 pm

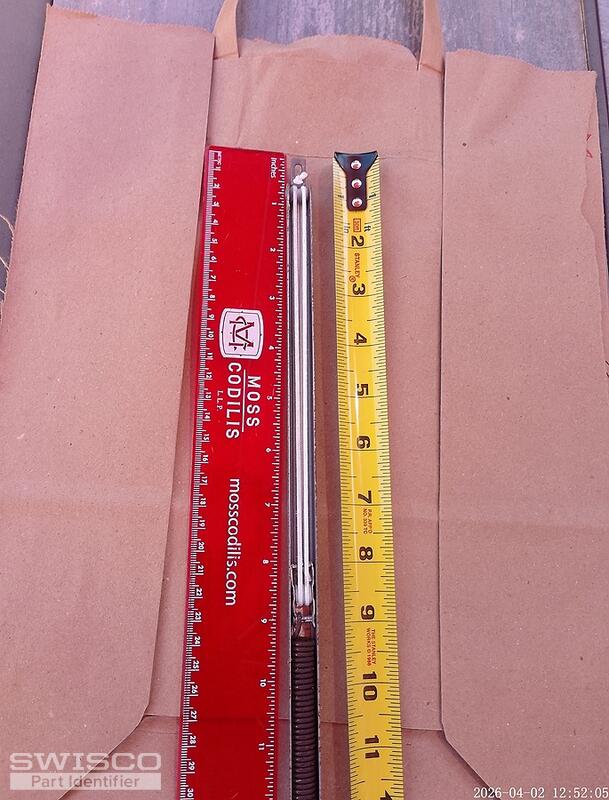

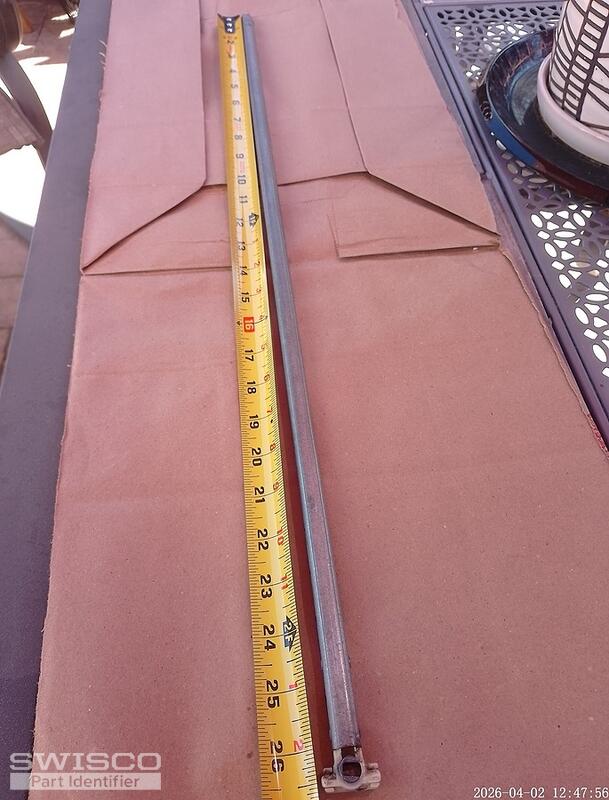

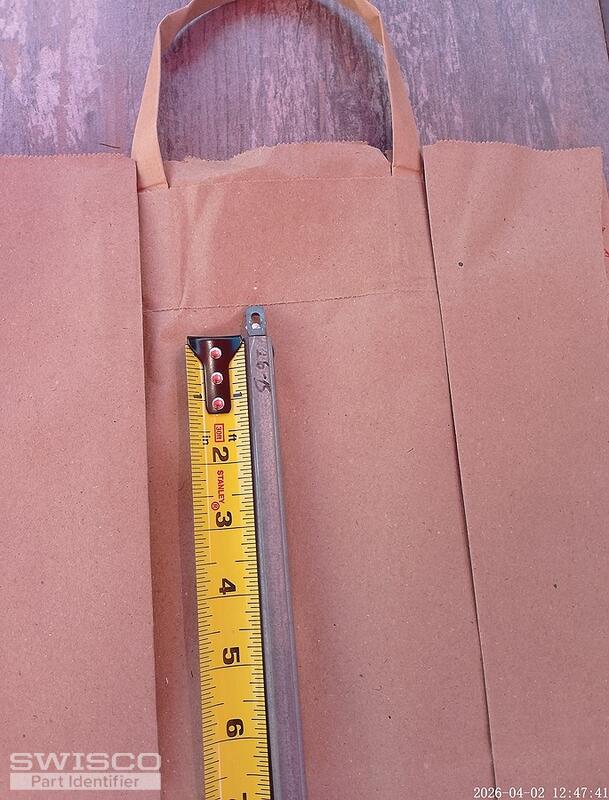

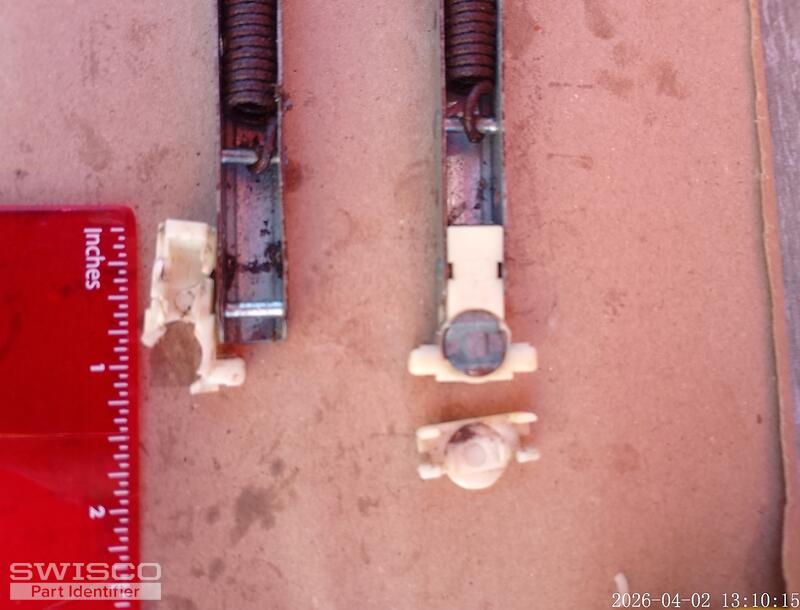

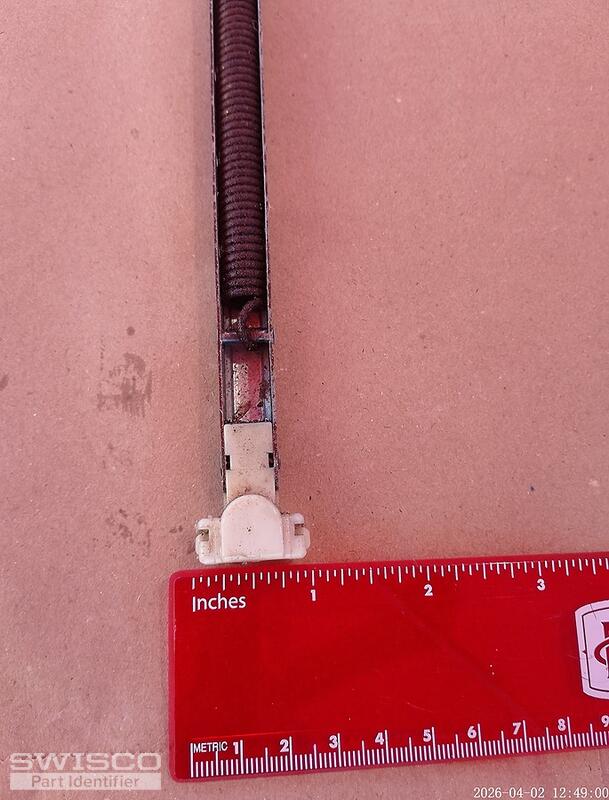

Here are the pictures with the 26B balances, one with the broken shoe, the other still unbroken.

Thank you!

5 user uploaded images

Casey from SWISCO

Apr 2, 2026 2:46 pm

We can supply these skinny ribbed balances with the 15-230 T-lock shoe attached and a 19-043 on top, but it will need to be a custom order. Review the shoe specifications below to ensure a good fit. We'll just need to confirm the number of balances you need, with the minimum being two.

Home Owner from Wilmington NC

Apr 3, 2026 3:43 pm

Thank for your answer!
I need two balances and tilt latch L and R(26-243A; 26-244A). How I will proceed to place a order?
Thank you!

Casey from SWISCO

Apr 6, 2026 10:16 am

We just sent over an order link and price quote for the custom balances. Note that the tilt latches will need to be added to the order directly from our website since they are stock items. Take a look and let us know if you need anything else.

Home Owner from Wilmington NC

Apr 6, 2026 6:05 pm

Thank you for your answer.
With hope they will fit on my window, I will place a order.
Thank you!

Casey from SWISCO

Apr 7, 2026 9:52 am

Great. As long as the specifications of the end fittings and .478" by .454" metal channel match yours, you should be good to go.

Home Owner from Wilmington NC

Apr 15, 2026 1:29 pm

Thank you!
The custom balances you recommended are the right size;
Also the tilt latches are a perfect fit.
Thank you Swisco Team!!!

Casey from SWISCO

Apr 15, 2026 3:02 pm

Great! We're happy to help and appreciate your business.
