Window track balance

Quick Learner from Sebastian, FL 32958

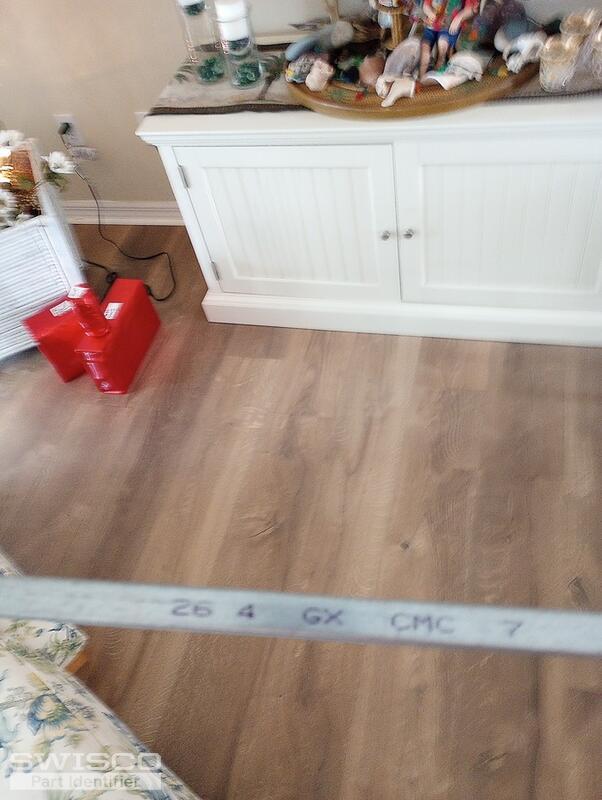

26 4 GX C
MC. 7
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

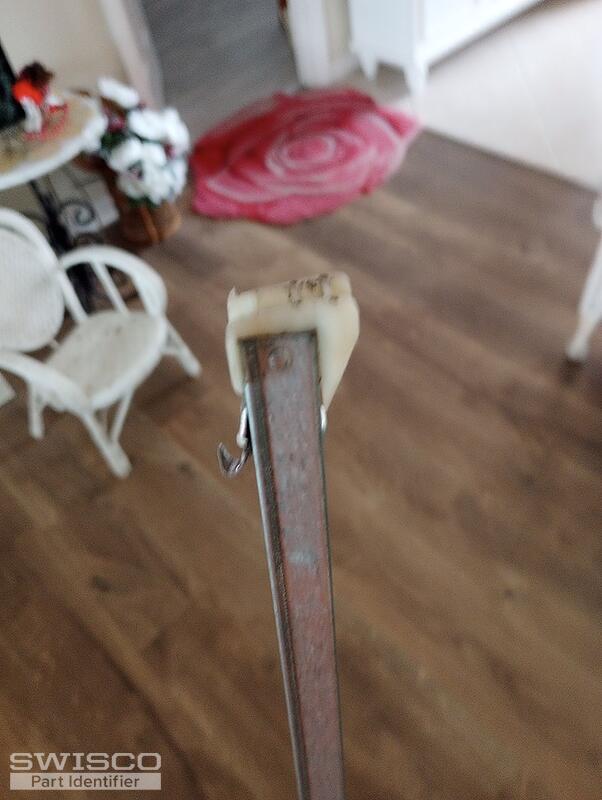

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Sebastian, FL 32958
Is there a top pice I can get that sits on the window ?
Casey
Casey from SWISCO
SWISCO
Expert

It sounds like you might be referring to the top sash guide that holds the balance in place. We may be able to help but we would need to see an undamaged guide removed from one of your windows, along with written-out dimensions, to compare to our inventory. Thank you.
