Quick Learner

Oct 4, 2022 1:06 pm

Weather stripping disintegrated. Needs to be replaced with a similar product I need help deciding what product to get.

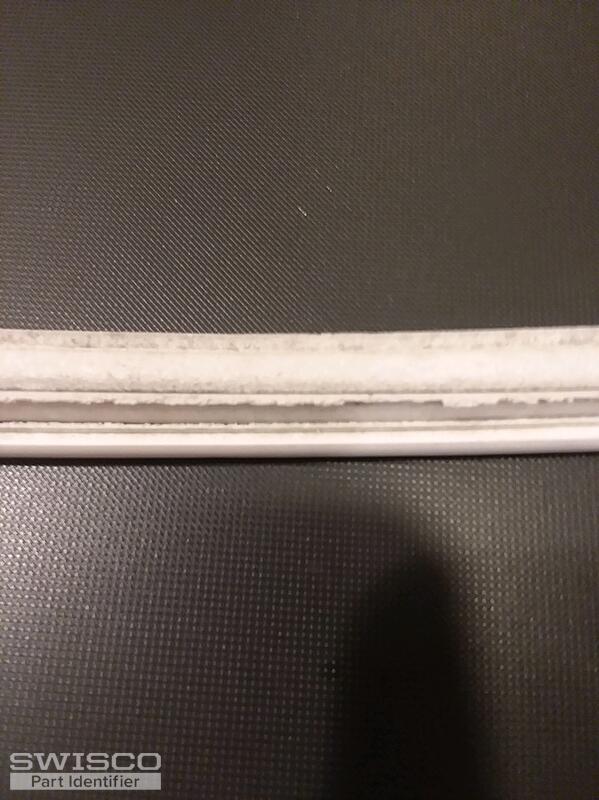

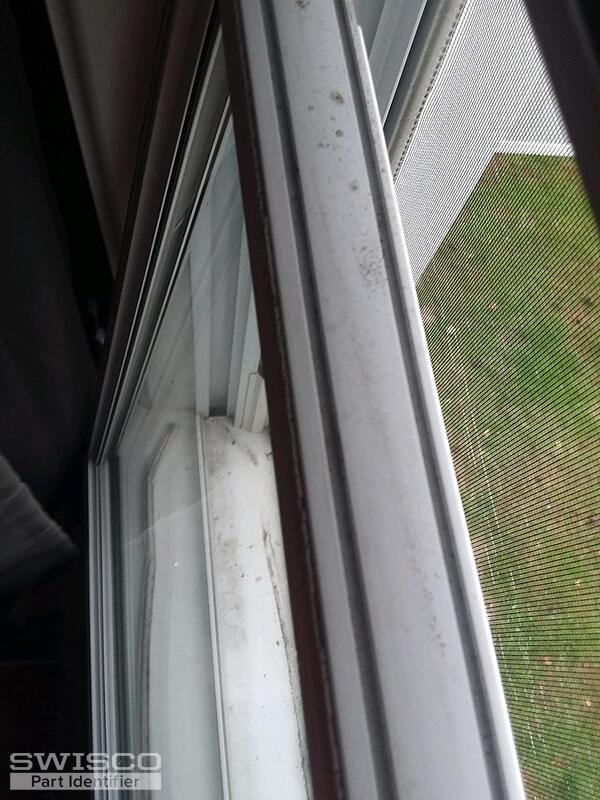

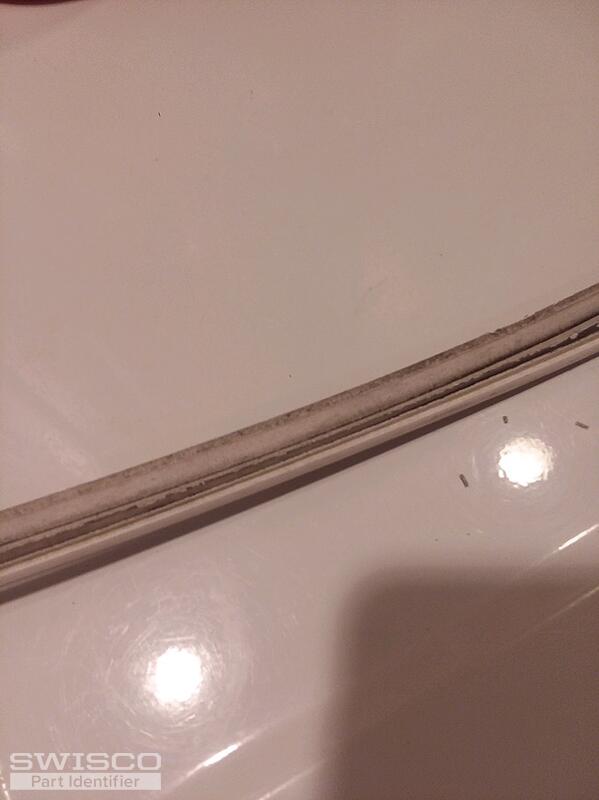

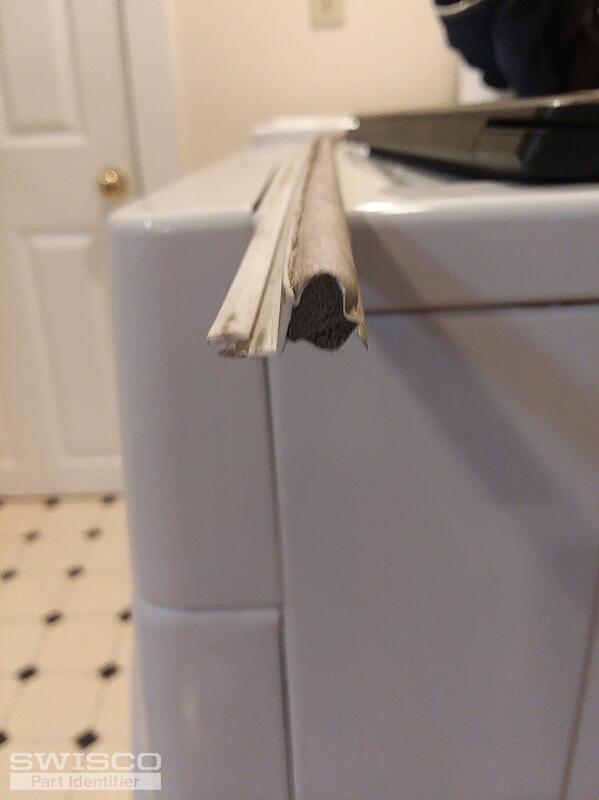

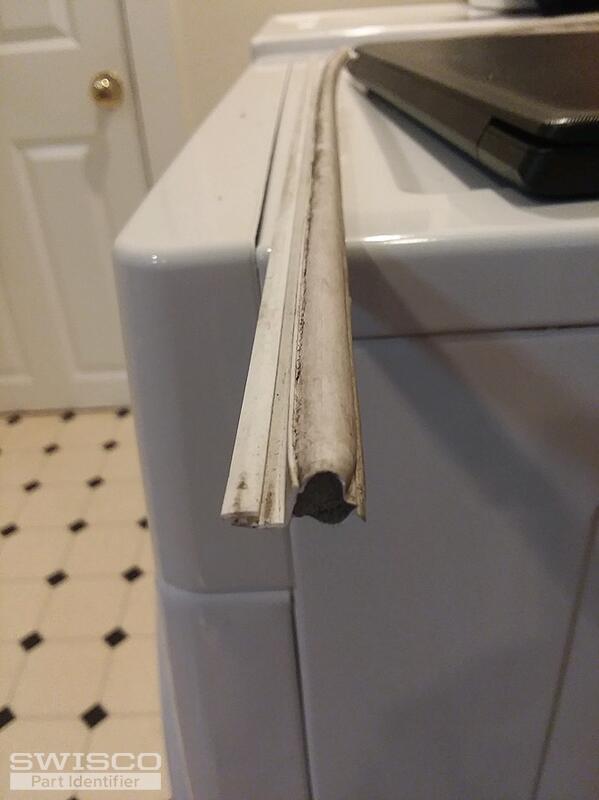

5 user uploaded images

4 Replies

Tom from SWISCO

Oct 10, 2022 2:11 pm

Thanks for reaching out to us. Based on your photos, I believe you have a match for either our 58-171 or 58-182, depending on dimensions. Look over our measurements and see what you think.

Profile of 58-182

Profile diagram of 58-171

Quick Learner from Tennessee

Oct 11, 2022 2:52 pm

The slot on the bottom of our window is 1/8 inch therefore we need a product with a smaller tab

Tom from SWISCO

Oct 12, 2022 8:32 am

We unfortunately don't have a version of this weatherstripping with a smaller tab. The .187" 58-182 is the smallest option we can provide in this style.

I would triple check that size just to be sure. I've never seen a seal like this with only a 1/8" slot, and even just eyeballing your photos I feel that your seal is bigger than that. Make sure that you're measuring the end of the slot where the seal actually inserts, not the gap that runs along the edge of the sash. That gap won't represent the full size of the opening since it's partially enclosed by the frame.
