Window will not stay open

Quick Learner from Saint Augustine, FL

Apr 21, 2020 12:35 pm

Number displayed is 29 3 LT CMC 2. I need 1 set

Number displayed is 29 6 LT CMC 2. I need 1 set

The window uses sash guide 18-166: 5/8" Top sash guide, kinko

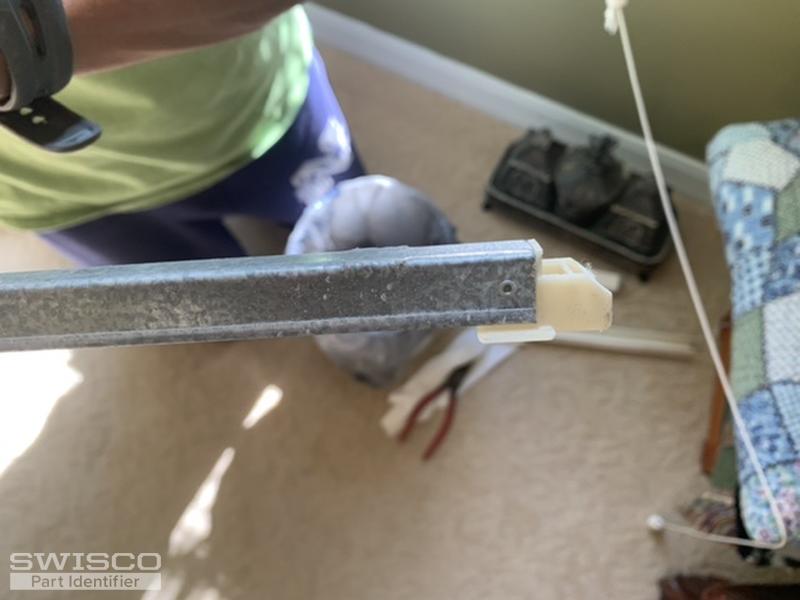

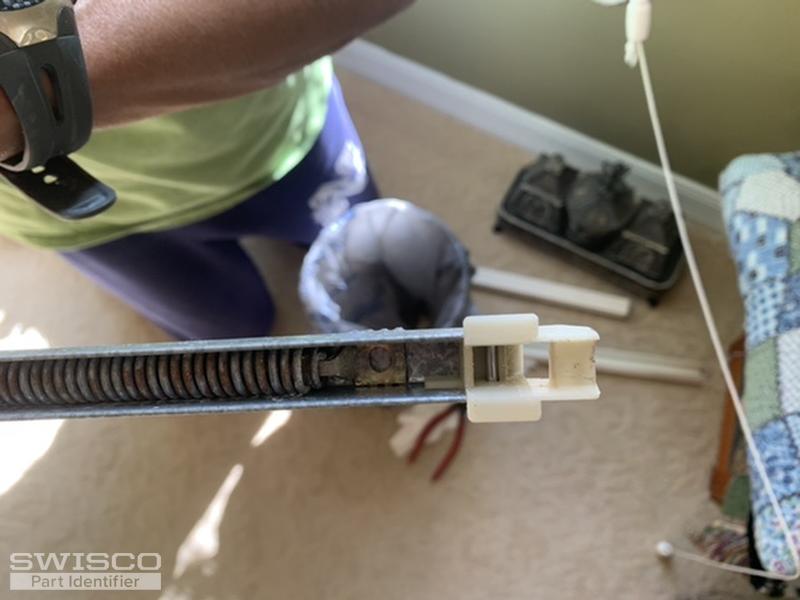

5 user uploaded images

4 Replies

Tom from SWISCO

Apr 22, 2020 2:12 pm

Based on your photos, I recommend either our S380-30 or S385-30 channel balance. The only difference between them is the depth of the bottom shoe, so you'll have to measure yours and refer to our dimensions to confirm the better choice.

Quick Learner from Saint Augustine, FL

Apr 22, 2020 6:06 pm

I measured the depth. It is 1" deep. S380-30 is the right fit. Thank you. I'll place the order.

But wait!!!!
I provided the numbers printed on the channel. The chart your site provides lists four digits not three. For example my numbers are 29 2 & 29 6. So should I order 2920 & 2960?

Tom from SWISCO

Apr 23, 2020 11:02 am

Great! I'm glad to hear that the S380-30 is a match. As for your stamps, your analysis is correct. A stamp of 29 2 corresponds to our 2920 option and 29 6 corresponds to our 2960.

Please let me know if you had any other questions. I'd be happy to clarify any other points.
