Tom from SWISCO responded:
October 18, 2022

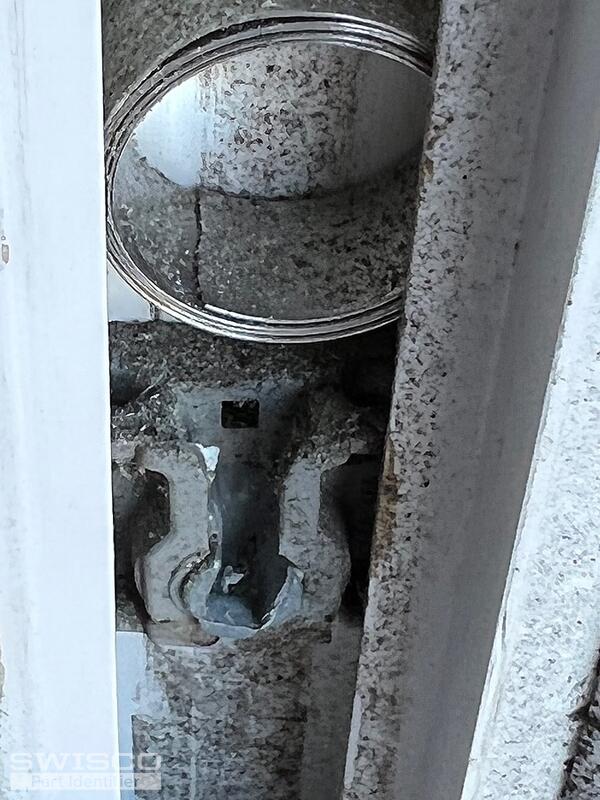

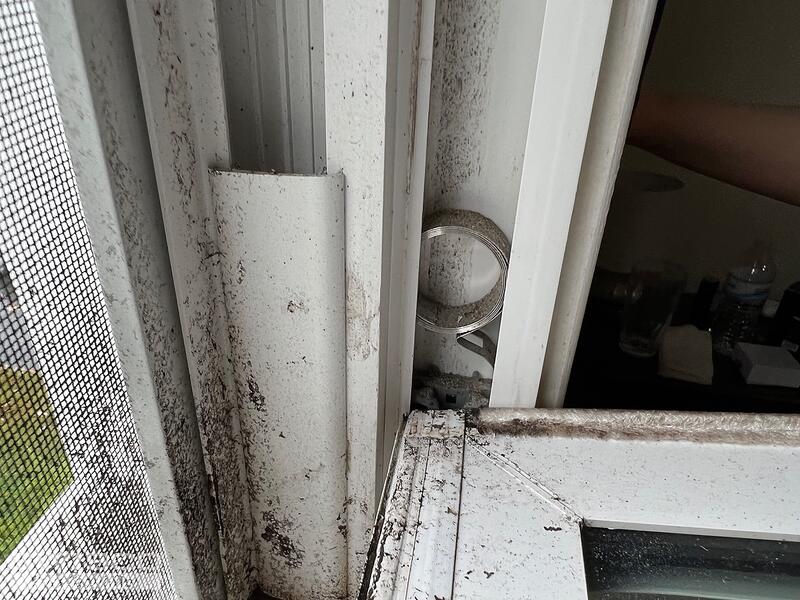

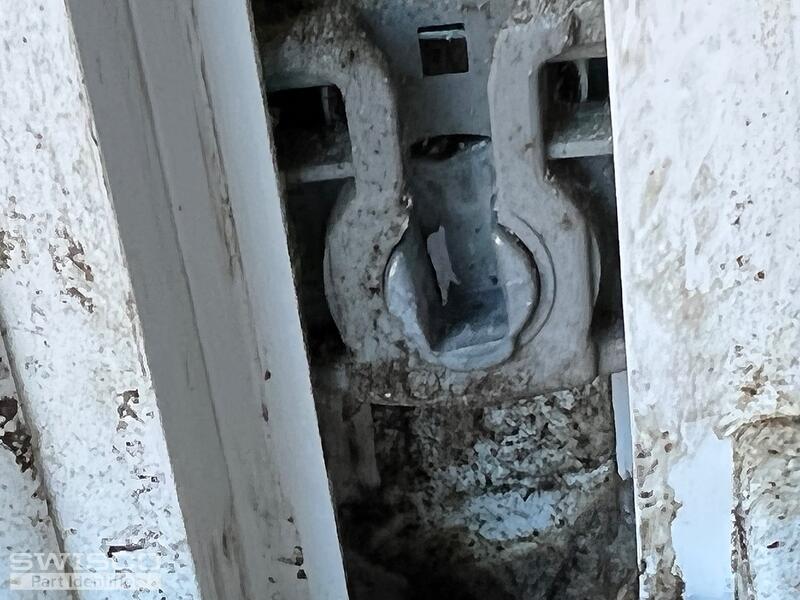

Hello, Rich. The window label unfortunately doesn't tell me what balances you have. I feel confident that we have a good match for this but I will need to see a clearer shot of the pivot shoe itself. If I can determine what the pivot shoe is, everything else should be fairly simple to line up. |
Tom from SWISCO responded:
October 28, 2022

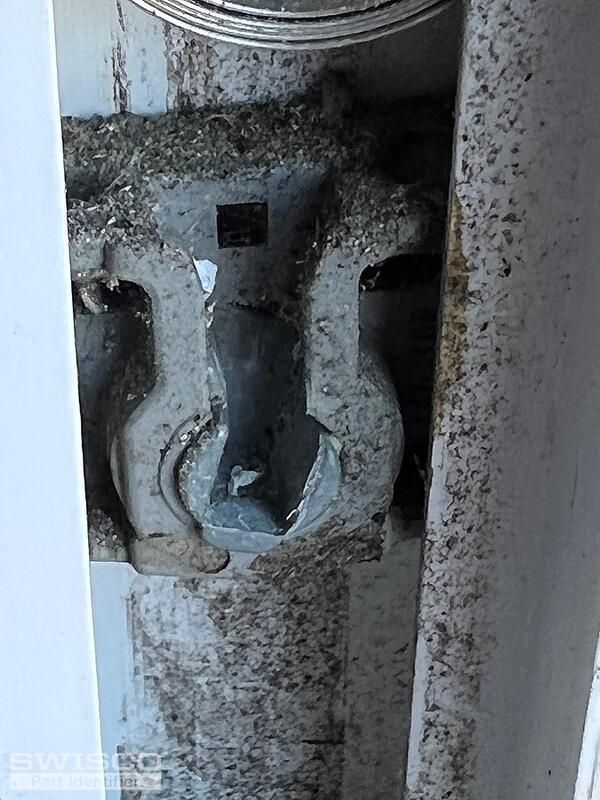

Thanks, Rich! Your pivot shoe looks like a match for our 15-191 which is designed to use the Series 160 coil springs. Look this part over and let me know if you had any questions. |
Tom from SWISCO responded:
October 28, 2022
You would only need to replace what's broken so you can re-use your old coil springs if they are in working order. |
Tom from SWISCO responded:
October 31, 2022
There is no average sash weight, unfortunately. These aren't quite that simple. When dealing with the Series 160 especially, the sash could range anywhere from 6 to 60 pounds. Coil balances are also fairly precise. The only way to determine what you need is to get the stamp off the old spring or to weigh the sash. It's not feasible to guess in any case related to window balances. |
Tom from SWISCO responded:
November 1, 2022
Thank you! So, the rule of thumb is to divide the sash weight by how many springs support the window. In your case, that's two; one on each side. I think your best bet in that case will be the S160-7 which carries 7.5 pounds per spring. That will give you 15 pounds of total support. That's half a pound over your sash weight but I don't think you'll notice the difference. |
Tom from SWISCO responded:
November 1, 2022
You're very welcome, Rich. Please let me know if we can be of any further assistance! |
Tom from SWISCO responded:
November 7, 2022
I'm glad to hear it! Thanks for the update and good luck on all future projects. We're always here to help if you needed it. |
