Windown Handle : SWISCO.com

Home Owner from NY

May 16, 2021 9:00 am

Help Plese. The window I'm sure its Truth

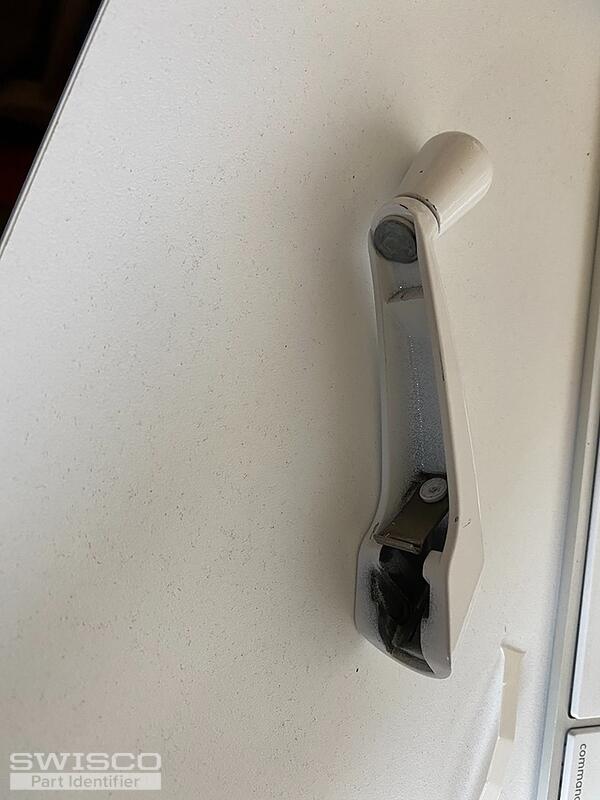

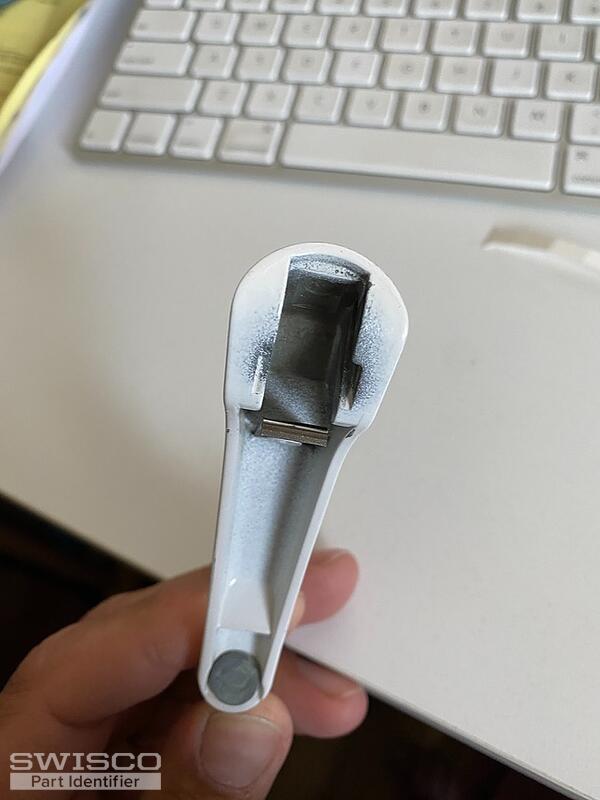

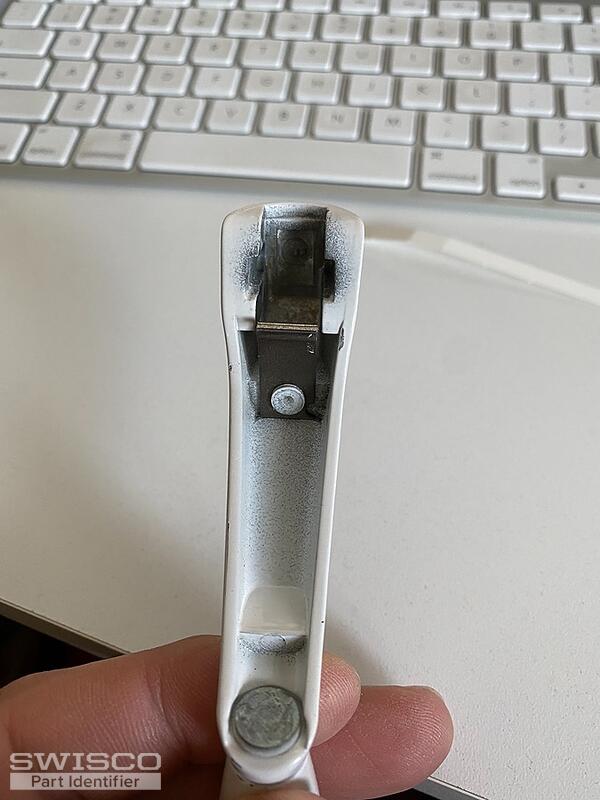

3 user uploaded images

7 Replies

Emily from SWISCO

May 18, 2021 2:08 pm

Hi there!

Can you show us a photo of your operator with the window open so that the arms that operate the sash are fully visible? That will help us determine which handle you'll need.

Thank you!

Home Owner from NY

Aug 8, 2021 3:51 pm

hopefully this helps.

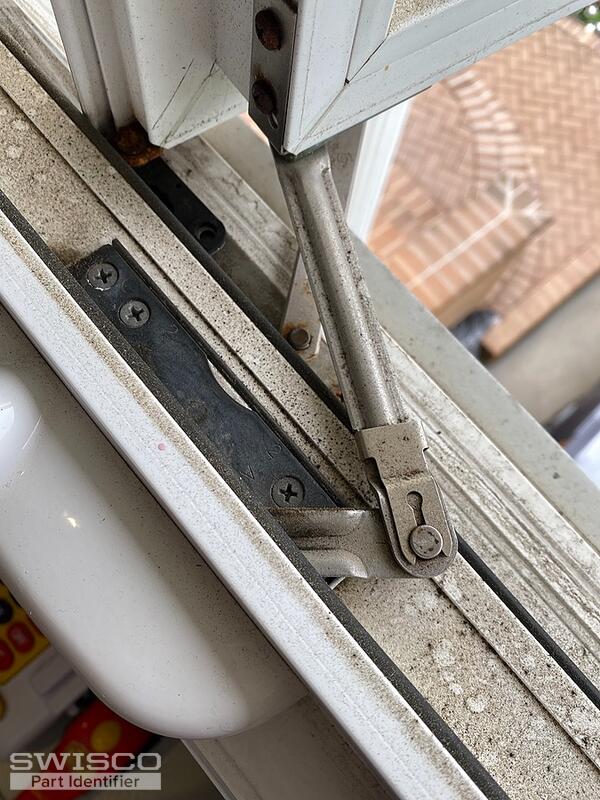

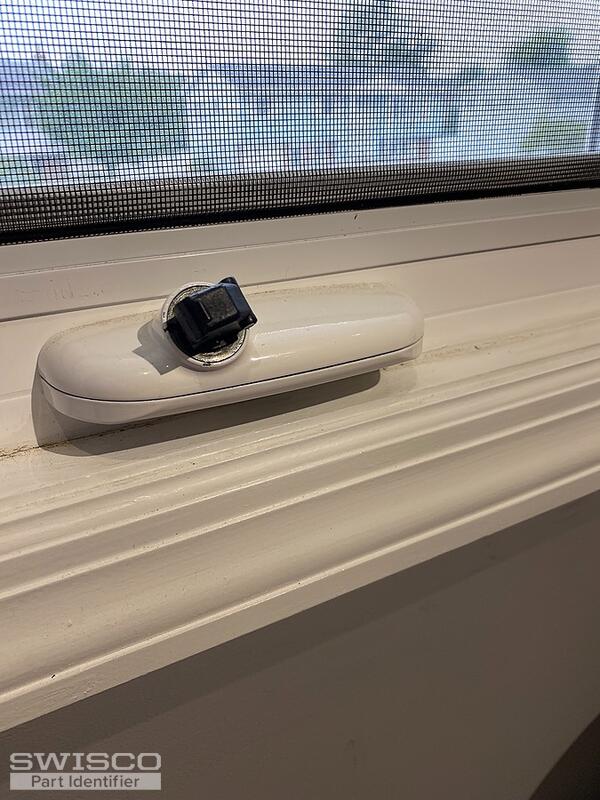

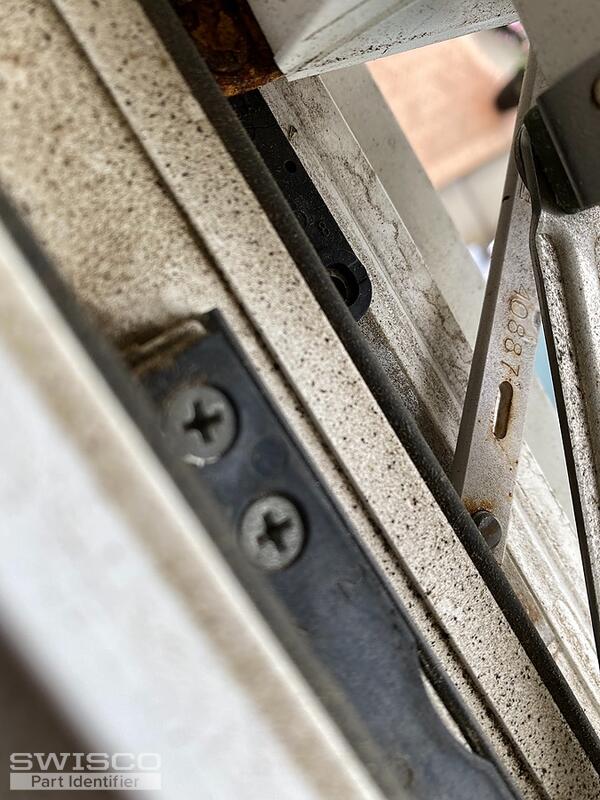

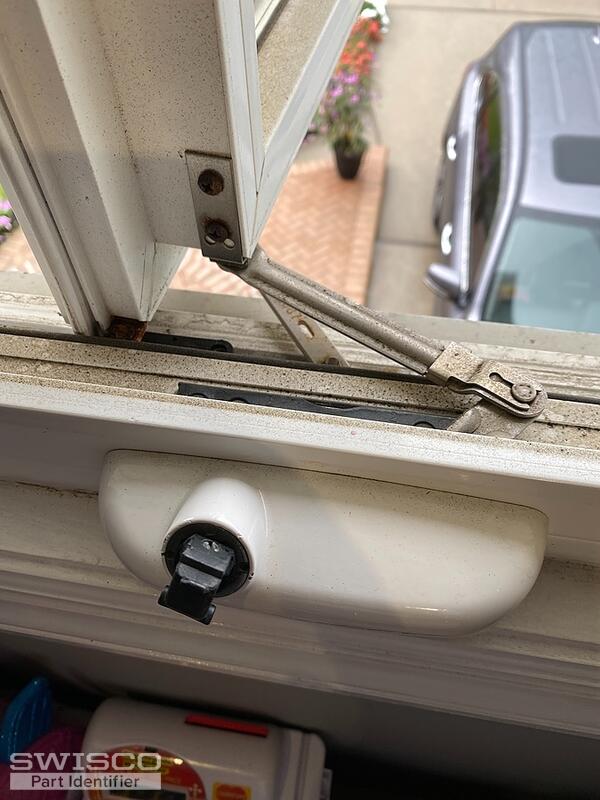

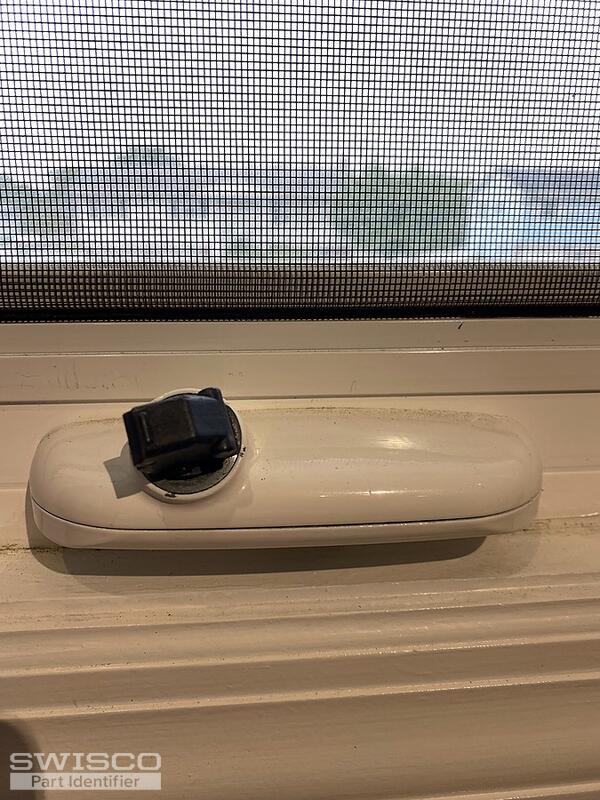

5 user uploaded images

Emily from SWISCO

Aug 10, 2021 8:23 am

Thanks for the additional pictures!

It looks like you have the 39-091 and 39-092 operators, which uses our 39-224 folding handle with a 5/16" hex gear bore. Look it over and see what you think.

Home Owner from NY

Aug 10, 2021 8:43 am

Hi, That's wrong , look at my original post the handle isn't like that at all. It's not a circular entry point. I'm not looking to change the whole pieces I just need a new handle

Home Owner from NY

Aug 10, 2021 9:49 am

im sorry you are right didnt realize that black piece comes out im gonna order it now

Emily from SWISCO

Aug 11, 2021 8:39 am

No worries! If your dimensions match up to ours, you should be good to go. If you have any future hardware questions just let us know!
