Windows balance parts

A handy person says:

Hi this is Martin

This is the part which I need

My client has 5 windows , each one has 2 of these

The balance size is 22 inches

I checked your website but not successed

Please let me how much is each and how many days it take to get

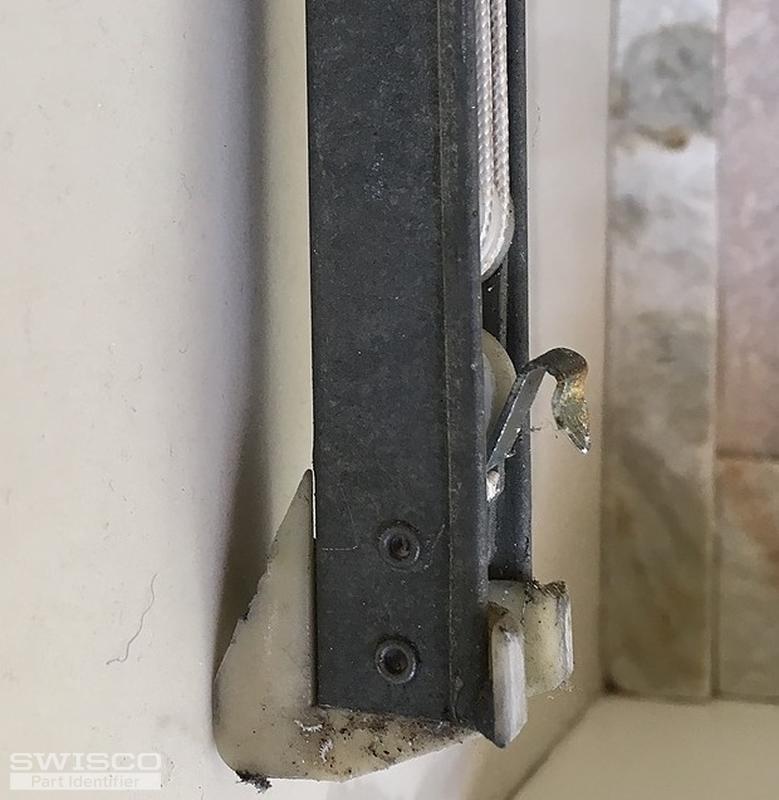

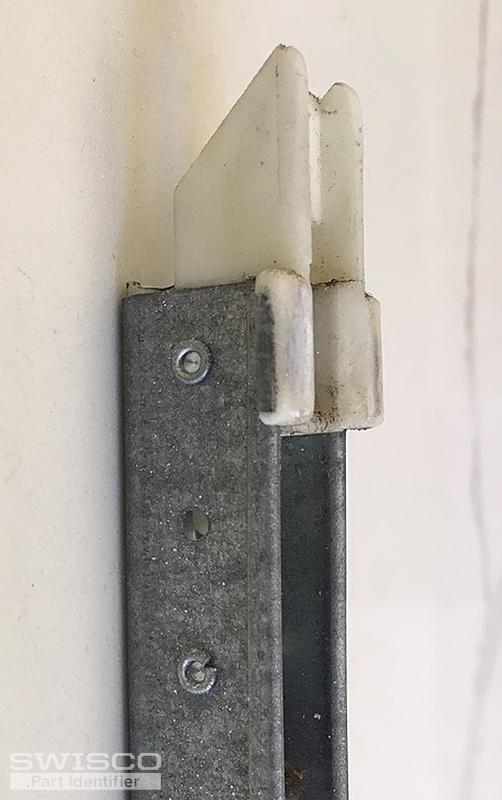

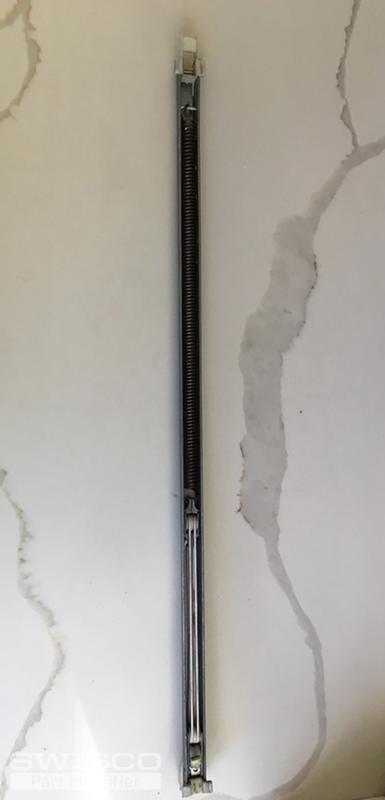

Thumbnail of the uploaded file named ACEA82EF-6696-462A-B033-148131A4D361.jpeg
Thumbnail of the uploaded file named 916E5DEE-1235-42E0-96CE-C6BBC94E3664.jpeg
Thumbnail of the uploaded file named D7A1EC02-E5B1-48AD-897D-A1AEAA69385E.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-22 or S385-22 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to read the stamp number off of the back of the balance to choose the correct spring strength option for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
