Channel Balance ID

Handy Person from 46012

Jun 15, 2020 4:41 pm

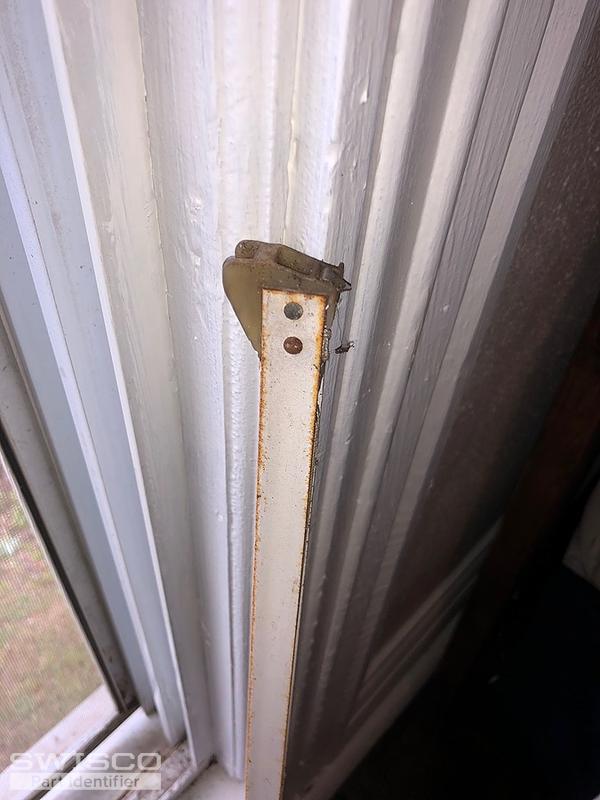

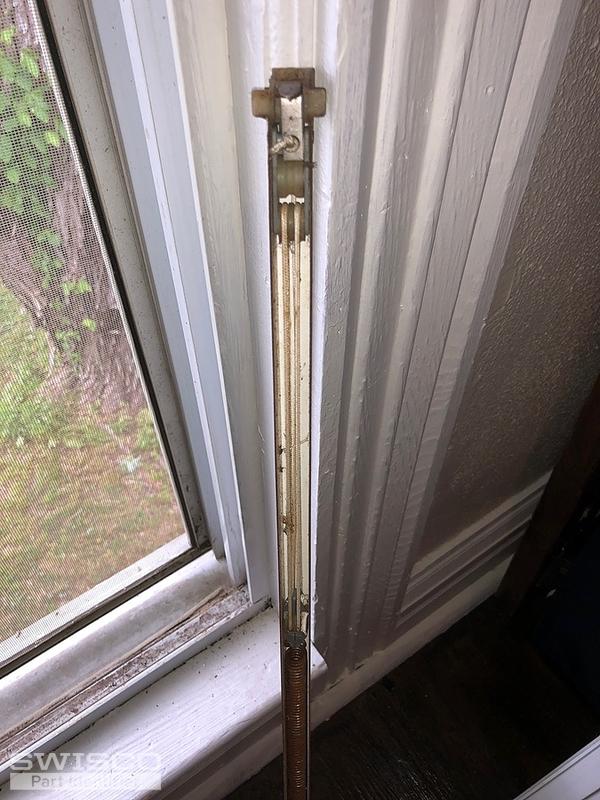

I have 2 of these windows that are falling out because there is only one balance on them. Can you help me figure out what I need to repair these please? They wont stay open and you can simply pull them out without any effort. Thank you.

Heath

5 user uploaded images

6 Replies

Bob from SWISCO

Jun 18, 2020 1:32 pm

This looks possibly like a Series 350 Channel Balance. You'll need the length of the metal channel, as well as the stamp code on the metal channel. See if the video below aids in removing and replacing these balances.

Handy Person from 46012

Jun 26, 2020 2:45 pm

The code stamped on one of them is 3020V2. They are 33 inches long.

Bob from SWISCO

Jun 26, 2020 3:45 pm

If the metal channel, not including the nylon fittings, is 31" long, then see the S350-31. You'll need a stamp option of 3020.

Handy Person from 46012

Jun 26, 2020 6:12 pm

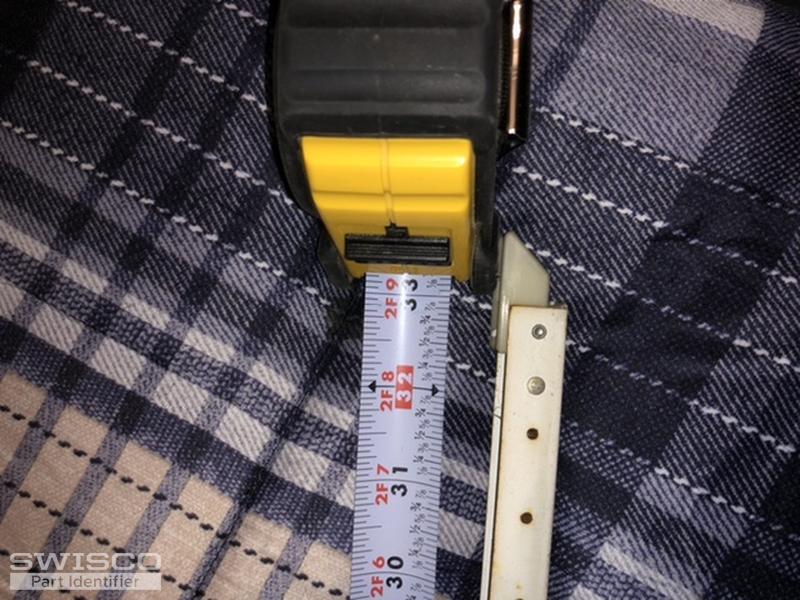

The middle channel is 33 inches not counting the plastic ends.

1 user uploaded image

Bob from SWISCO

Jun 29, 2020 9:15 am

If the metal channel is 33" long, then see the S350-33. A stamp code of 3030 would be unusual for a 33" balance. You'll need to obtain the exact weight of the window sash, then match that exact weight with one of the weight ranges listed alongside each stamp option on the shop page.
