Windows storm latches and corner

Home Owner from Broken Arrow, Oklahoma

Apr 17, 2020 9:55 am

Good morning,

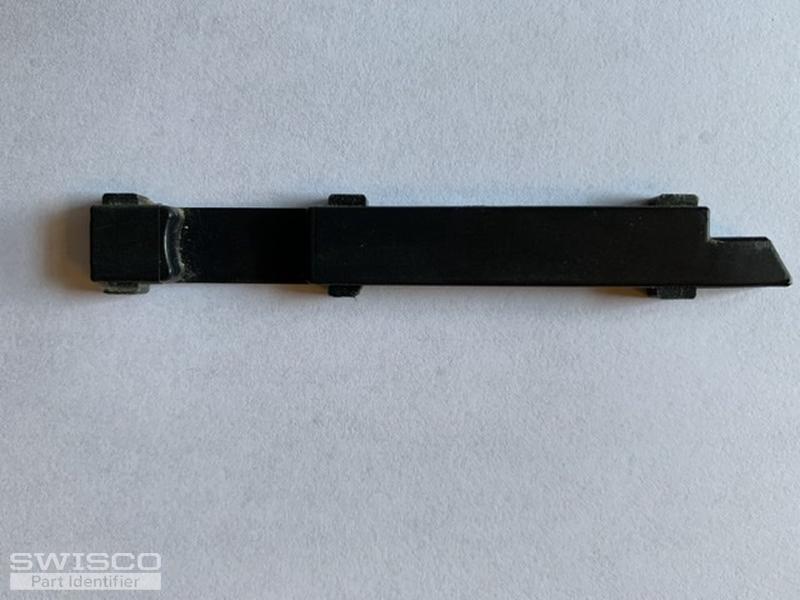

Please see attached, and help me find the right parts. I believe the length of the latch is almost 4 inches.

Thank you for your help,
Rami

3 user uploaded images

6 Replies

Tom from SWISCO

Apr 20, 2020 11:42 am

Hi, Rami. We may be able to help, but I need more information. For the latch, can you show me a picture of the other side? Can you also give me more detailed dimensions? Length doesn't really matter, but width and thickness are essential.

For the corner pivot, we need to see what it looks like out of the frame. I will also need the width and thickness of the legs, which you can only measure once it's out anyway.

Home Owner from Broken Arrow, Oklahoma

Apr 23, 2020 10:05 am

Hi Tom,
Thank you for your prompt response.
The tip of the latch measurements are:
Length:1/2"
Height: 1/4"
Width: 3/16"

Corner:
1 9/16"x1 3/16"

Thank you,
Rami

2 user uploaded images

Tom from SWISCO

Apr 23, 2020 10:24 am

Thanks, Rami. The best matches I was able to find for your latch and corner were our 91-054 and 95-236, respectively. The dimensions are close but not exact. Carefully go over the pictures and measurements we show for each part to see if they line up.

Home Owner from Broken Arrow, Oklahoma

Apr 23, 2020 4:39 pm

Hi Tom,
It seems what you have suggested matches what I am looking for. I went ahead and placed an order.
Thanks for the help,
Rami

Tom from SWISCO

Apr 24, 2020 7:50 am

Awesome, I'm happy to hear it! Thank you very much for the order and let me know if you need anything else.
