Windows won't crank shut

Home Owner from Elgin, il

Feb 6, 2021 4:06 pm

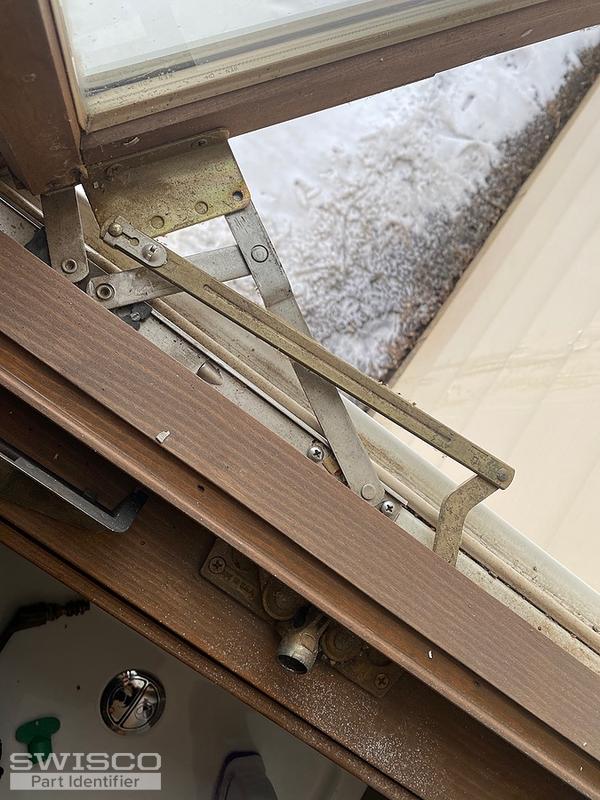

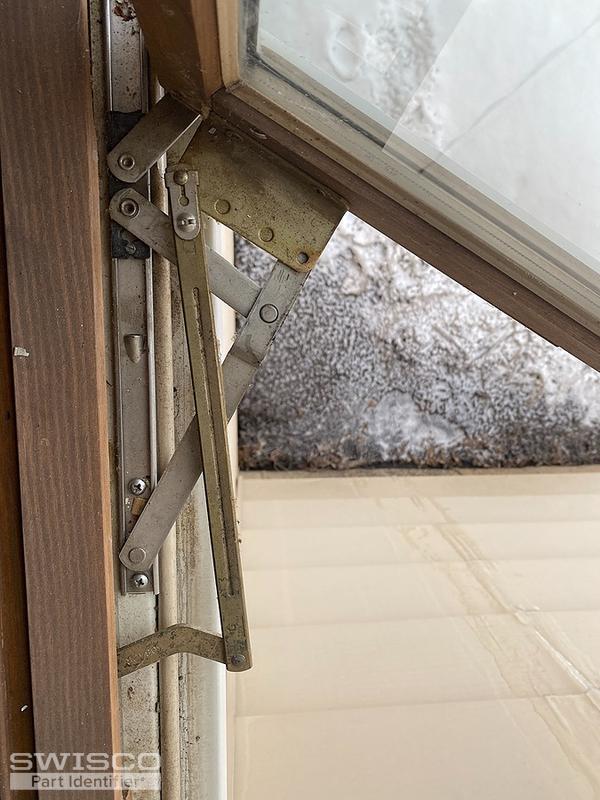

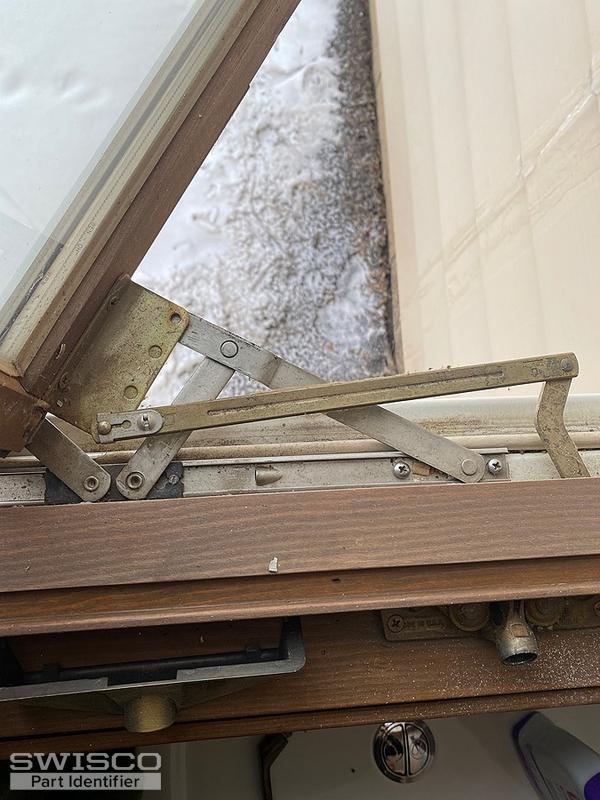

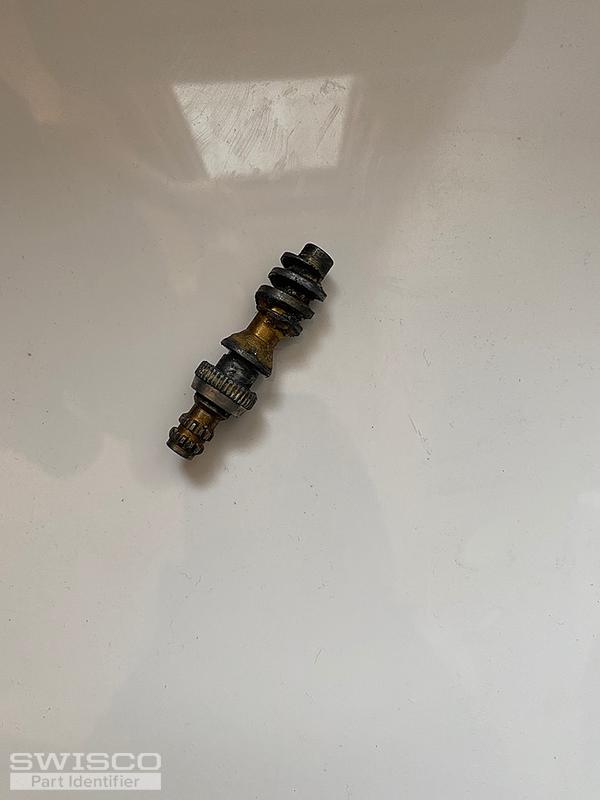

These are photos of one window in our house that will not crank shot properly. We have some that swing open right and some that swing open left. Can you tell us the replacement part numbers we would need to replace the item that is possibly stripped?

I am a homeowner, but currently have a contractor/handyman helping out who could make this repair or swap the part out.

3 user uploaded images

4 Replies

Casey from SWISCO

Feb 9, 2021 1:21 pm

Hello,

We'd be happy to help but we'll need to see a photo of the operator with the window open so that the arms that move the sash in and out are fully visible. Thank you!

Home Owner from Elgin, il

Feb 11, 2021 12:16 am

Here are the pictures of one of the single windows.

4 user uploaded images

Casey from SWISCO

Feb 11, 2021 10:28 am

Thank you. Your operator looks like our 39-381 and 39-382 but the link arm in your photo looks like it might be on the longer side. Take a look and see how the dimensions compare.
