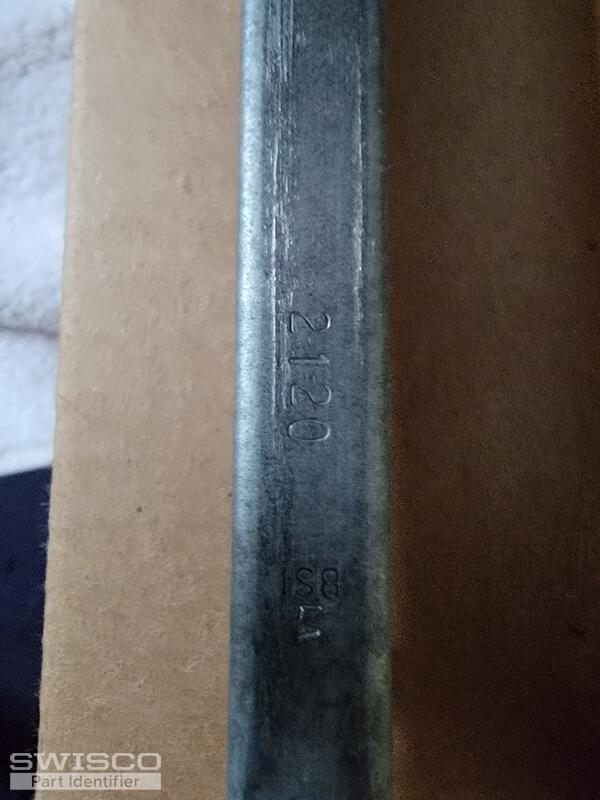

Winged Window Channel Balanaces Stamp 2120

Quick Learner from CA

Jul 24, 2023 10:45 am

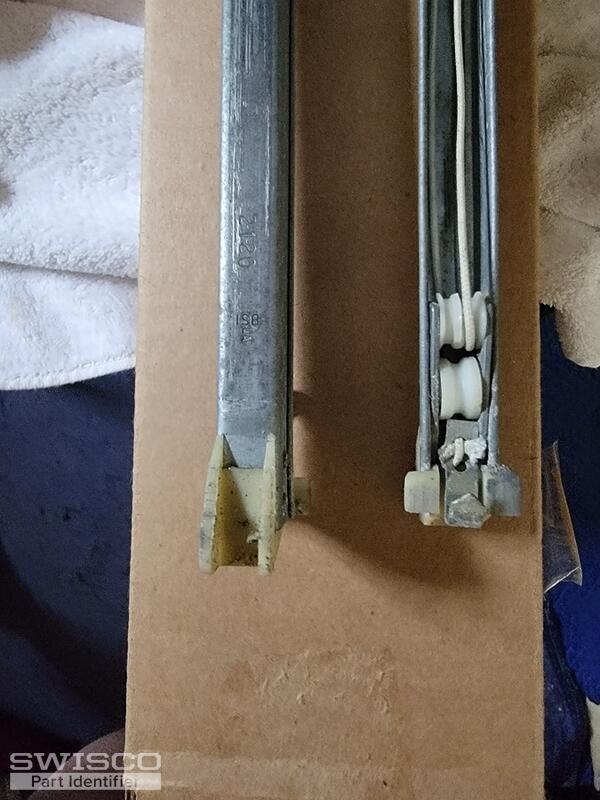

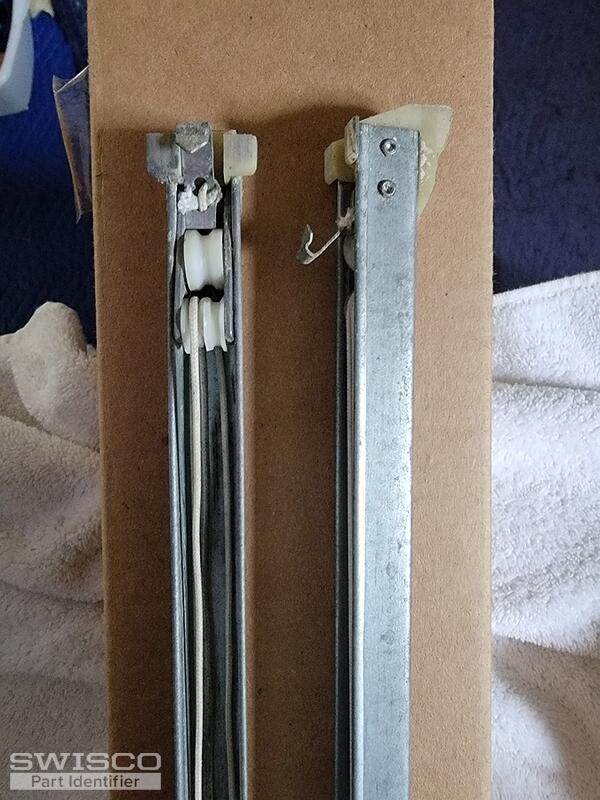

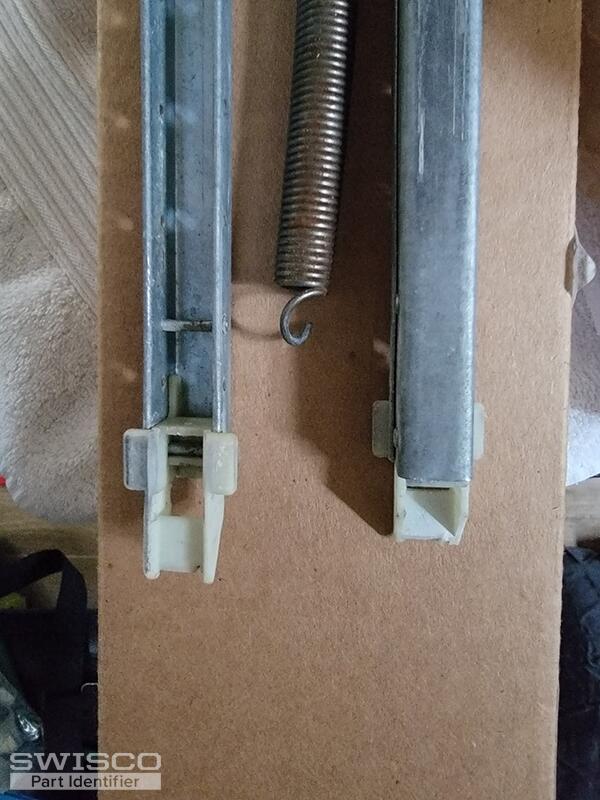

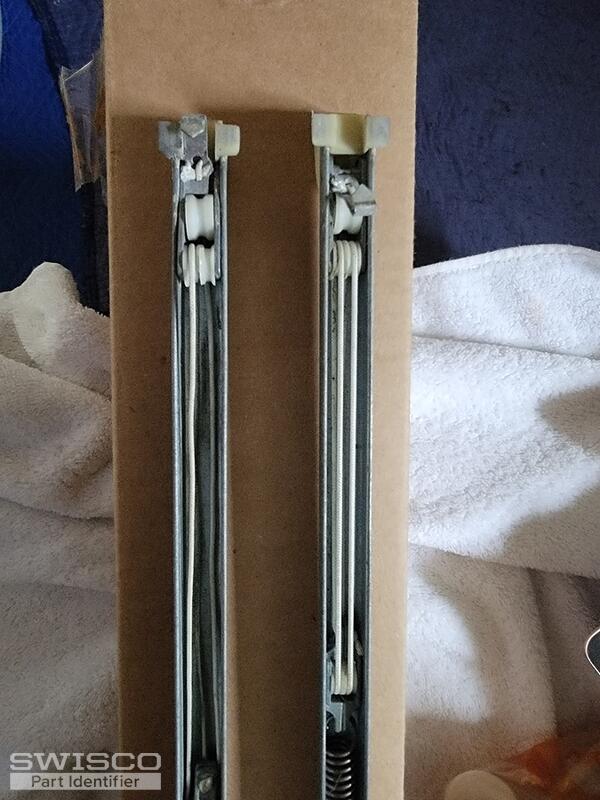

Please advise that the 22" Series 385 Channel Balance is a match based on the attached photos.
Metal = 22 inches long
Winged Top and Shoe
8-12 lb sash

20230724_073951

20230724_073956

20230724_074034

20230724_074043

20230724_074058

5 user uploaded images

1 Replies

+ Add a Comment

Emily

Emily from SWISCO

Jul 26, 2023 9:56 am

SWISCO

EXPERT

Hello!

Thanks for reaching out to us. I'm afraid I can't confirm if the Series 385 is what you need. Is the bottom shoe depth 1-3/32"? If so, you would want the Series 385. However, if it's 1" deep then see the Series 380 instead. It's hard to get accurate dimensions from photos so you'll have to measure the shoe as shown in the image below.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.
