Wood Casement Crank Handle

A home owner from Schaumburg, IL says:
August 26, 2019

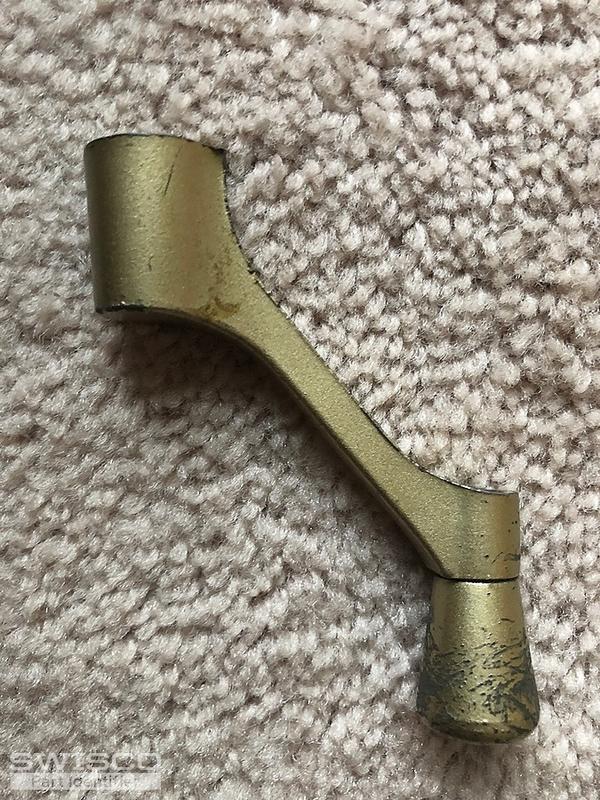

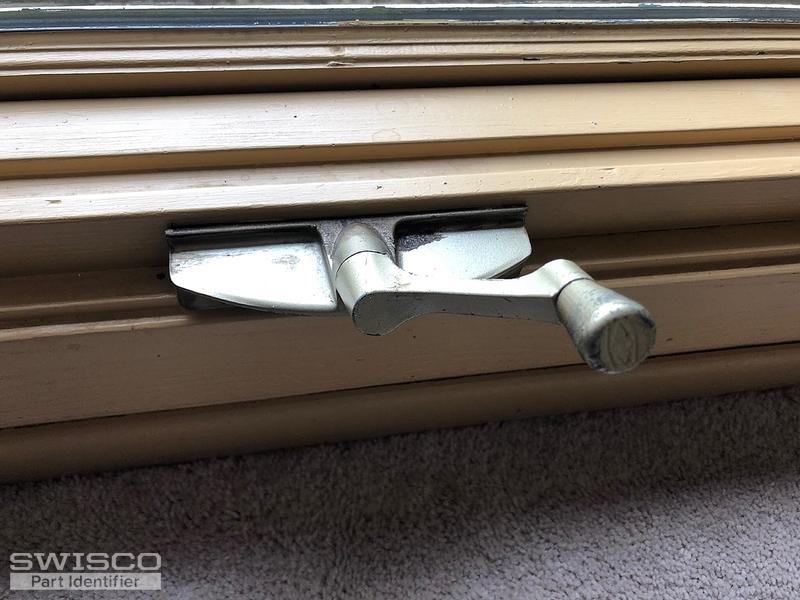

Our house we built around 1975 or so. The front windows have wood casements and we need replacement crank handles. The pictures show the antique brass casement and handle. It looks like 39-114 is a match but we believe the bore/spline is 3/8" and not 11/32". Thoughts?
Thumbnail of the uploaded file named 03000E9B-DA57-4966-AD51-086983764B5B.jpeg
Thumbnail of the uploaded file named 7BABDA3C-2A18-4A0B-A6DC-68DD9DE26416.jpeg
Thumbnail of the uploaded file named 3C6F1DEA-871B-49F9-9CEC-6D8580AC7C3E.jpeg
Thumbnail of the uploaded file named 85B175E5-BC4B-4242-974B-FBF6CCAF63F5.jpeg
Thumbnail of the uploaded file named 78DDDE39-948E-4123-80F5-188E04E89FBE.jpeg
Profile picture of Bob
Bob from SWISCO responded:
August 30, 2019

Thanks for writing in. Good eye regarding the 3/8" bore size. If that's the case, see our 39-104 instead. Look it over and see if you think this could work for you.
Handle with a 3/8" Gear Bore
Handle with a 3/8" Gear Bore
39-104
$4.90
