Wooden Sliding Door Mortise Lock

A home owner from Naples Maine says:
August 11, 2022
need to replace a wooden sliding glass door mortise lock. Only markings are DNS, Miami FL. Issue am having is finding one with the larger screw holes.
Thumbnail of the uploaded file named image0.jpeg
Thumbnail of the uploaded file named image1.jpeg
Thumbnail of the uploaded file named image2.jpeg

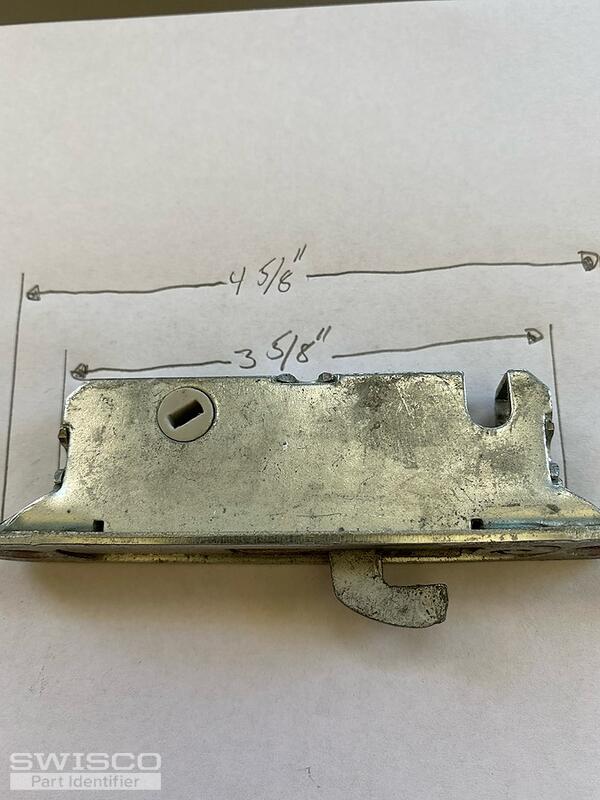

Thumbnail of the uploaded file named image3.jpeg
Profile picture of Tom
Tom from SWISCO responded:
August 15, 2022

Hello! Thanks for reaching out to us. Your mortise lock here has a very similar design to our 82-226. I think this may be what you want, since our dimensions are so close. The face plate is a little longer on ours but I don't think that will matter too much.

Alternate image for 82-226
Alternate image for 82-226
A home owner from Naples Maine says:
August 15, 2022
Thanks for the response. The distance between the mounting holes on 82-226 are about an inch further apart than the one I need to replace. Any other suggestions.
Profile picture of Tom
Tom from SWISCO responded:
August 15, 2022

I'm sorry for the confusion. I thought your diagram had the hole spacing labelled as 4-5/8". Was I mistaken?

The only operator we have that has a shorter hole spacing is our 82-218, at 3-11/16". However the design of the face is different and I'm not sure how well this would work in your case.
Mortise Lock, Round Face, 3-11/16"
Mortise Lock, Round Face, 3-11/16"
82-218
$11.70
Mortise Lock, 4-5/8"
Mortise Lock, 4-5/8"
82-226
$13.97
