Dear Sir / Madam,

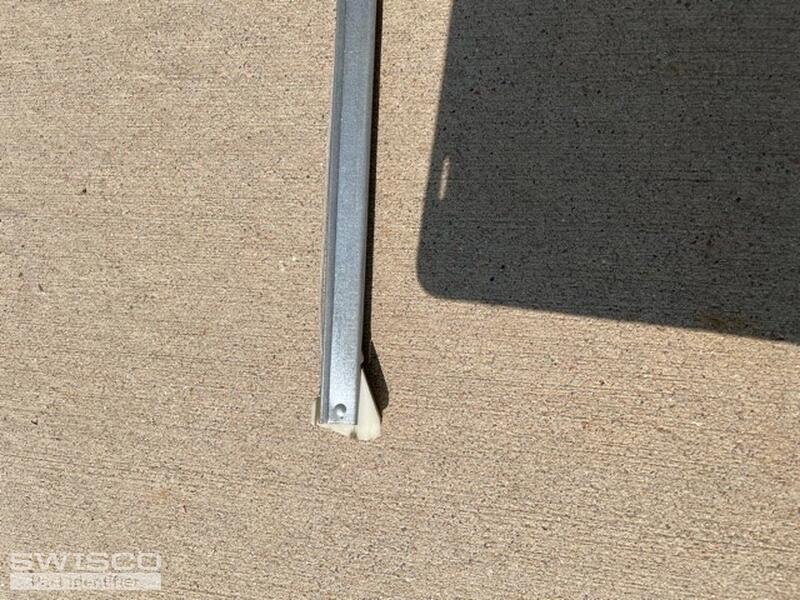

I require 4 Replacement Counterbalances. I have attached photos.
The Number Stamped on the side is:
32 5 GV CMC 2
The Lower shoe appears to have a wing etc and therefore I am assuming that I would require 32" (length of steel) and that the replacement model number would be a 350 Series ?
If you require any more information to be certain, please let me know
Vince
Casey from SWISCO responded:
September 29, 2021
Hello, With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3250 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns. Comparison of the S380 and S385 balance shoes.
|
