a few parts needed

Home Owner from California

May 31, 2025 6:02 pm

This is a downstairs wood window that needs both left and right cover pieces for the operator as shown
the labels say "truth"

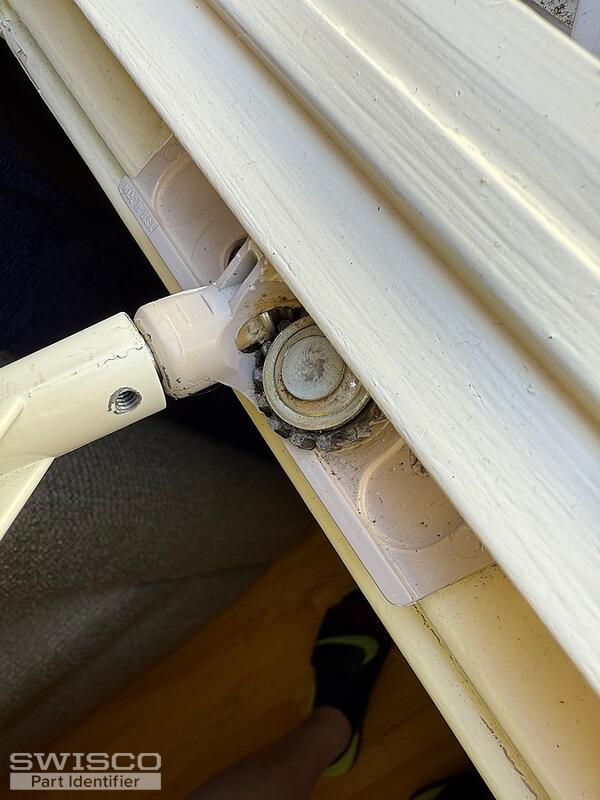

additionally, one of the cranks seems to have lost its threading with the gear so sometimes when closing the window the roller pops out from the track due to excessive force

4 user uploaded images

4 Replies

Bob from SWISCO

Jun 4, 2025 3:13 pm

Thanks for posting. This might be the 39-031 and 39-032 Dual-Arm Operators, but make sure the link arm dimensions match what we show below. Let me know if anything differs, at all. For new handles and covers, see the 39-114L and 39-107 sold separately.

Dimensions for 39-031

Home Owner from California

Jun 4, 2025 10:01 pm

they seem to be the same lengths as in the diagram.
Do you know if the folding handle/cover 39-107FK would fit this?

Bob from SWISCO

Jun 8, 2025 11:42 pm

Thanks for your patience during this busy season. Yes, the 39-107FK Cover/Handle kit will fit the 39-031 and 39-032. Let me know if you have further questions.
