abc window operator

A home owner from Griffin, GA says:
September 21, 2023

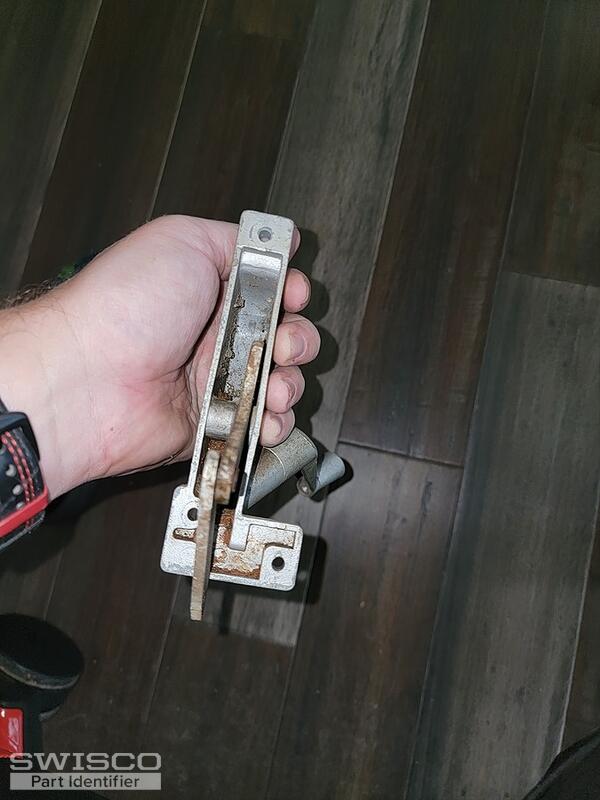

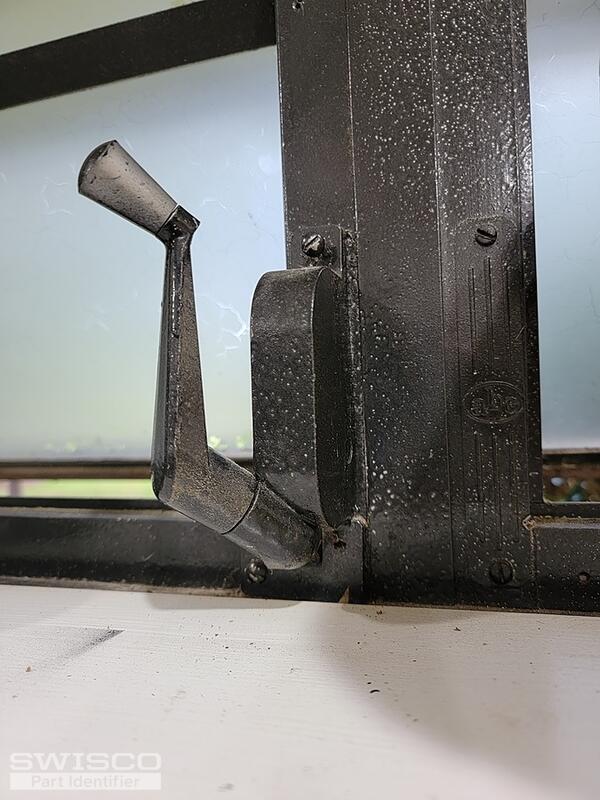

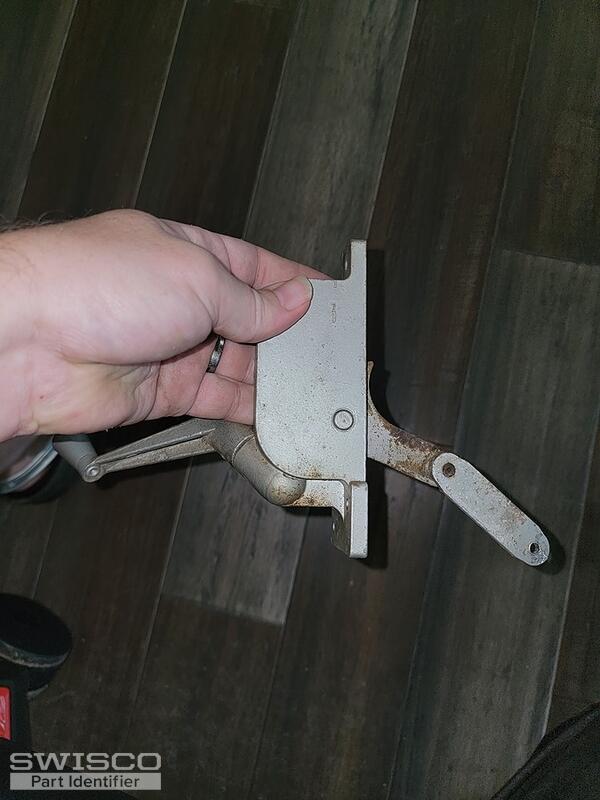

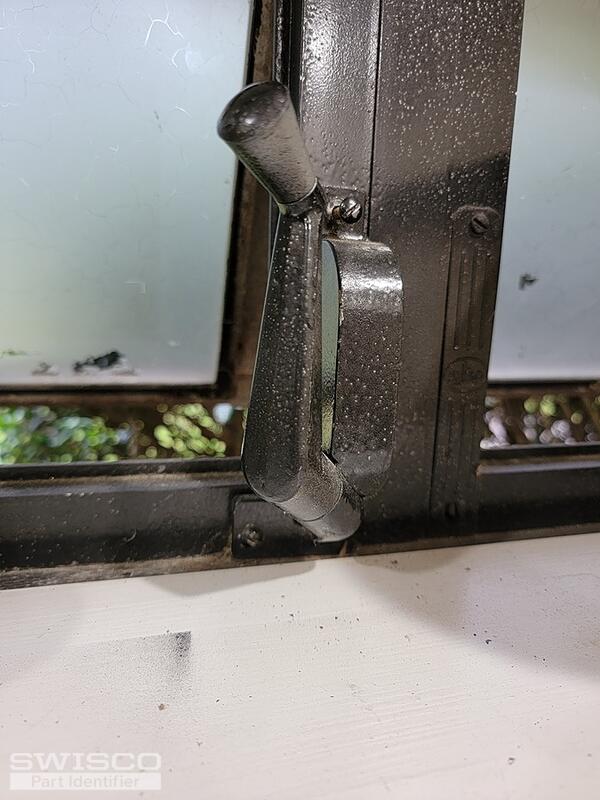

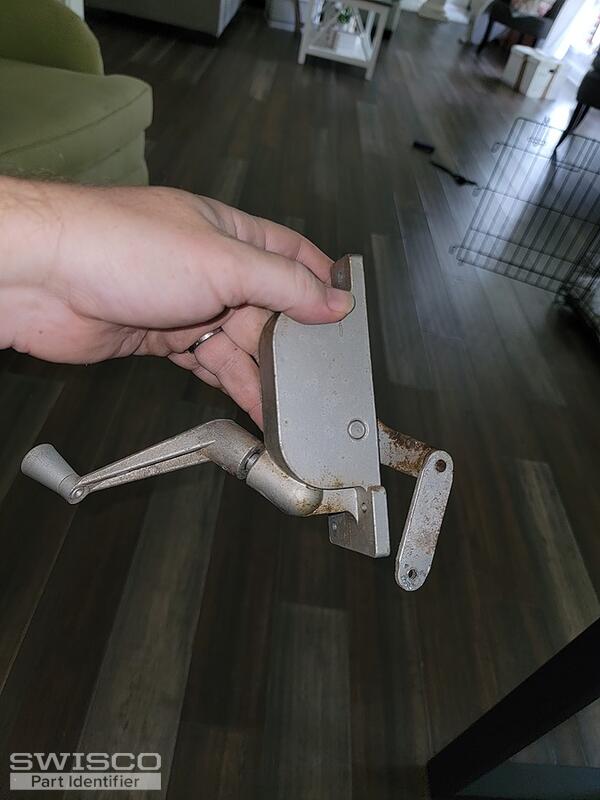

I need to potentially replace 6 of these operators on an older house. a few still work to a degree, but not many and they are very stiff. So much so that it would appear some have been forced previously to the point that they push back out of their mounts on the window. Any help would be greatly appreciated. They are 5 7/8" top to bottom. Bottom bracket is about 2" across. Secondary section of the arm is about 2 15/16" from end to end.
Thumbnail of the uploaded file named 20230921_081244.jpg
Thumbnail of the uploaded file named 20230921_081250.jpg
Thumbnail of the uploaded file named 20230921_093302.jpg
Thumbnail of the uploaded file named 20230921_093342.jpg
Thumbnail of the uploaded file named 20230921_093345.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
September 25, 2023

Hello,

I see that the cover plate on your window says "ABC", but looking in my older catalogs I could not come up with an ABC operator that matches yours. With that being said, take a look at the operators related on this page, along with the associated hardware and videos. Review the specifications shown on our product pages to see if you might be able to adapt either of these operators to work for your application. I would personally start by looking over the 39-432 operator that was used on Tucker awning windows. Thanks for posting.

Crossly Window Crank
Crossly Window Crank
39-055
$21.41
Crossly Window Crank
Crossly Window Crank
39-056
$21.41
Tucker Awning Window Operator, RH
Tucker Awning Window Operator, RH
39-432
$25.75
3/8" Shoulder Screw, 5/16"-18 Thread
3/8" Shoulder Screw, 5/16"-18 Thread
33-067
$1.10
Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
Shoulder Bolt Bushing
Shoulder Bolt Bushing
33-207
$0.85
#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
How to Replace an Awning Window Operator [1080p]
How to Replace an Awning Window Operator [1080p]
VIDEO
WATCH >
