alpine window balance replacement

Question

Hi,

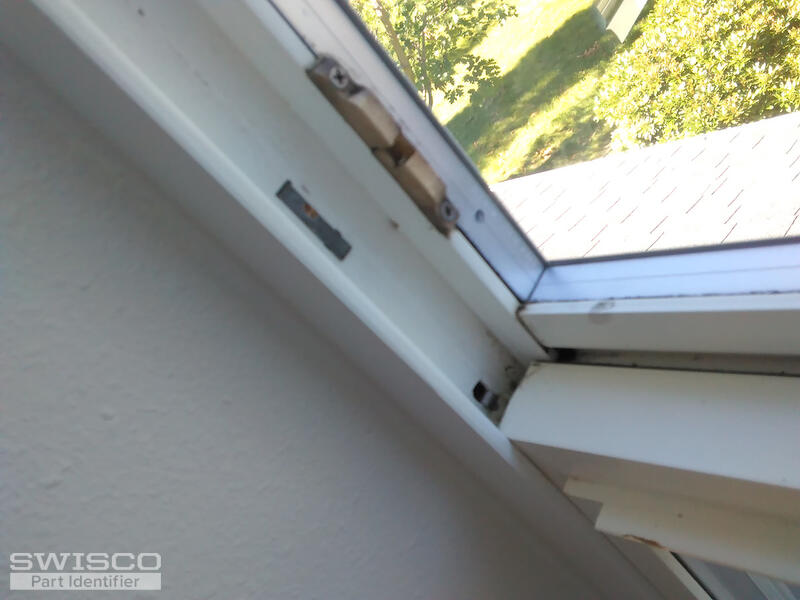

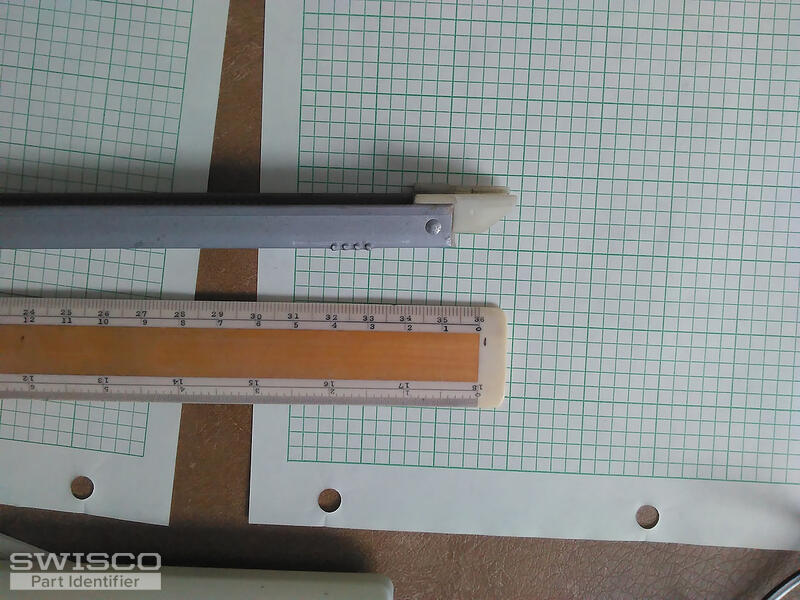

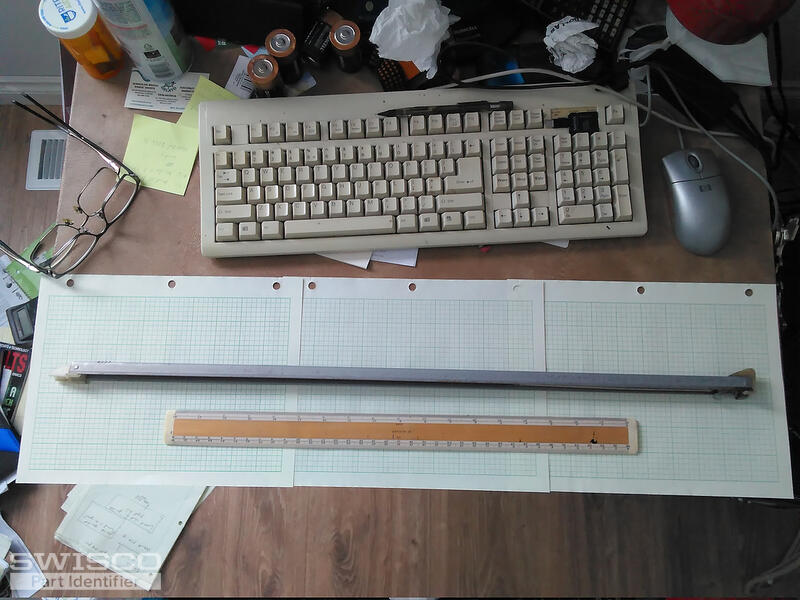

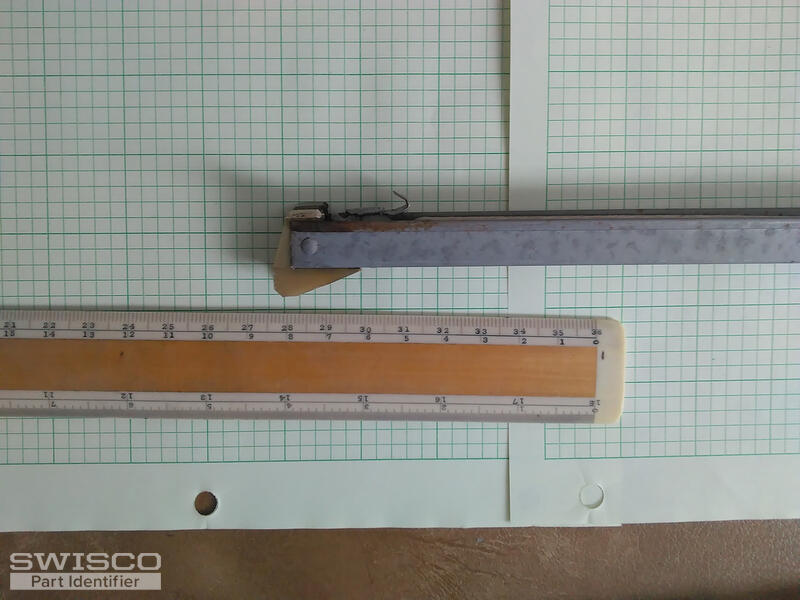

I'm looking for some parts for some old Alpine window (probably installed in the 90's). Just the metal part of the bar is 27inches long and about 1/2 inch wide (on the side facing the window). attached are photos of the part, and
I found a tag (in smaller window as there are none left in the window under discussion) that says "Series: 580 Mfg: Alpine Industries"

the whole window frame itself is about 47inches wide and 59inches high (not sure which measurements are actually relevant, so I just measured the whole thing.)

thanks,

d..

Emily · Accepted Answer

Hi, D.

Based on what I see here, I recommend our S380-27 or S385-27 channel balance. These two parts may look the same upon first glance but each one has a different sized shoe. The Series 380 has a 1" deep shoe, while the Series 385 has a 1-3/32" deep shoe. You'll need to measure as shown below to determine the best match. There should also be a stamp on the metal channel that will indicate what strength option you'll need.

Comparison of the S378, S380 and S385 balance shoes.
