aluminum windows

Quick Learner from Penrose Colorado
1st pic is the bottom of spring assist, does not appear to be hooked properly. Is there something missing? pic 2 is the top of sash and top of assist

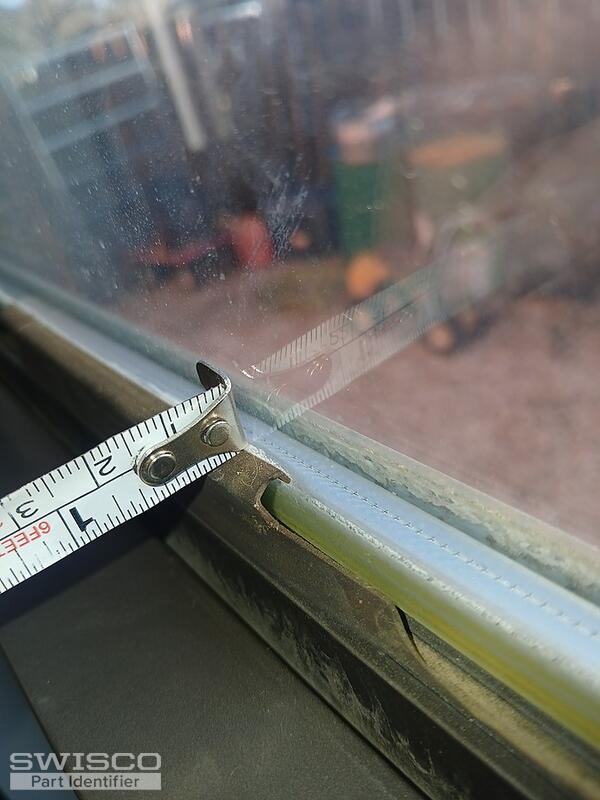

pic 3 and 4 is glass stop in need of replacment
4 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for reaching out to us. The top sash guide reminds me of the 18-009. Review the specifications and see if they match what you need.

As for the glazing, we will need you to remove an undamaged sample and show us a clear photo of the end profile.

I'm afraid we can't confirm whether something is missing from the balance or not from these photos. You would have to inspect it to see if the components are intact.

Can you remove an undamaged balance and show us photos of the bottom fitting? Can you also show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. Lastly, are there any stamps on the metal channel?

Side view of 18-009
Side view of 18-009

Detail of 18-009
Detail of 18-009
