american craftsman awning sku#515-664

A contractor from rochester ny says:
April 17, 2022

sku# 515-664

2011 ,homedepot,

i need the part that holds the arm to the window.

i need 2 handles also

Thumbnail of the uploaded file named 14.25 arm.jpg
Thumbnail of the uploaded file named crank.jpg
Thumbnail of the uploaded file named missing piece.jpg

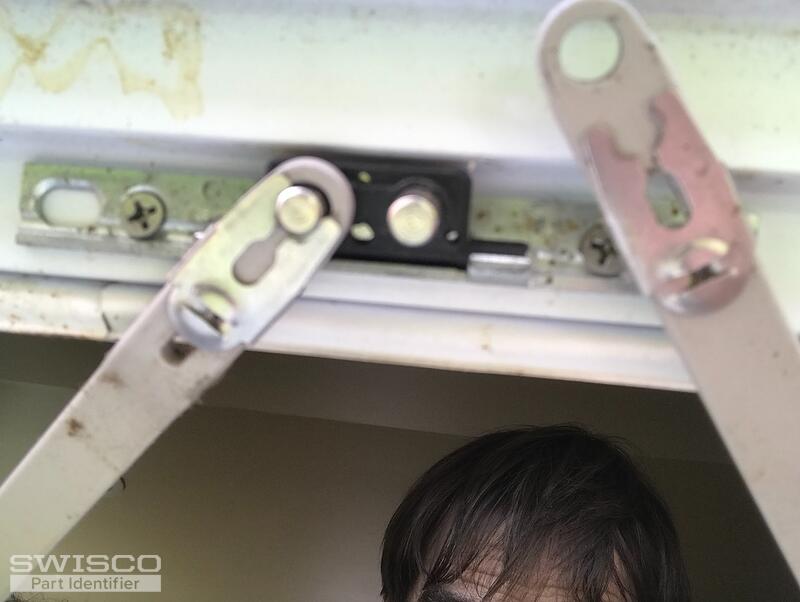

Thumbnail of the uploaded file named piece i need.jpg

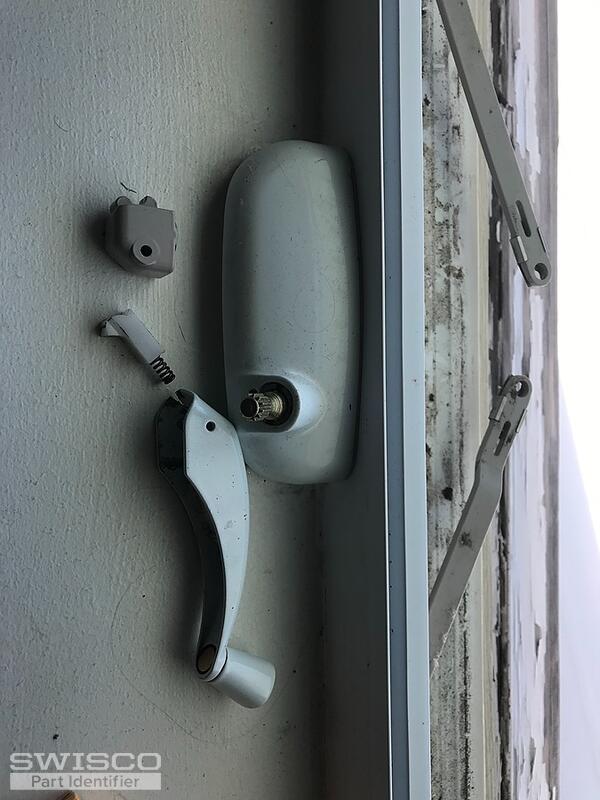

Thumbnail of the uploaded file named windowall.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 20, 2022

Sounds like you need a new mounting bracket. Your old operator appears to match our 39-393, which itself is compatible with two such brackets. Yours in particular appears to match our 39-340, but look it over and see what you think. The other option is the 39-424.

As for the handle, see our 39-205.
Roto Vinyl Awning Window Operator
Roto Vinyl Awning Window Operator
39-393
$47.95
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Roto Awning Bracket, Surface Mount
Roto Awning Bracket, Surface Mount
39-340
$12.97
