american craftsman non tilt window

Handy Person from oldsmar fl

Jun 8, 2019 10:40 am

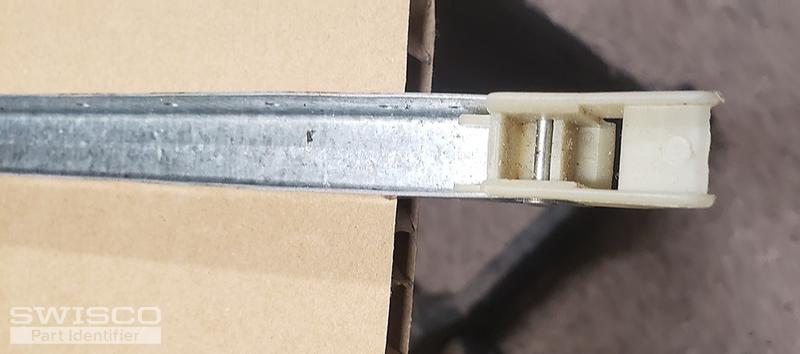

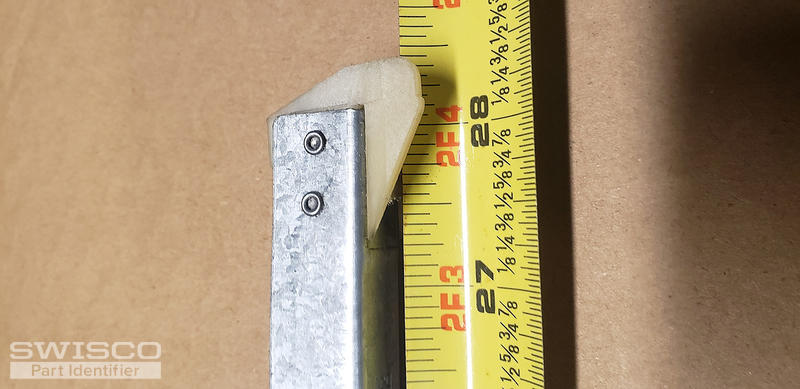

I need to replace my balance the length is 27 7/8. a double spring.the window weights 36 lbs. markings are 27, 14L ok, bsi. thanks for the help.

Phil

5 user uploaded images

4 Replies

Tom from SWISCO

Jun 11, 2019 1:34 pm

Thanks for posting, Phil. Your balance looks like our S390-28, which has a 19-002 top and 15-001 bottom nylon fitting, but your stamp is very peculiar. A 27 14L stamp is usually meant for sashes much heavier than what you have.

If you are positive that your sash is 36 pounds, though, then I recommend our 2770 option. It's possible that whoever installed these used the wrong spring calibration for the job.

Handy Person from oldsmar fl

Jun 11, 2019 4:11 pm

thanks for the help. balance are ordered. the window is one step down from hurricane window. that's why it so heavy.
thanks
Phil

Tom from SWISCO

Jun 12, 2019 7:59 am

Awesome! Thank you so much for ordering with us, Phil. If you ever need anything else, please let me know.
