andersen window balance

Quick Learner from chapel hill, NC

Jun 10, 2016 9:54 am

Hi:
I have a failed window balance that need replacing.
Length = 6 3/4 "
Width = 3"
3/4 " Deep

Looks like markings say 6/84 manufacture date,
stamp on bottom plate (where cords exit) says P69 12L 6 84
this is the balance on left side of window ( from interior view)

note : the other balance has not failed but that shows a stamp of P69 12R 8 84

can you recommend replacement balance for both ?
thanks,
Gary H from North Carolina

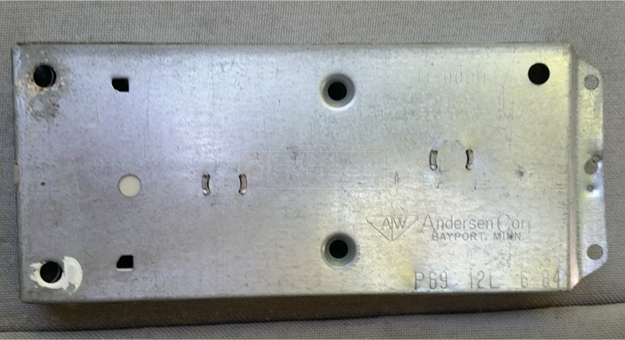

User submitted image of their window hardware.

5 Replies

Quick Learner from chapel hill, NC

Jun 10, 2016 9:59 am

correction:
failed balance , marked P69 12L 6 84
this is the balance on left side of window ( from EXTERIOR (OUTSIDE) view)

Paul from SWISCO

Jun 10, 2016 2:20 pm

I believe you have a cottage window, where the top and bottom sashes have different heights. To confirm, could you give us the width and height of the visible glass for both the top and bottom sash? Thanks!

Quick Learner from chapel hill, NC

Jun 10, 2016 2:39 pm

Hi Paul:

The visible glass measurements for top and bottom are identical.

Both panes measure 32 3/8 Wide and 33 7/8 High.

Gary H

Paul from SWISCO

Jun 13, 2016 3:24 pm

Great, thank you. I recommend our 24-13L and 25-13R, I believe this should work for your window.
