The first attachment is what I found online when I looked for "Woodco Face Mount Casement Operator - 900-14122" ( I had seen that on an old website). It shows a photo of the operator, and if you scroll down, you will see a drawing showing the measurements.

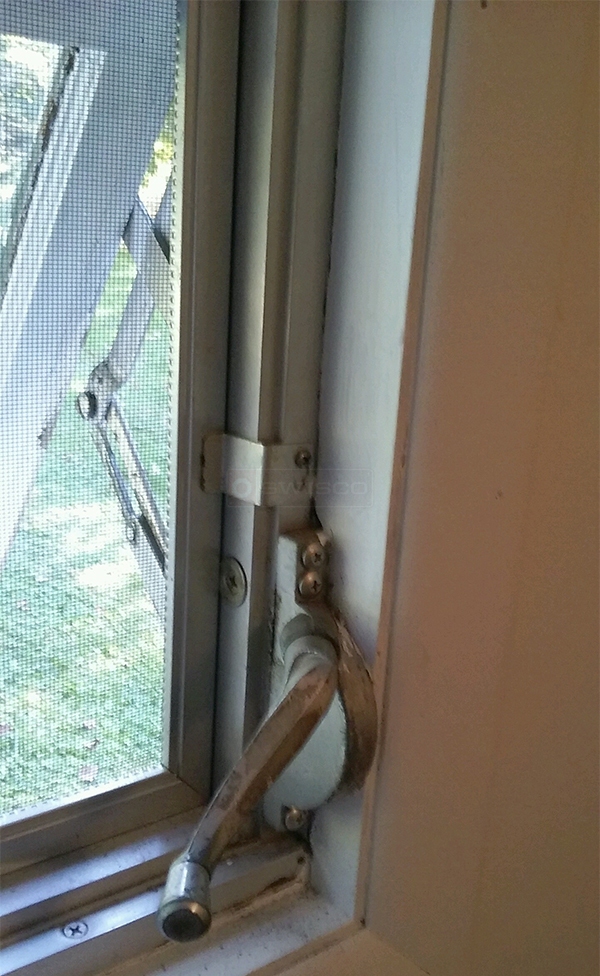

The second attachment is a photo I took of the operator in my home. I believe that the measurements in the online image are the same as mine, but I have not taken the operator in my home apart to make sure. I have replaced a few of the handles, but I believe the main problem is that the gears are stripped, so I thought that I might have to replace the whole operator, unless you know of a way to replace or repair the stripped gears.
Would you let me know if you have anything like this, or if you have another idea for what I could do to make the windows open and close better? I have to push the window from the outside to make it close completely, which is quite difficult in the winter.
