back drawer slide holder right hand

Home Owner from Michigan

Sep 25, 2019 8:12 am

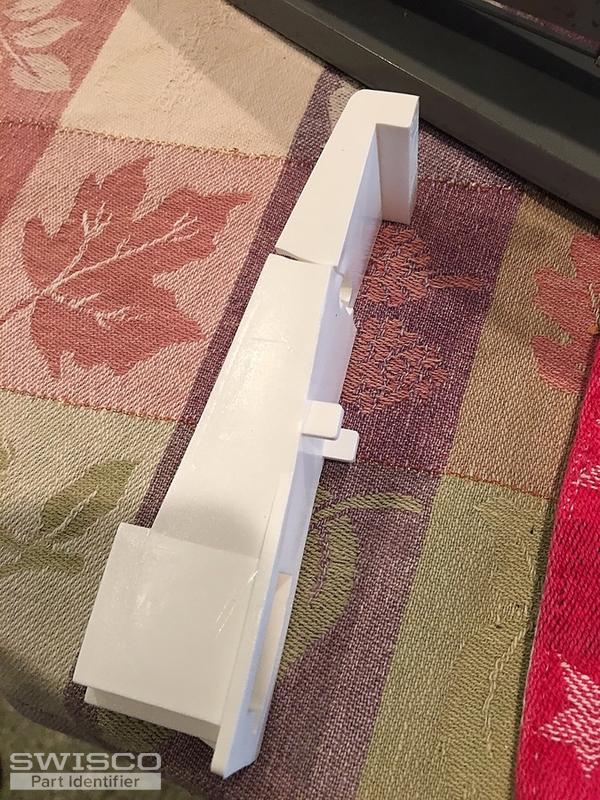

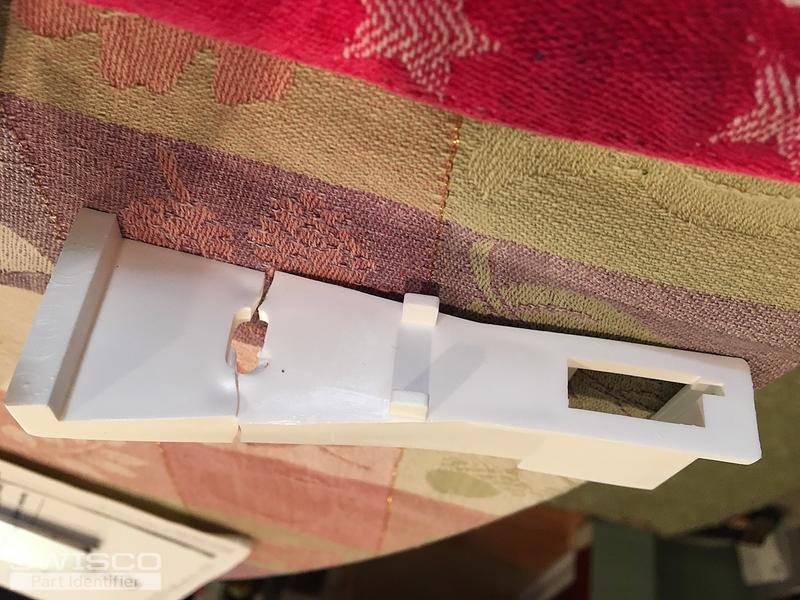

this is the bracket that holds in the drawer in our kitchen no names on any of the hardware. At the point of entry on the wider part it is 1 and 1/8 inch. At the smaller part it seems to be 7/8 inch. Seen in img 712. total length seems to be 4 and 1/4 inch. Please let me know if there is other information you need. I think I ordered a part from you before for this same cabinet but I can't find the paperwork. Thank you! Constance

5 user uploaded images

7 Replies

Casey from SWISCO

Sep 25, 2019 11:09 am

Hello,

Take a look at our 32-025 rail bracket that we've recommended to customers with similar hardware to yours in the past. Thanks for posting!

Home Owner from Michigan

Sep 25, 2019 12:51 pm

the height of the opening is 7/8 inch for the slide to fit and there is the 1 1/8 inch slot on the right side of the opening - it just doesn't look like this part is has that height for the slide to fit in. the entire depth is 1 3/8 and this one says 1 7/16. thanks for additional help

Home Owner from Michigan

Sep 25, 2019 12:57 pm

sorry one more - I see now the width of opening is 7/16. Mine seems to be 1/2 inch.

Casey from SWISCO

Sep 26, 2019 10:10 am

The original replacement socket was discontinued some time ago. If you don't believe this one will work, the only other option we can suggest is the 32-094. Take a look at this one to see if this is a better options for you.

Home Owner from Michigan

Sep 26, 2019 11:16 am

Thank you. I ordered a few different ones this morning and think one of them should fit. Thanks again!

Casey from SWISCO

Sep 30, 2019 11:12 am

We're happy to help! Please let us know if you have any other questions once your order arrives.
