balance coil

A handy person from cherry hill says:
March 27, 2019
Hello,

I'm trying to determine what shoe is needed for this as well as the weight for the coil. Thank you,

Courtney
Thumbnail of the uploaded file named coil hook.jpg
Thumbnail of the uploaded file named coil TC 840.jpg
Thumbnail of the uploaded file named shoe height.jpg

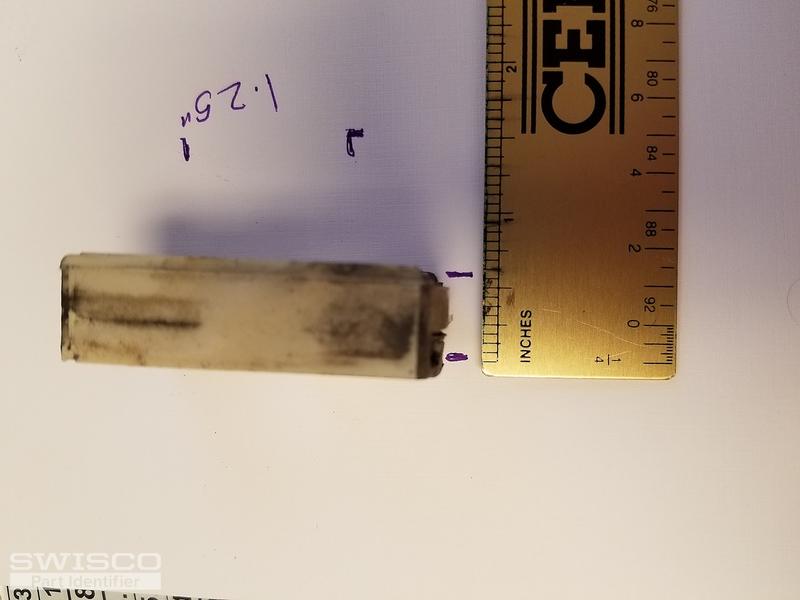

Thumbnail of the uploaded file named shoe thickness.jpg
Profile picture of Paul
Paul from SWISCO responded:
March 28, 2019

Many thanks for writing in. You appear to have an old coil spring balance system. The coil spring weight might be S150-8 for a 16 lbs. sash. Please compare with your old parts to be certain. We pulled up additional parts on this page you need them. Please note your pivot shoe isn't available and has been replaced with the 15-140.
8 lb Series 150 Coil Balance
8 lb Series 150 Coil Balance
S150-8
$6.72
Coil Balance Shoe
Coil Balance Shoe
15-140
$3.07
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
