balance for a double hung window

A home owner from colorado springs, co says:
February 4, 2019
purchased these Accent Windows, here in Colorado, in 1997.

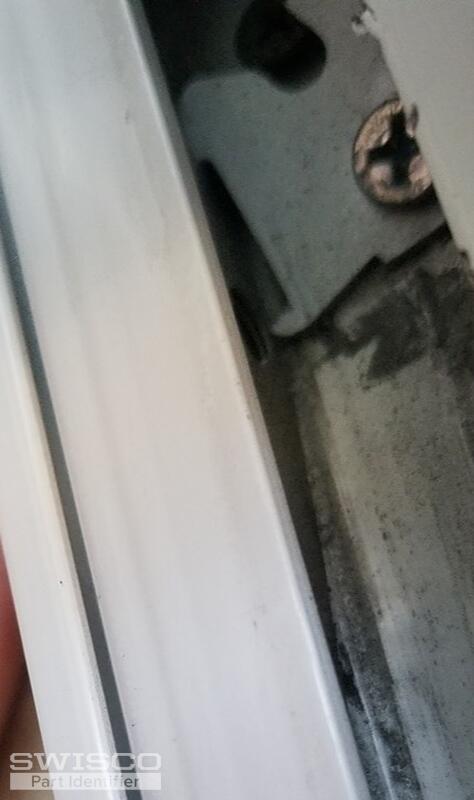

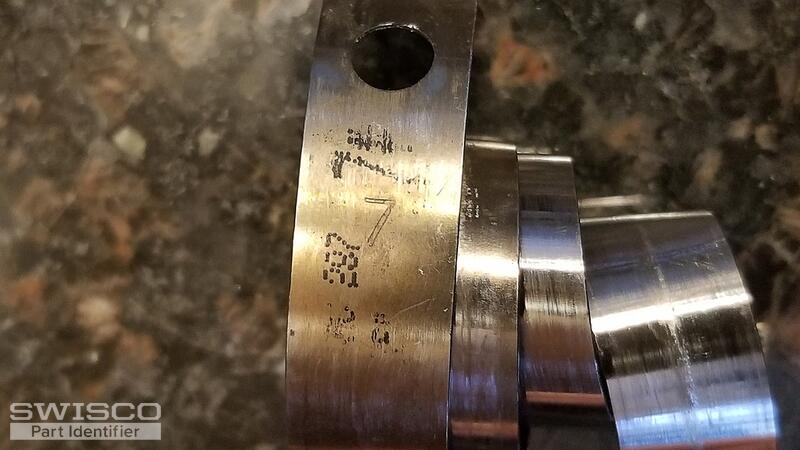

coil spring balance just snapped. picture shows the number stamped on the back of the spring.
Profile picture of Tom
Tom from SWISCO responded:
February 7, 2019

Thanks for posting! Your shoe looks like our 15-087, which is made to work with our Series 180 coil spring. I feel pretty confident that this spring is what you need.

If your shoe, housing, and bracket are in good condition, you can reuse them.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Mounting Bracket
Mounting Bracket
16-024
$0.66
