balance pics

Start a new Discussion

Quick Learner from New Jersey

Jun 17, 2024 11:33 am

Hi

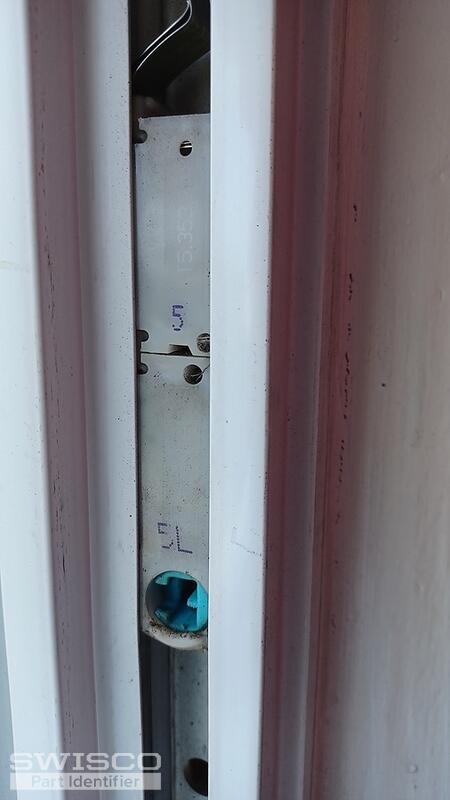

5L is the broken side....5R is on the side and is still working

thanks

Larry

2 user uploaded images

4 Replies

Emily from SWISCO

Jun 20, 2024 10:12 am

Hi there Larry.

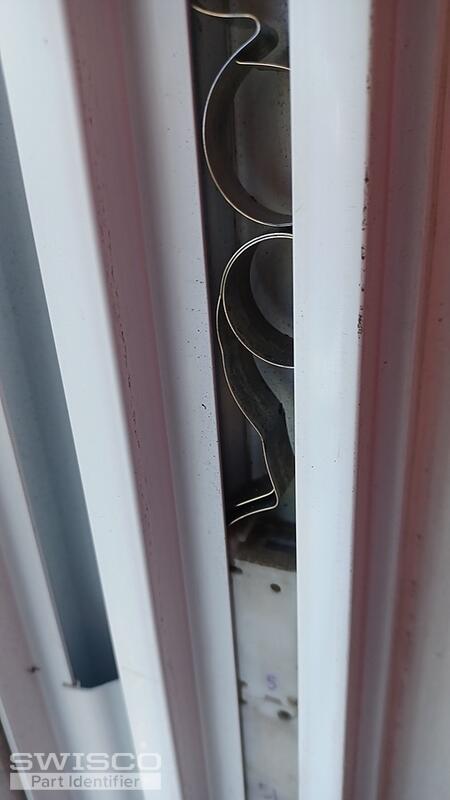

The 15-087 pivot shoe appears to match what you have here. The Series 180 are the comparable springs that are sold separately. Have a look and let us know if you have any questions.

Quick Learner from New Jersey

Jun 21, 2024 12:51 pm

Hi Emily
just confirming with you....should this be my parts list
>(1) 15-087
>(1) 15-086
>(2) S180 .....and should they be the 5 LBS coil

thanks again
Larry

Emily from SWISCO

Jun 24, 2024 10:21 am

Yes, that would be the parts needed for each side based on your photos. Please note that using two 5-pound springs on each side would support a 20-pound window sash.
