balance replacements

A quick learner from Palm Coast FL says:
I would like to order replacements for window balances, please help me to identify correct parts per photos attached.
Thumbnail of the uploaded file named 20201206_102940.jpg
Thumbnail of the uploaded file named 20201206_103216.jpg
Thumbnail of the uploaded file named 20201206_103534.jpg
Thumbnail of the uploaded file named 20201206_103517.jpg
Thumbnail of the uploaded file named 20201206_103127.jpg
Profile picture of Tom
Tom from SWISCO responded:

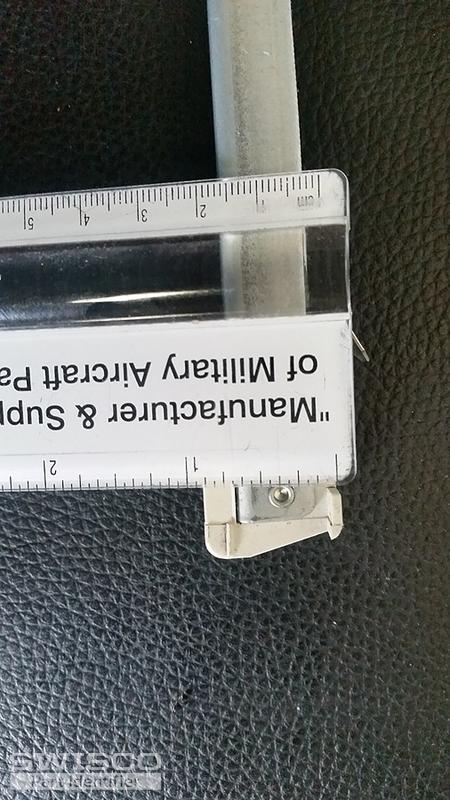

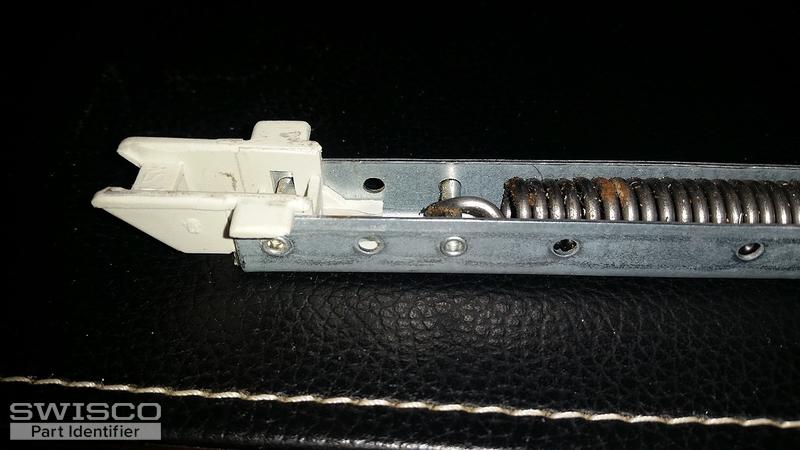

We should be able to supply this balance, but I'd like for you to confirm the depth of your bottom nylon fitting just to be sure. It looks like it's under 1", but I'm not certain if that's just a trick of the angle or not.

Look at our 15-005 and 15-029 for comparison. The 15-005 is 1" deep and the 15-029 is 7/8" deep. We can make a balance with the 15-029 for you, but it would have to be a custom order. That's why it's important to be 100% sure.

A quick learner from Palm Coast FL says:
It is definitely 7/8", therefore, I will need balance with 15-029 bottom fitting.
All together, I would like to get a quote and delivery date for 29" balances, mounting clips and sash guides, 8 of each.
Thank you for prompt response.
Profile picture of Tom
Tom from SWISCO responded:

Sounds good! I'll email you a purchase link and price quote now for 8 balances made to those specs.

One thing to note is that your 28F stamp translates to our 2860 stamp, and the 2860's are currently out of stock. We expect there to be an approximate lead time of 5-6 business weeks, but due to the quarantine that could be extended. Chains of supply have been backed up all year and lead times are fairly unpredictable as a result. I apologize for any inconvenience this may cause.
