balances for tilt double hung Crystal ThermoBlok window series 2000A sizes 48"x64"

Home Owner from NYC

Jun 18, 2024 5:22 pm

Hello,
Please help me find what kind of balances I must buy for tilt double hung Crystal ThermoBlok window series 2000A sizes 48"x64" and size 30"x64"
Thank you,
Alex

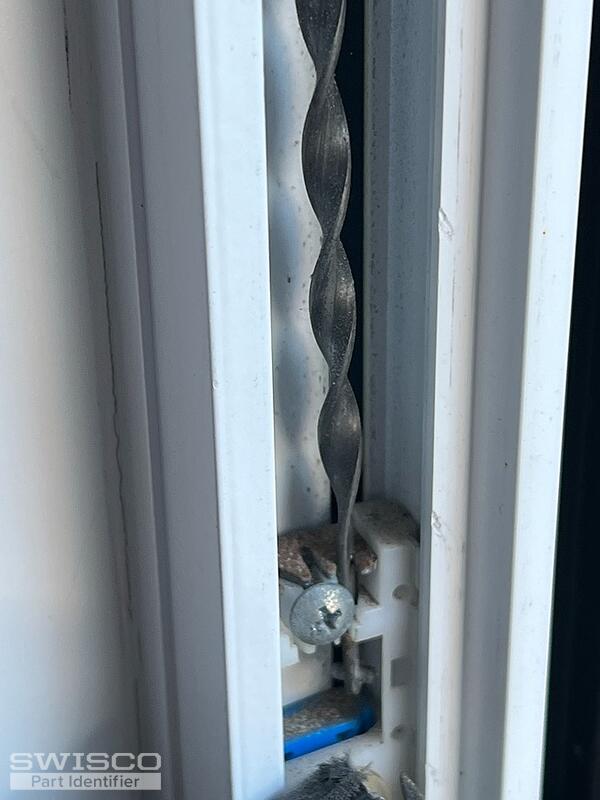

5 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Jun 21, 2024 9:48 am

EXPERT

Hi there Alex. Since this is a tilt window, you'd want the 3/8" Series 900 or 9/16" Series 600. You can reuse the old pivot shoe if it's in good shape. If not, we must see an undamaged version removed from the sash along with the written-out thickness and width dimensions.

Home Owner from NYC

Jul 15, 2024 7:46 pm

Hello Emily,
Please help me:

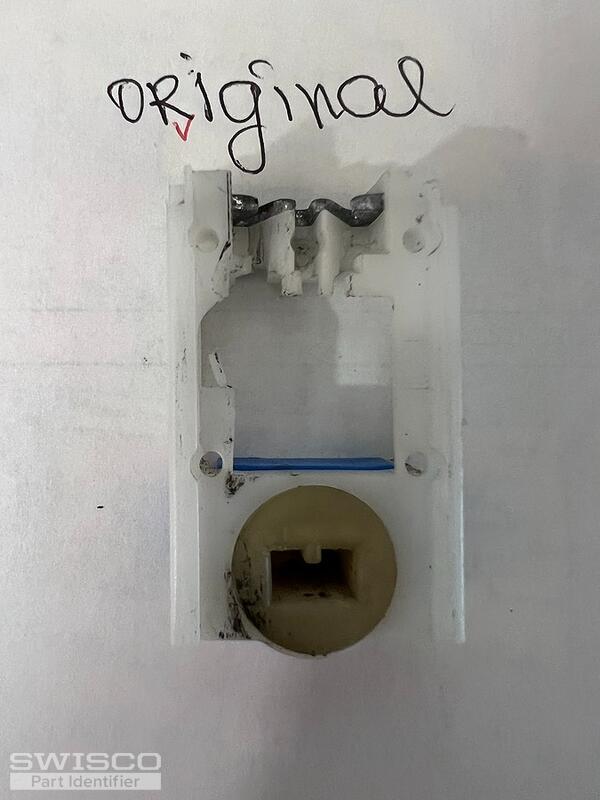

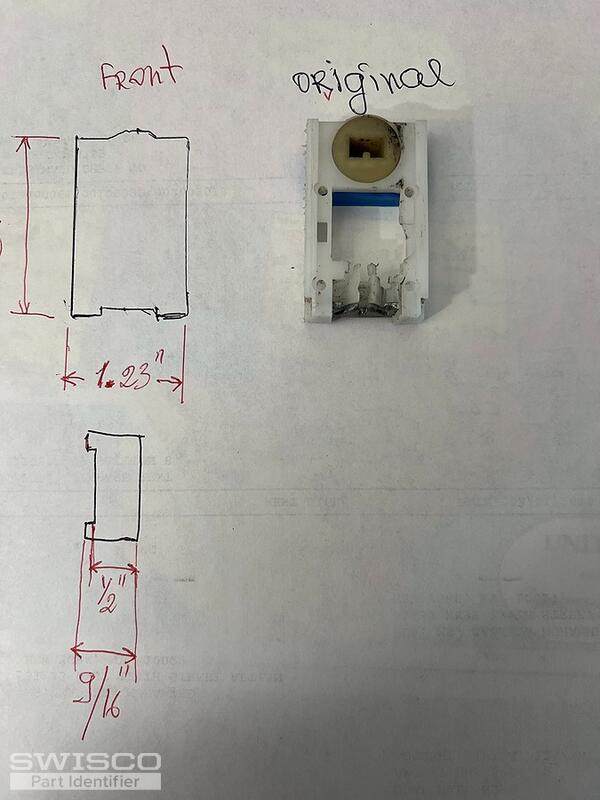

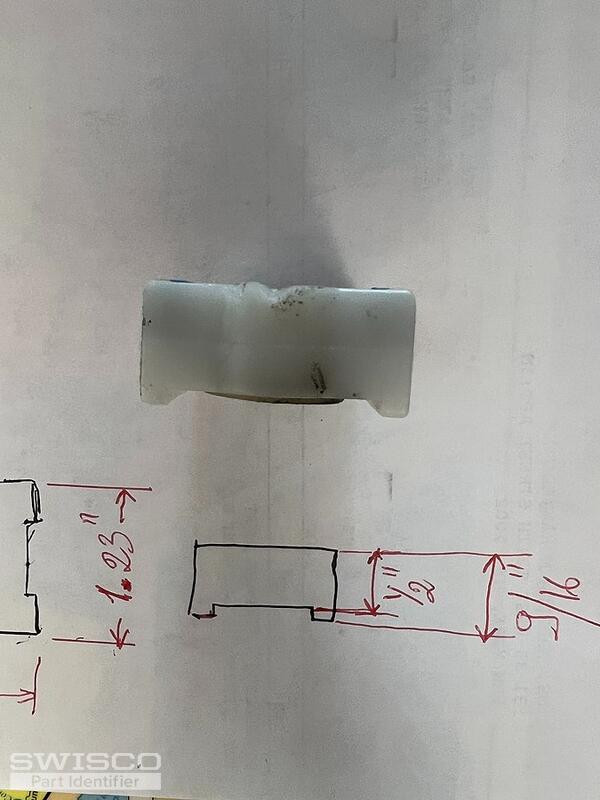

1. Find the right pivot lock shoes (see attached photo from the original and dimensions)
2. Check if I have chosen the right balancers to replace the old ones.

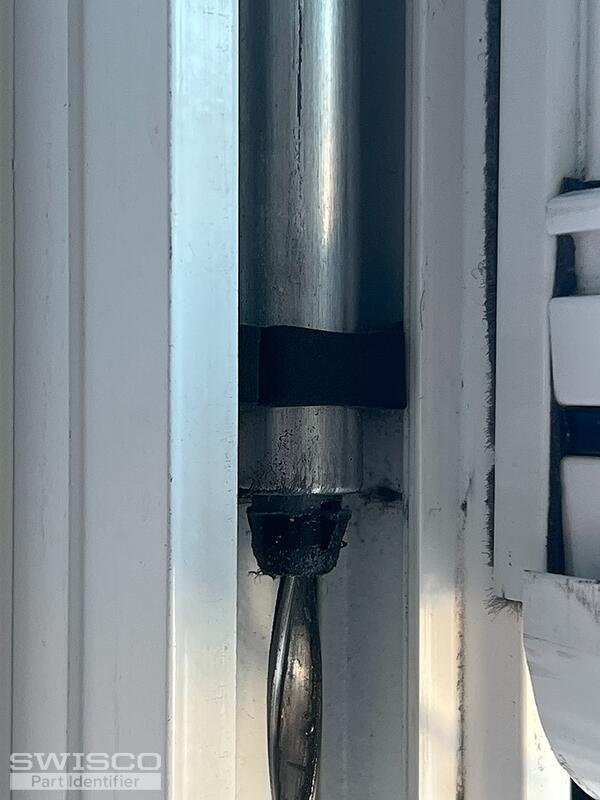

Each window has two balancers of size 27-7/8" and 25 -7/8"
The diameter of the balancer is approximately close to 1/2"
3. Also, please advise what tools I need to replace the balancers easily.

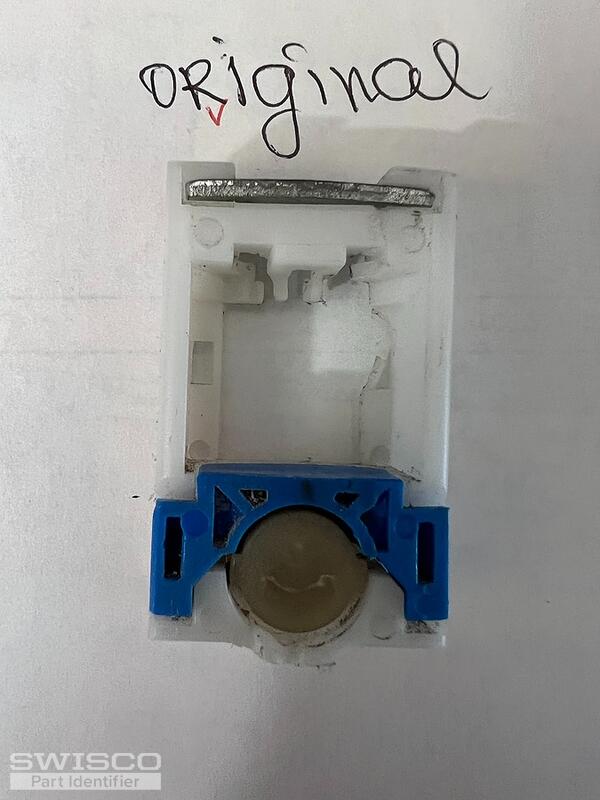

4. My original pivot lock shoes include 3 parts (plastic big, small blue and metal)
5. Maybe something else that I forgot
Thank you,
Alex

4 user uploaded images

Emily from SWISCO

Jul 16, 2024 8:31 am

EXPERT

Thanks for getting back to us! We don't have a pivot shoe with your exact specifications but the 15-118 is close. This measures 9/16" thick and is 1-1/4" wide.

As for the balances, we suspect you have the Series 600 with the black tip option. Rounding up to 28" and 26" should be fine as well. The 75-006 tool will help with charging the window balance and hooking the spiral to the pivot shoe. The video below will walk you through the replacement process.
