barrington DH7 double hung window

Quick Learner from milwaukee, wi

Oct 29, 2022 7:46 am

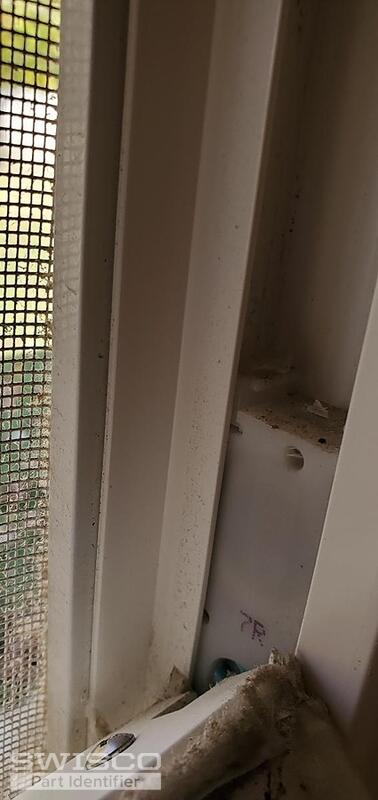

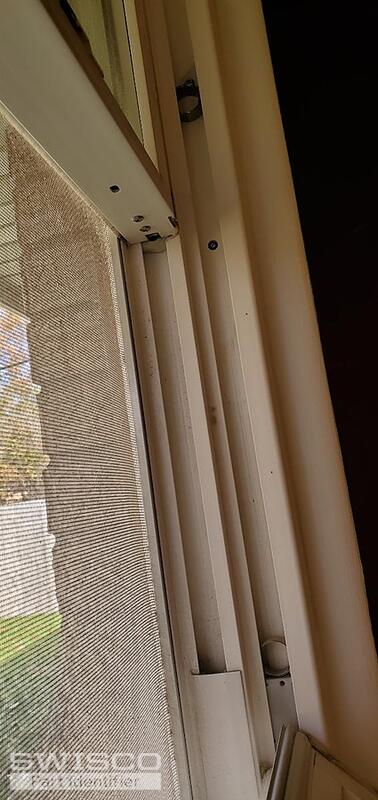

as you can see the coil balancer snapped on this window. looking to replace if the part is easy enough to find. window should be under warranty but for 8-10 bucks its an easy enough fix if the part can be identified and purchased.
thanks

2 user uploaded images

4 Replies

Tom from SWISCO

Nov 3, 2022 9:14 am

Hello! I'm afraid I can't help with any warranty your window has, but we definitely sell these balances. Since your pivot carrier is a match for our 15-087 I would recommend the Series 180 coil spring. You will need the stamp off the original in order to select the proper weight option.

Quick Learner from milwaukee, wi

Nov 3, 2022 12:44 pm

Where would I find the stamp? It does say 7R. Thanks for the help

Tom from SWISCO

Nov 3, 2022 1:49 pm

The stamp is usually printed on the band, usually next to the holes. If yours reads 7R then that likely indicates a rating of 7 pounds.
