COLOR IS WHITE AND I BELIEVE IT TO BE LEFT HAND (THE LATCH IS MOUNTER AT THE TOP OF THE WINDOW AND I PULL IT DOWN TO OPEN AS FRAME HOLE FOR PIN IS CUT TO THE RIGHT WHEN CLOSED) I CANNOT FIND A NAME ON ANY OF THE WINDOWNS. i JUST NEED 1 OF THESE.
1 1/2 CENTER ON MOUNTING BOLT HOLES
7/16 FROM BOTTON OF MOUNTING TO ROUND ROD
THIS GOES THEOUGH THE CENTER OF WINDOW INTO WINDOW FRAME.
I WILL TAKE ANYTHING THAT WILL WORK EVEN IF IT NOT THE SAME COLOR.
ANY HELP IS APPRECIATED, THANK YOU.
basement window latch
Home Owner from Bartonville, IL
Nov 6, 2024 1:13 pm

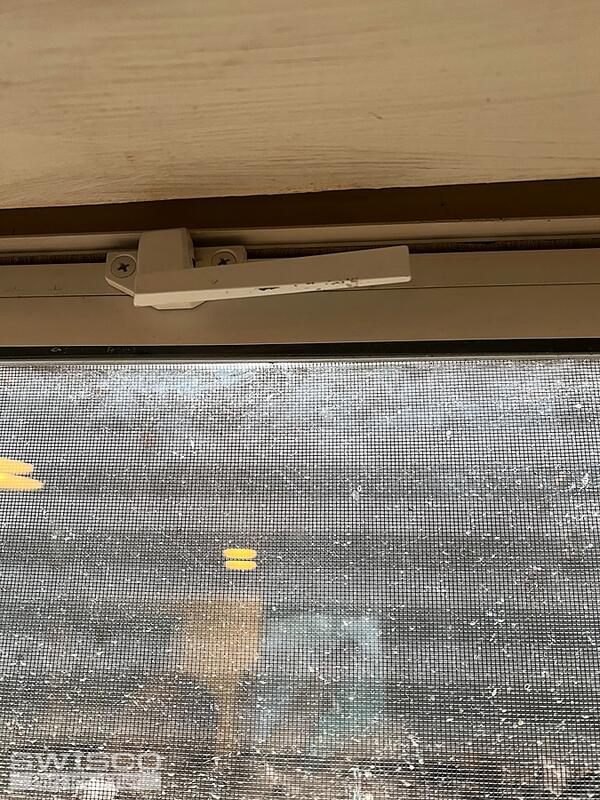

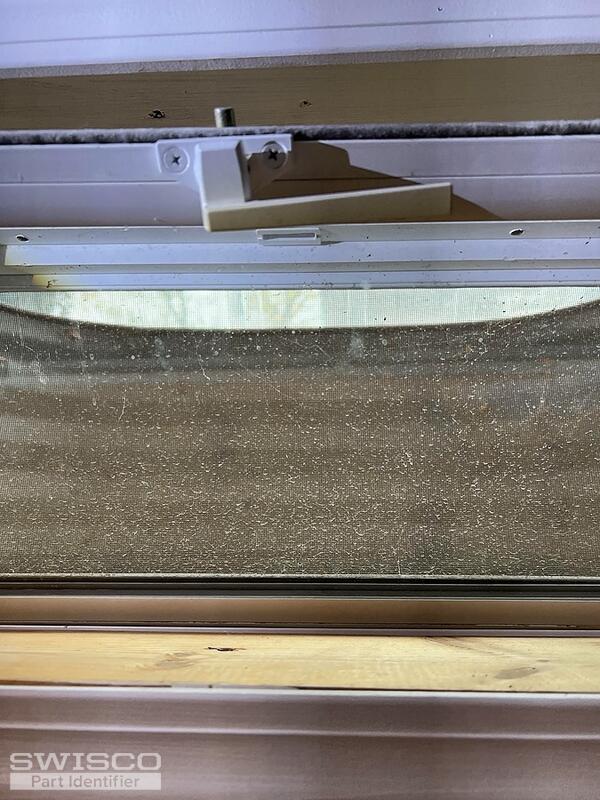

5 user uploaded images
4 Replies
Emily from SWISCO
Nov 8, 2024 9:52 am

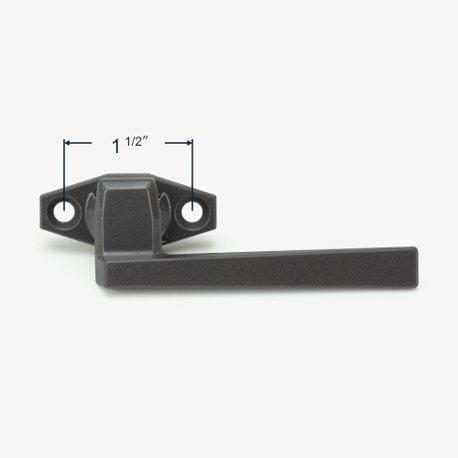

Thanks for reaching out to us. We don't sell an exact match for this locking handle. The 38-093L and 38-093R have a similar pawl and measure 1-1/2" on the installation hole centers, however. We can't promise a direct fit but take a look at the specifications and see how they compare with yours.

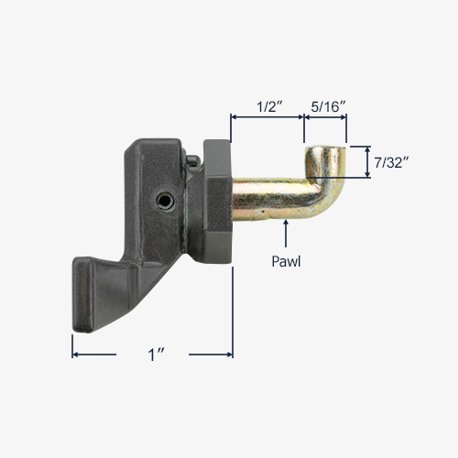

Dimensions for 38-093L
Alternate view of 38-093L

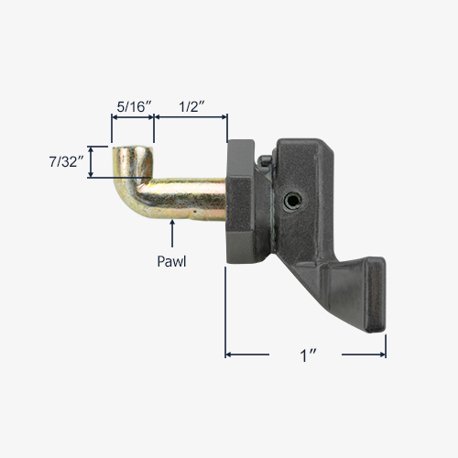

Dimensions for 38-093R
Alternate view of 38-093R
Home Owner from Bartonville, IL
Nov 8, 2024 4:48 pm
Everything is real close except where you show 7/32 I need 1/2 inch to 9/16 inch otherwise it will not clear window and lock
If you don't have anything with extra length, can you come up with one 1 3/8 mounting holes and Longer rod and I will try and make it work.
If you don't have anything with extra length, can you come up with one 1 3/8 mounting holes and Longer rod and I will try and make it work.
Emily from SWISCO
Nov 11, 2024 8:27 am
Unfortunately we do not have another option to consider with the dimensions needed. I apologize for the inconvenience. Please let us know if you have any additional questions.
