bent and broken window parts

A handy person from windham says:
July 27, 2020

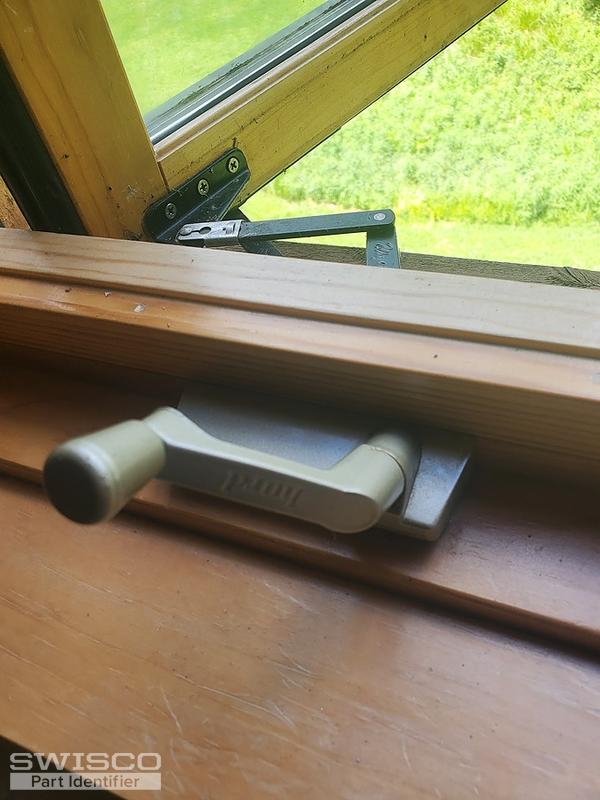

This is bent and broken on the opposite window. It cant be opened. Need these parts but for one that opens opposite direction. Thanks
Thumbnail of the uploaded file named 20200621_125131.jpg
Thumbnail of the uploaded file named 20200621_125105.jpg
Thumbnail of the uploaded file named 20200621_125056.jpg
Thumbnail of the uploaded file named 20200621_125050.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 30, 2020

I see a bunch of different window parts in these photos, and I'm not sure exactly what you need. Can you specify which part in particular you need to replace?
A handy person from windham says:
July 30, 2020

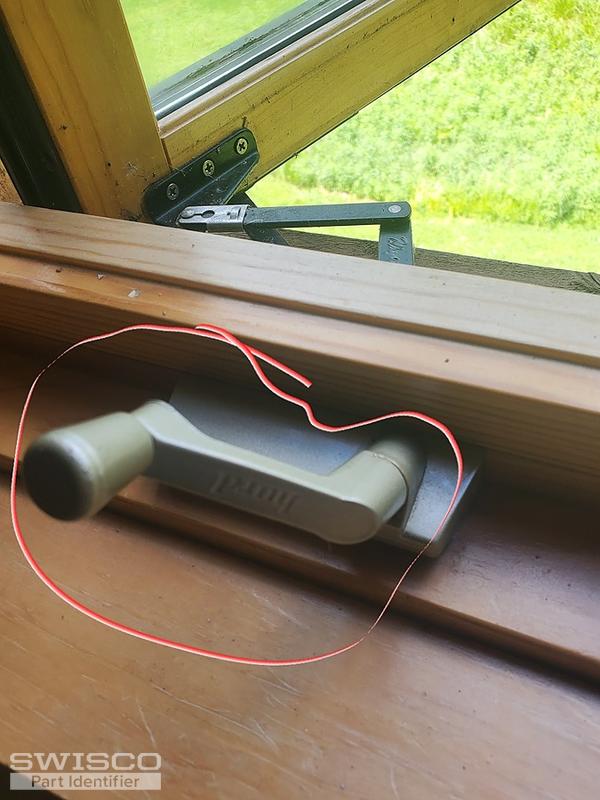

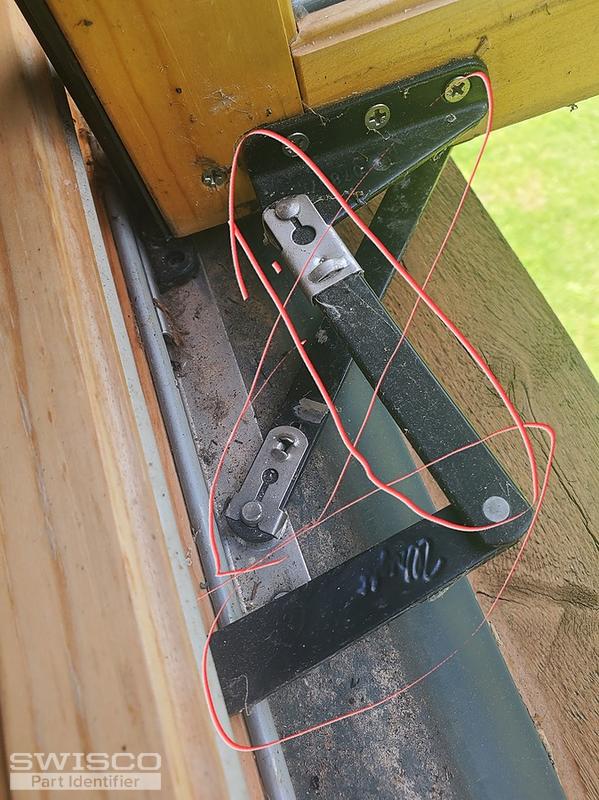

Just about all of them. Lol. Window was hanging and bent all hardware. More or less the ones i have circled.
Thumbnail of the uploaded file named 20200730_135802.jpg
Thumbnail of the uploaded file named 20200730_135739.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 30, 2020

I totally understand. In that case, take a look at our 39-388 operator and 36-048 hinge. I believe these may work for you, though for the hinge you'll definitely want to replace the top and bottom at the same time. The video below may also be of some help.
A quick learner from Manzanita & Portland Oregon says:
August 11, 2020
Just replaced hinges & operators on 4 awning windows. Costal environment, two blocks from the Pacific. Original hardware completely shot.
39-388 and 36-048 fit perfectly. And appear to be better engineered than the original hardware.
Windows operating like new!
Client was very pleased.
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Split-Arm Operator, Wright
Split-Arm Operator, Wright
39-387
$36.20
Split-Arm Operator, Wright
Split-Arm Operator, Wright
39-388
$36.20
