pin is steel i/4" diameter, 4 1/2" long including nylon slider cap. Pin has two grooves 1/2" apart around the middle
encircling pin is a spring 1 3/4" long, 5/8" in diameter for 1" narrowing to 3/8" at the othe end
the spring floats free on the pin in the door channel through which the pin passes. The spring would have to be fixed to the pin to springload the pin into the extended position to function as a door guide
As it is,a part may be missing allowing the spring to float.
The steel 6 panel doors are believed to have been installed 42 years ago
bi-fold door pin to slide door along bottom track
Handy Person from Norwalk, Connecticut
Nov 18, 2016 12:33 pm
4 Replies
Paul from SWISCO
Nov 18, 2016 2:20 pm
I'm afraid I can't think of a bifold pin having two grooves in the middle. May we see a picture of your pins and fittings? That would be a huge help.
Quick Learner
Nov 20, 2016 11:37 am

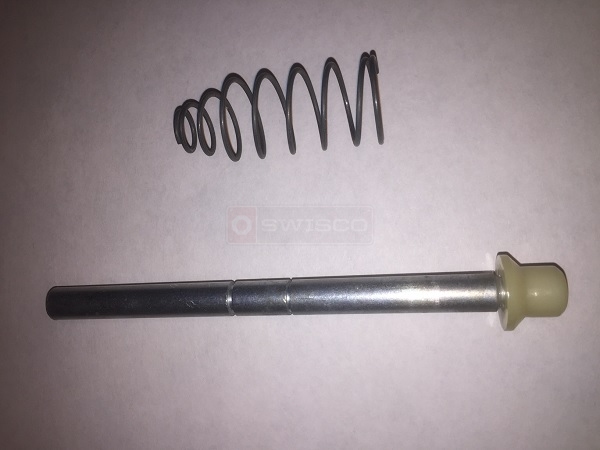

Hi Paul - picture attached.
Paul from SWISCO
Nov 21, 2016 2:54 pm
Thanks for the photo! I believe you have the old Peachtree bifold door. The pin thickness for these was 5/16", which would match our 21-071. This has two grooves and comes with the cone spring and E clip. I would double check your measurements just to be sure.
