Bifold closet doors doors Arch Mirror

A home owner from USA says:

September 28, 2020

Dear Paul: In these bifold mirror doors, I'm missing several parts. The sticker on the back says Arch Mirror and the track measures 1 3/16 " X 3/4" measured outside.

Please advise if you carry the parts like pivot bracket, roll guide, corner connector, pivot pin, screw driver bottom pivot that would fit.

Please note in the 3rd picture there is a plastic cover on top of the pin as well to allow for the hole size.

Thanks for your prompt attention.

Paul

Thumbnail of the uploaded file named 20200926_140725.jpg

Thumbnail of the uploaded file named 20200926_144139.jpg

Thumbnail of the uploaded file named 20200926_144150.jpg

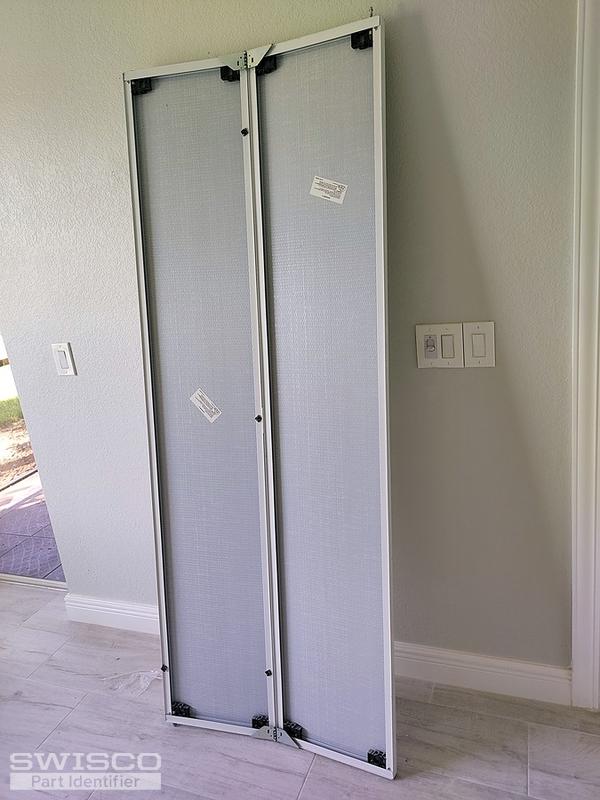

Thumbnail of the uploaded file named 20200926_144825.jpg

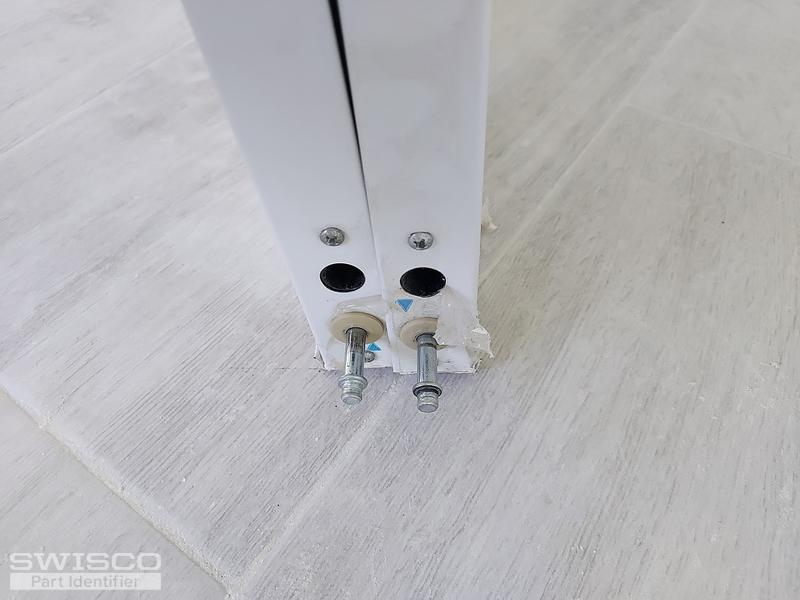

Thumbnail of the uploaded file named 20200926_144202.jpg

A home owner from USA says:

September 29, 2020

Some additional info pursuant to reference D 189042

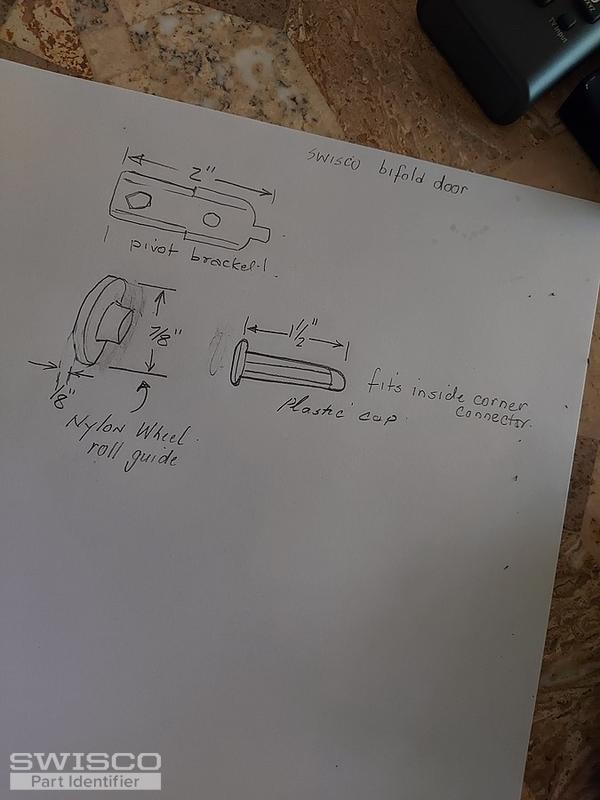

Thumbnail of the uploaded file named 20200928_183629.jpg

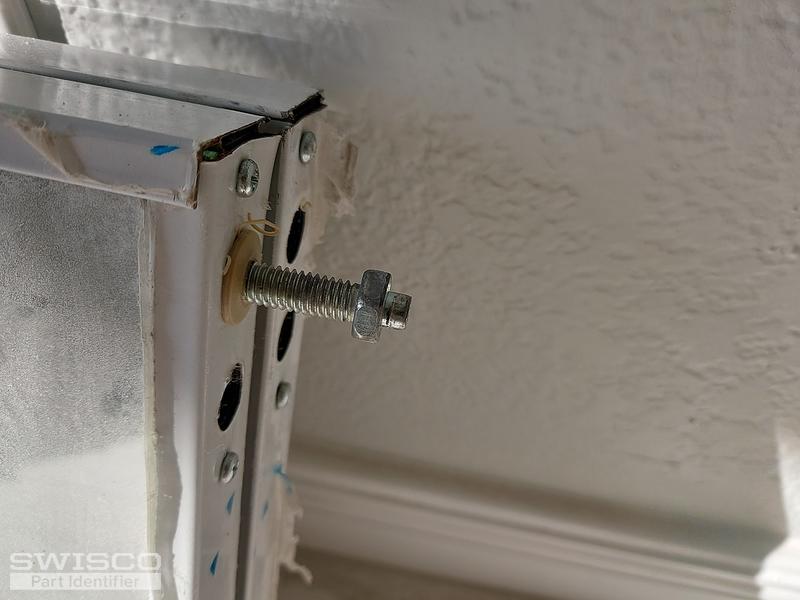

Thumbnail of the uploaded file named 20200928_170308.jpg

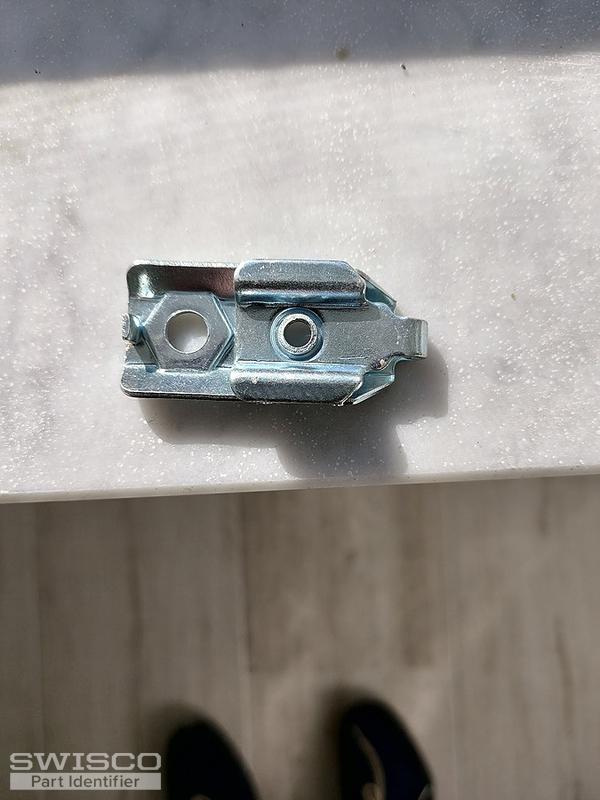

Thumbnail of the uploaded file named 20200928_165242.jpg

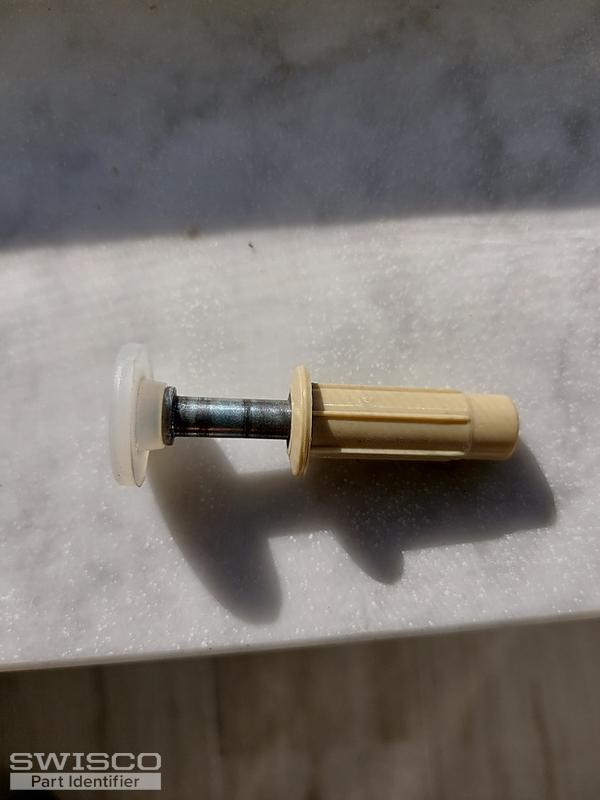

Thumbnail of the uploaded file named 20200928_165057.jpg

Casey from SWISCO responded:

October 1, 2020

Hello,

I'm going to have one of our senior bi-fold door experts take a look and see if they could recommend replacement parts for you. We'll reach out as soon as more information is available. Thank you!

Paul from SWISCO responded:

October 5, 2020

The silver pivot bracket would be our 21-175 and the nylon roller guide would be the 21-174. The spring-loaded pin looks like our 23-115 and the 23-116 threaded adjusting pin. Please compare the dimensions of our parts to yours to confirm. Thanks for posting!

Bi-Fold Door Adjustable Bottom Pivot

23-116

$1.97

Spring Loaded Top Pivot

How to Install Bi-Fold Closet Door Pins
