bifold door hardware

A home owner from miami says:

I received bottom track for my metal bifold door, 21-401. Note 2 photos. I think you refer to the pieces as floater and pivot ?

Your track is less wide as my old one. My floater piece (under the spring) is wider than the opening on the track and does not go in.

I want to order the 2 parts (floater and pivot) that fit with my new track.

I don't know the item/part numbers.

Thank you.

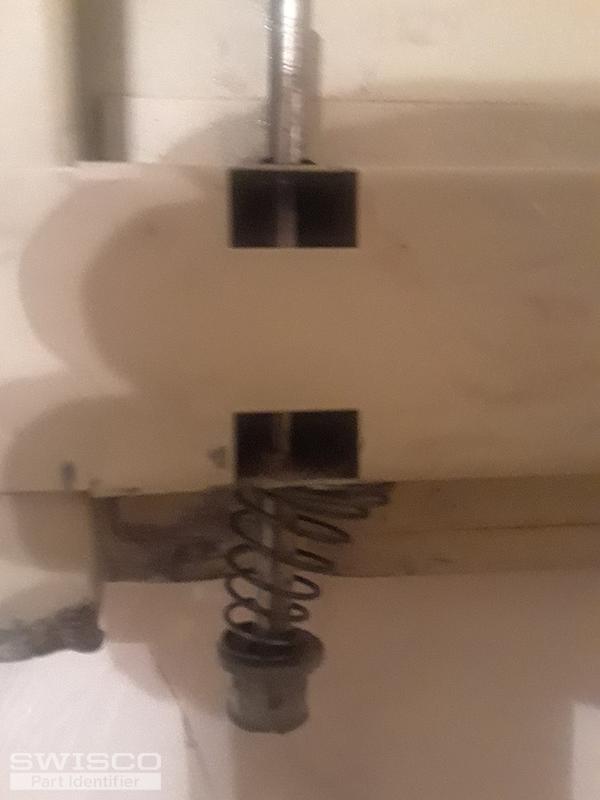

Thumbnail of the uploaded file named door part 1.jpg

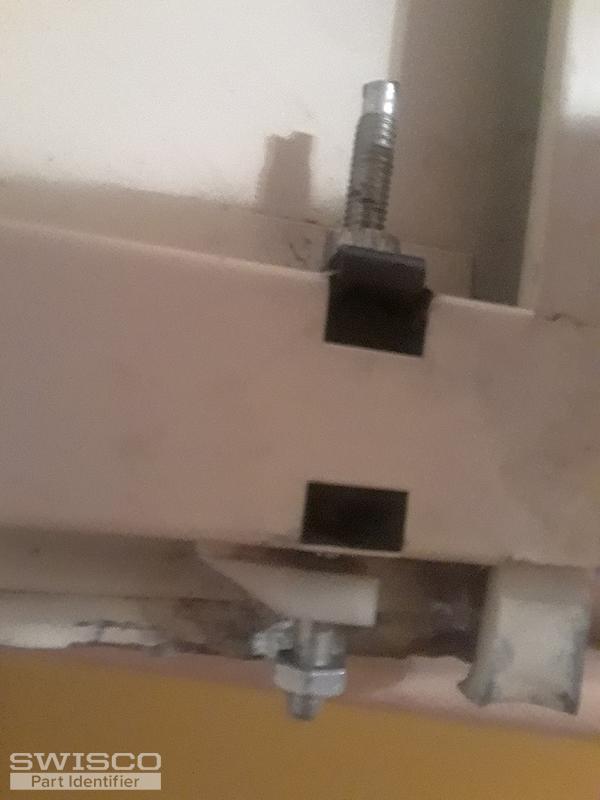

Thumbnail of the uploaded file named door part 2.jpg
Profile picture of Paul
Paul from SWISCO responded:

Many thanks for your correspondence. You have a National bi-fold door that uses the 21-046 bottom adjusting pin and the 21-072 spring-loaded guide pin. If you didn't need a new track, I'd say go with those pins. Now, I am afraid that the track itself is no longer available. We see you bought the 21-401 track; I am afraid that won't with the National pins. So instead, with your new track, you will need the 21-002 bottom adjusting pin and the 21-044 spring-loaded guide pin. Let me know your thoughts.

A home owner from miami says:
I will order the 2 pins you suggest. Will I need directions to put them in my door? Thanks for your help!
Profile picture of Paul
Paul from SWISCO responded:

We don't have instructions for these specific parts, but we do have a cover-all video on how to replace most bifold door pivots. I believe it will be helpful for you.

21-002 : Bifold Door Pivot Pin, Benchmark
Bifold Door Pivot Pin, Benchmark
21-002
$3.82
VIEW >
21-044 : Bifold Door Top Pivot and Guide Pin, Benchmark
Bifold Door Top Pivot and Guide Pin, Benchmark
21-044
$3.66
VIEW >
21-046 : Bifold Door Bottom Pivot, National
Bifold Door Bottom Pivot, National
21-046
$7.44
VIEW >
21-072 : Bifold Door Guide Pin, National
Bifold Door Guide Pin, National
21-072
$4.79
VIEW >
21-150 : 1/4
1/4" Nylinder
21-150
$0.35
VIEW >
21-209 : Pivot Bracket, Benchmark
Pivot Bracket, Benchmark
21-209
$2.87
VIEW >
21-401 : Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
VIEW >
How to Install Bi-Fold Closet Door Pins
How to Install Bi-Fold Closet Door Pins
VIDEO
WATCH >
