Each panel is 30" x 93" metal bifold.

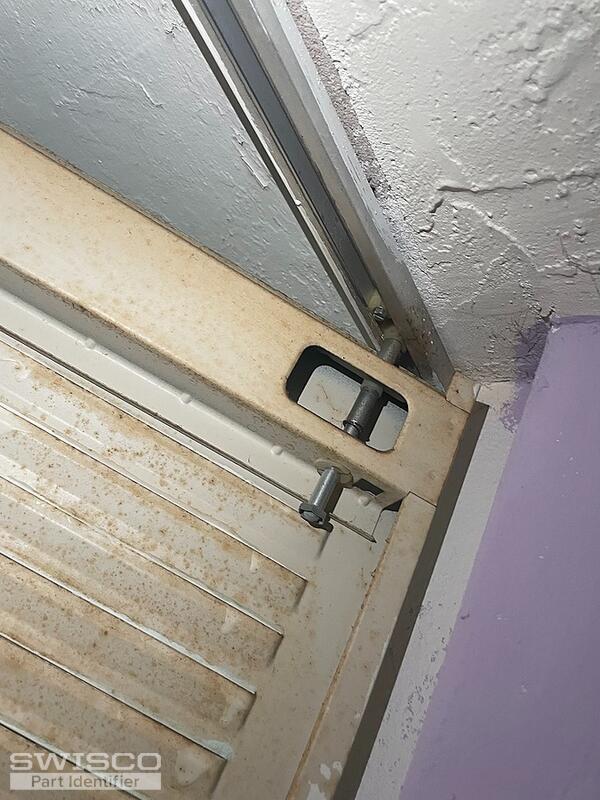

The fat part of the pin seems to be 3/8 diameter
As for the door manufacture, the blue label was the only identifying label on the door.
bifold door identification
Quick Learner
Apr 3, 2024 10:47 am
5 user uploaded images
2 Replies
Paul from SWISCO
Apr 4, 2024 12:50 pm
Thank you for contacting us. It appears you have the original Float-A-Way bi-fold doors. The inventory of these pins has dried up and we only carry the new style pins that should fit and work in your doors. You will need one 21-023 for the bottom adjusting pin, one 21-024 top spring-loaded pivot pin, and two 21-022 spring-loaded guide pins. Take a look and see what you think.
