bifold metal mirror door parts

Question

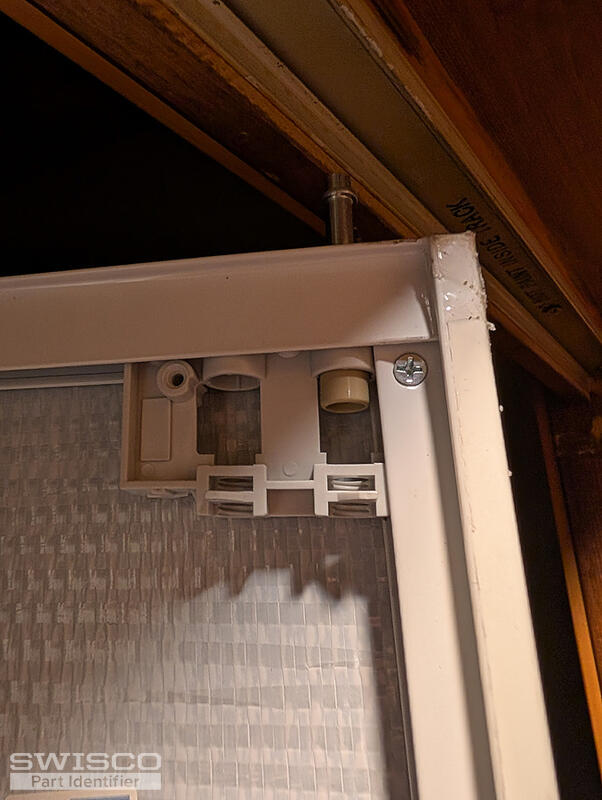

Hello, I'm looking for the missing parts for this door. I think it might just be the missing snugger? Or assembly that holds the pin in the track. There appears to be a spring already in the track, and one half of the door is still attached (fixed in place by a screw it appears). Any help would be amazing, and id happily order the parts from you if you have them!

Jasmine · Accepted Answer

Hello,

Thanks for your post! The nylon piece with the spring is referred to as the snugger. That said, I do not believe that is what you are missing. The pin connects to a pivot bracket, which is what slides in the door track.

You bracket appears to be a match for the 23-302 Bi-Fold Door Top Pivot Bracket. Carefully review it to see if this is what you need for the repair.

Dimensions for 23-302
