Quick Learner from Northern Virginia

Sep 20, 2026 2:48 pm

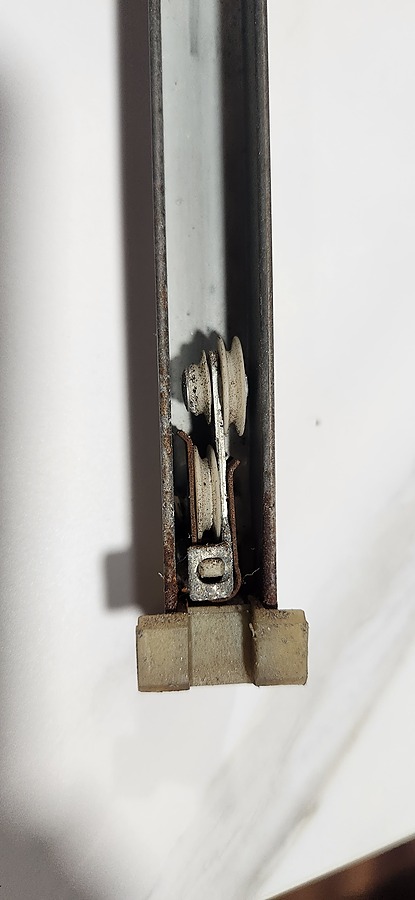

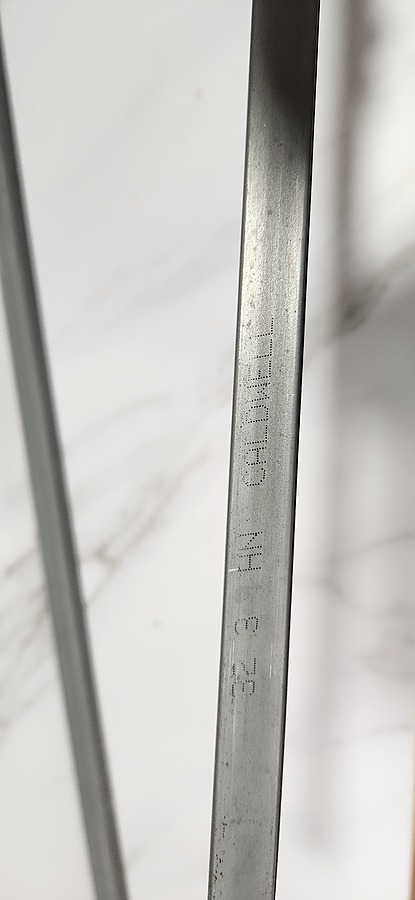

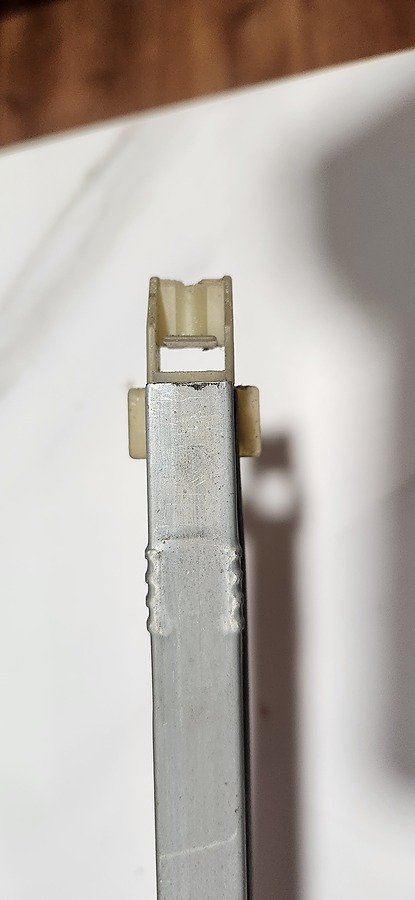

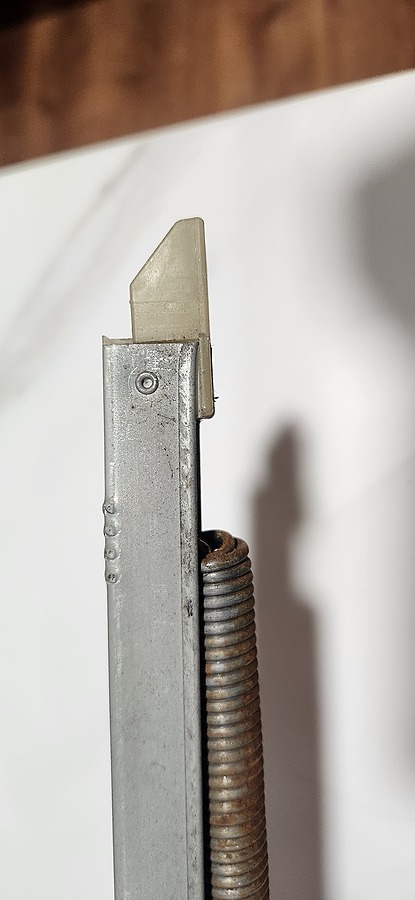

Hello. Need replacement part for this block and tackle. 32 2 HN Caldwell. New to all of this and appreciate any help.

Thank you.

5 user uploaded images

4 Replies

Bob from SWISCO

Sep 20, 2026 3:40 pm

Hey there. Looks like you might have the S380-33 or S385-33 Channel Balance, depending on the shoe depth. See below. For a stamp option choose 3220.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Northern Virginia

Sep 20, 2026 3:55 pm

Hello. Could you explain what a stamp option is ?

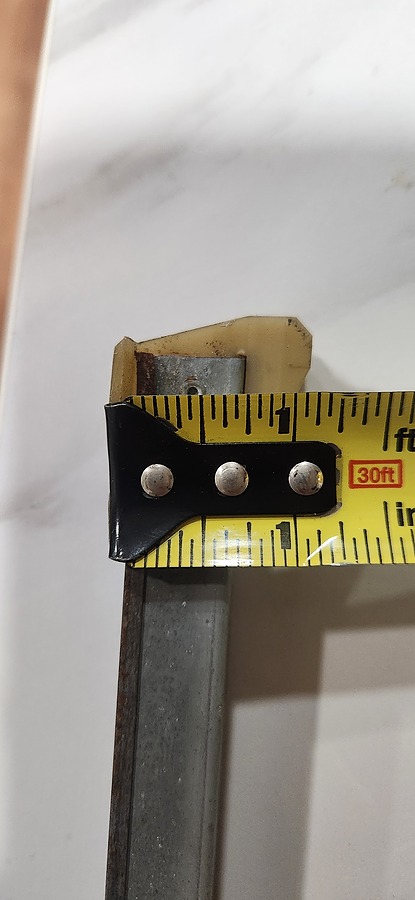

As for the show depth, when measured it is longer than 1in. So assuming it would be the S385?
Again, new to all of this.

Thank you.

Bob from SWISCO

Sep 20, 2026 4:22 pm

The stamp option designates the strength calibration of your balance. Your old balance's stamp of 32-2 corresponds to our replacement balance's option of 3220, which designates a balance that can support a sash in the weight range of 13 through 18 pounds.

Yes, if the shoe is any deeper than 1", in this case you have a Series 385.
