block and tackle balancers

Professional from EL CAJON CA 92020

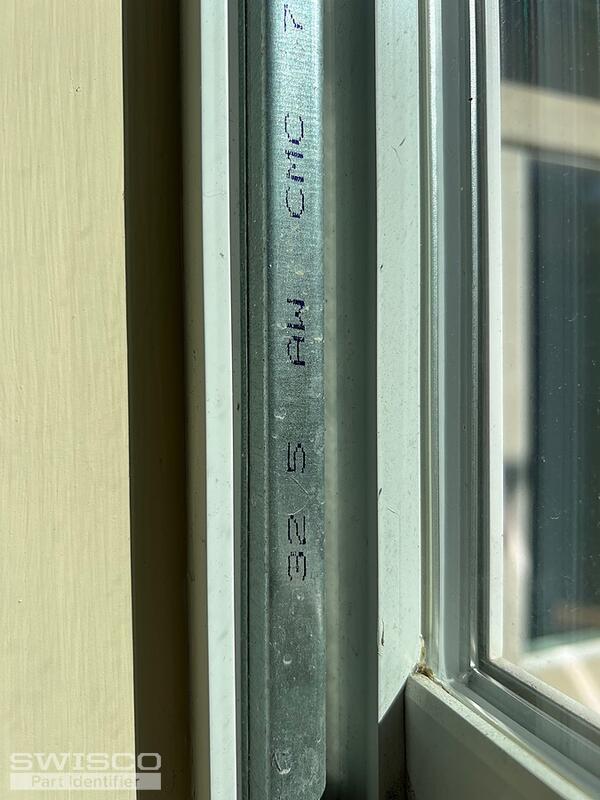

5/8 x 5/8 channel 34" OVER ALL LENGTH FOR 29.8 LBS LABELED 32 5 AW CMC
NEED 6 EA

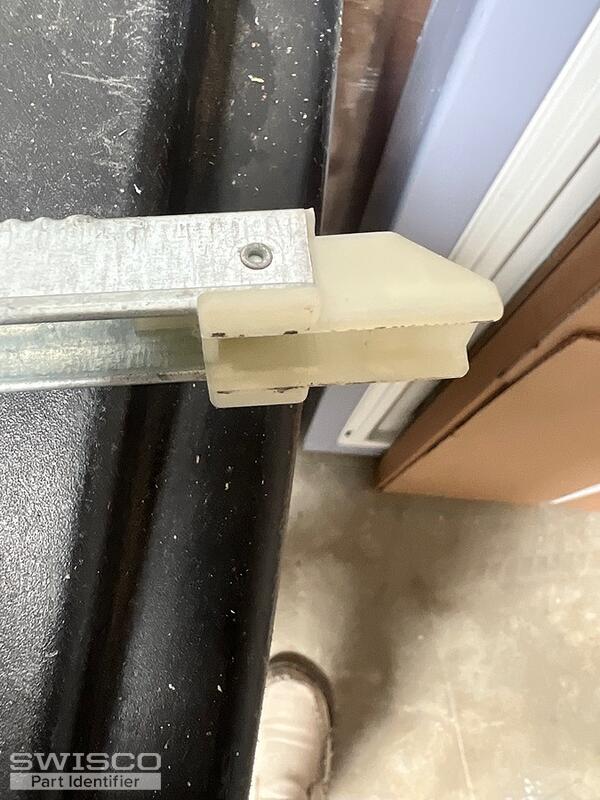

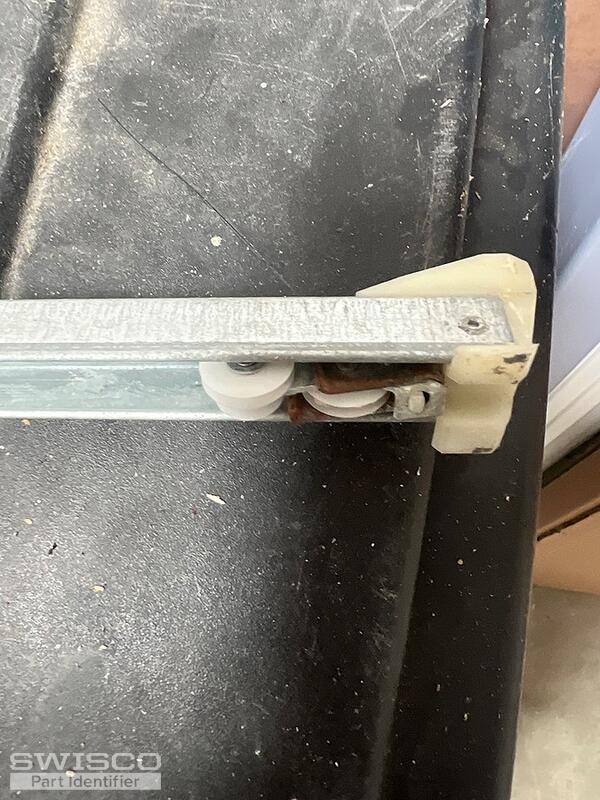

3 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either the S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 3250 spring strength options for your replacement balances, which support a sash between 28-32 lbs. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
