bolt that attaches to window crank handle

Quick Learner from Michigan

Sep 30, 2020 3:56 pm

Crank arm works for both these windows. The handle bolt does not appear to be stripped. Not sure what the exposed component is called and where I need to replace it or push/tap it in. Just not sure how to properly do this on 23 year-old Truth windows. I can't seem to find a video or instructions that help with this.

2 user uploaded images

4 Replies

Tom from SWISCO

Oct 5, 2020 2:06 pm

Unfortunately, the worm gear on your operator is, indeed, stripped out. This can't be repaired, so you will need a new operator.

We can help, but I will need a clear picture of the entire operator mechanism. That includes the arms that open and close the window on the outside.

Quick Learner from Michigan

Oct 24, 2020 2:35 pm

Hi Tom,

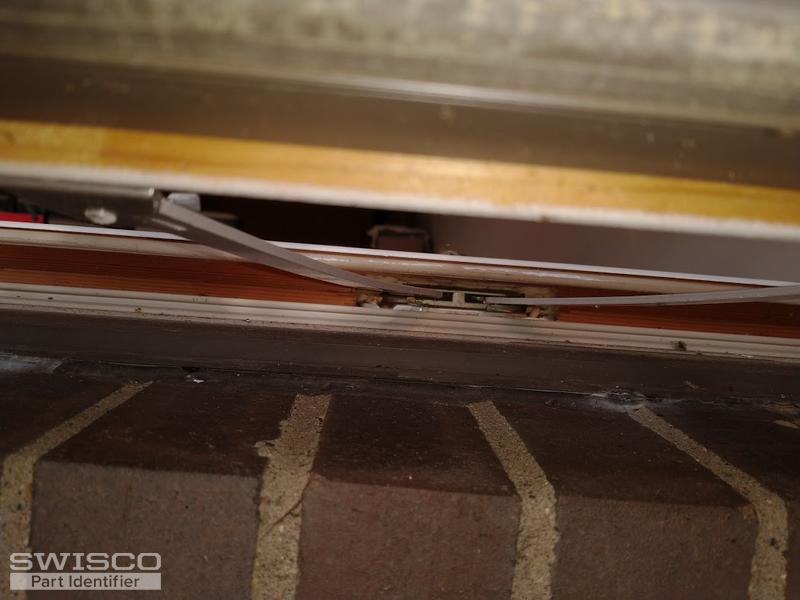

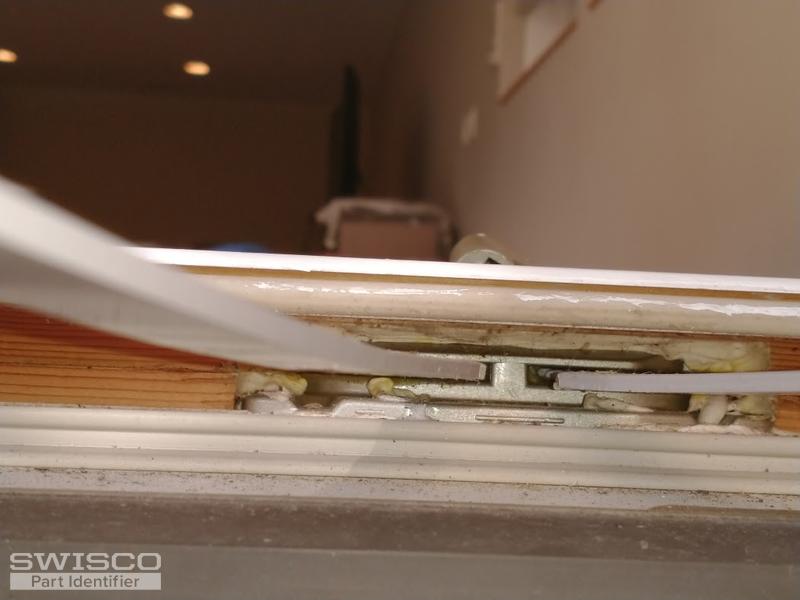

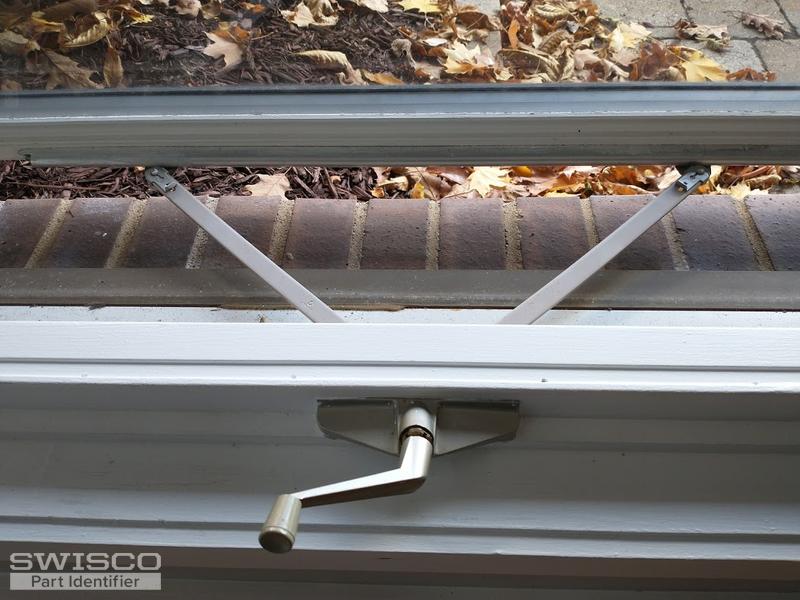

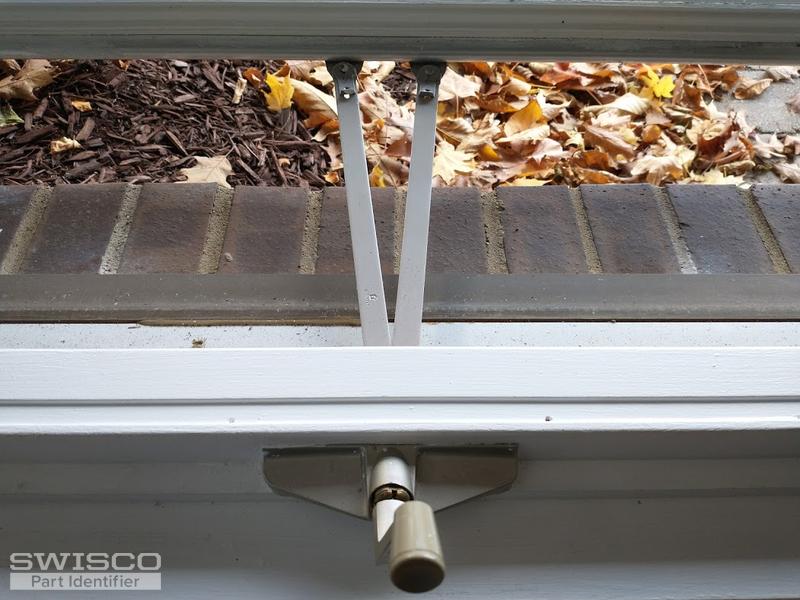

Here are some photos from internal and external side of the window. The arms and slot mechanism, work well. The Truth arms are about 11 inches long. Thank you.

5 user uploaded images

Tom from SWISCO

Oct 27, 2020 8:34 am

Thanks! This operator looks like a potential match for our 39-348. Look it over and let me know if you agree.
