bottom door bracket

Handy Person from Texas
Sep 2, 2022 4:13 pm

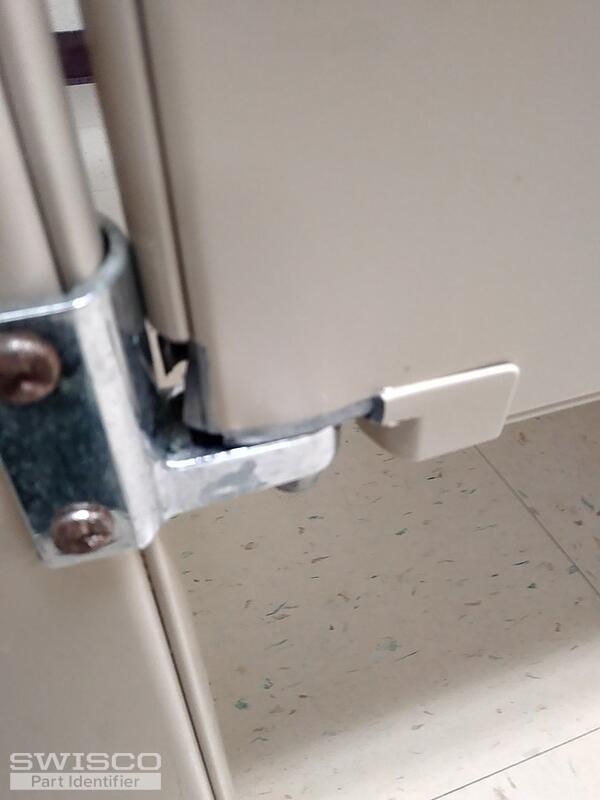

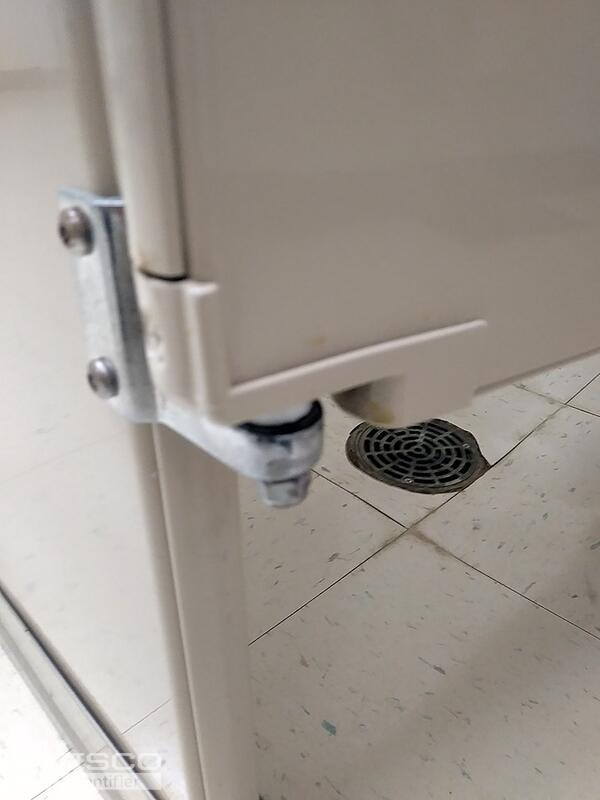

Need to know what this broken part is. First Photo shows the broken one and second photo show the same part intact on another door.
0902221453_HDR 0902221453a_HDR
2 user uploaded images
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
Sep 6, 2022 11:27 am
SWISCO
EXPERT

This looks like the bottom hinge for a lavatory partition door. See our 10-593 for a potential replacement. Review the specs below and see what you think. We also sell the 10-594 top bracket, in case you needed that, too.

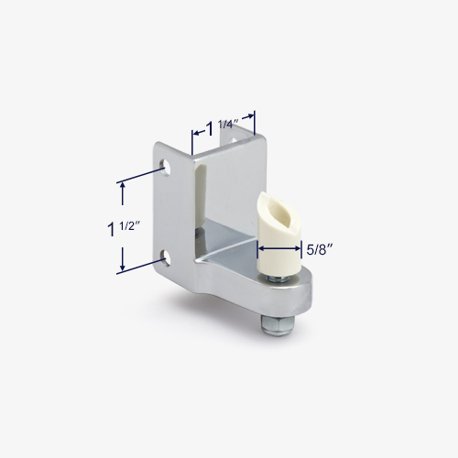

Detail of 10-593
Detail of 10-593

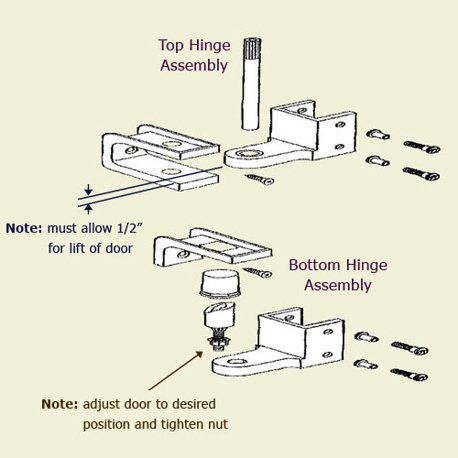

Installation diagram of the lavatory door bracket.
Installation diagram of the lavatory door bracket.

+ Add a Comment
Products and resources found in this discussion
Bottom Hinge Bracket
Bottom Hinge Bracket
10-593
$9.97
Top Hinge Bracket
Top Hinge Bracket
10-594
$8.17
