bottom roller hardware

Home Owner from Michigan

Dec 19, 2014 12:05 pm

Could use some help Identifying the roller hardware in the bottom of the door. Also any suggestions on who may have done the 3 session room install. If they are still in business I would hire them to restore all the rollers and seals.

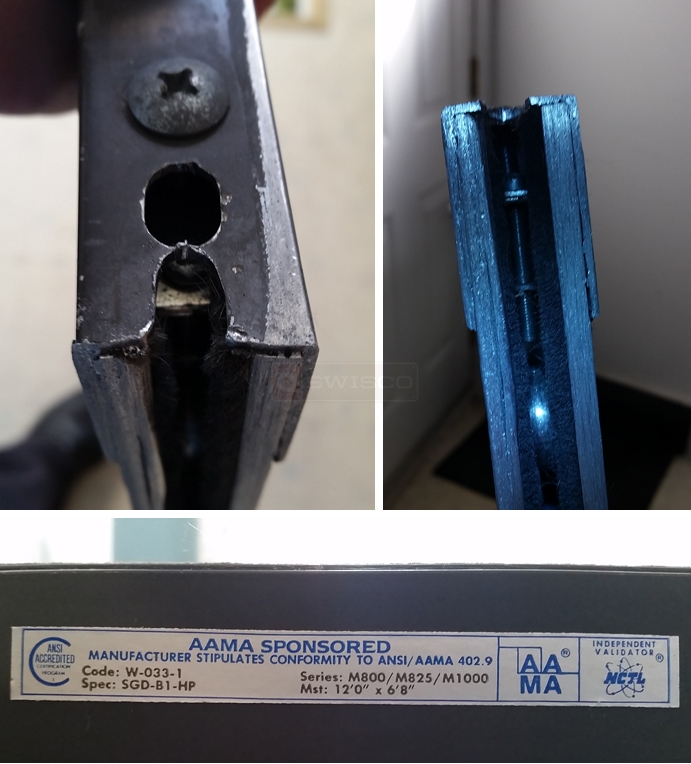

User submitted photo of their patio door roller.

6 Replies

Paul from SWISCO

Dec 19, 2014 12:48 pm

It's hard to tell what you have without seeing the part in question removed from the door. However, I would start by looking at our 81-033. This appears similar to what I can see, but look it over and let me know what you think. I highly recommend removing the roller from the door to ensure that it matches.

Home Owner from Michigan

Dec 19, 2014 1:04 pm

Paul

Thank you for the fast response. I removed the large Philips bolt shown in the top left picture. I then tried prying the roller out of the bottom of the door. I did not use great force as I was thinking there might be a proper way of removing it. I did not see any sign of it budging. Do you think there are more bolts? Do you think it might need to slide in a specific direction first before dropping out of the bottom?

Home Owner from Michigan

Dec 19, 2014 1:06 pm

Paul

I was also wondering if the conformity badge gives any indication of the manufacturer?

Paul from SWISCO

Dec 22, 2014 10:06 am

The AAMA tag tells me it is a Wells door, and I happen to know that the 81-033 is used by Wells. I just can't be sure. You will need to remove the bottom door rail to get to the roller. Look at our video blow for some tips. The roller featured in the video is different, but the same principle applies.

Professional from CA

Dec 22, 2014 4:01 pm

If this is an 81-033 then the slot you see near the top of the roller slides over an extrusion in the bottom rail. It is meant to slide out the end of the rail similar to the video.
