bottom sash pivot pin replacement

A contractor from Norristown, Pennsylvania says:
June 24, 2019

The pin shown has the number "8" stamped into it. another broken one has "3" stamped into it. I have many windows as this is an apartment house. All pins that have been replaced to date have had the same end cap similar to your pivot bar Model 26-030.

Thanks in advance for your help.

Harrison

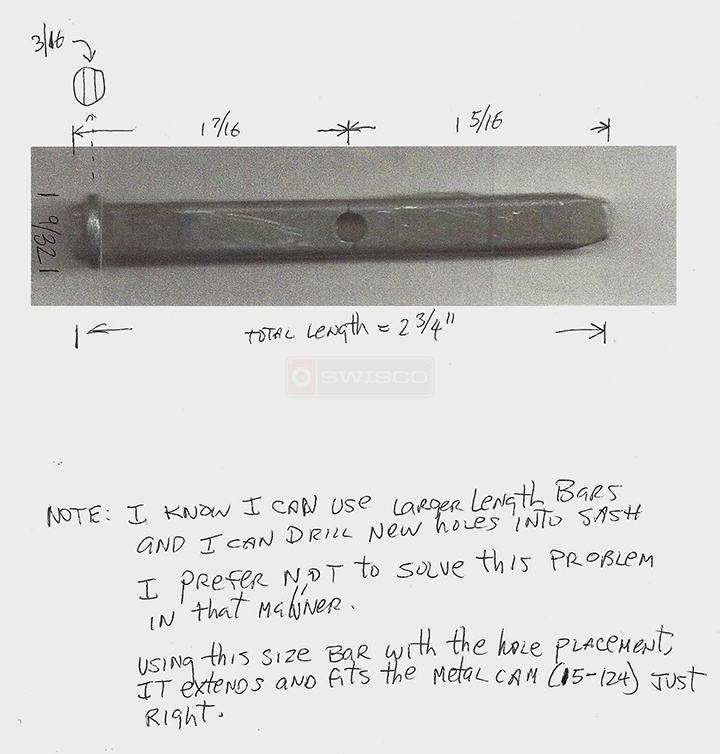

User submitted a photo of a pivot bar.
Profile picture of Tom
Tom from SWISCO responded:
July 1, 2019

I'm afraid that I can't find a pivot bar with a 1-7/16" hole placement. The closest we have is our 26-226, which is 1-3/8" measuring from the center of the front hole to the tip. Could this possibly work for you? I would measure your hole again to see if it might be closer to 1-3/8", just in case.
PivotTrue Pivot Bar
PivotTrue Pivot Bar
26-030
$1.92
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
