bottom shoe question

Home Owner from hood river oregon

Jun 26, 2019 9:51 pm

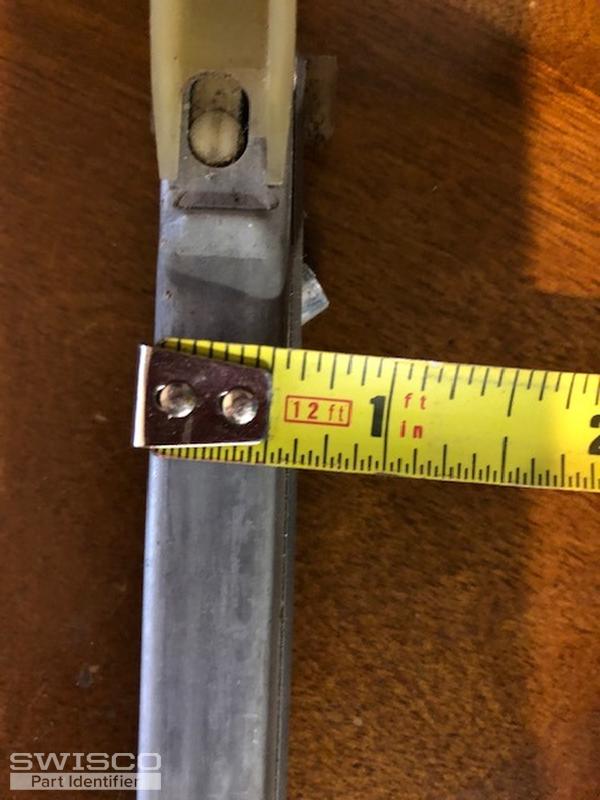

Hi, Could you help determine if i need a 1" or 1-3/32" bottom shoe. When measuring my old bottom shoe with a caliper its in between these two measurements @ 1.050" This is very confusing, could you please assist me?

27 inch channel x 1/2 width / non tilt

Ebb

4 user uploaded images

4 Replies

Bob from SWISCO

Jul 1, 2019 1:45 pm

Hi Ebb. This is a good question. If the bottom shoe is greater at all than 1", then the Series 385 is the correct choice. If it's a little less than 1-3/32", this is only due to the shoe wearing down from age. The fact it's deeper than 1" indicates that the Series 385 is the correct choice regardless. Specifically, it looks like you need an S385-27, with a stamp option of 2640. Let us know if you have any other questions.

Home Owner from hood river oregon

Jul 2, 2019 8:49 pm

Thank you, that clears up my questions and now I'm ready to order,
Thanks again!

Bob from SWISCO

Jul 3, 2019 8:42 am

Hi Ebb! Sounds good. All orders can be placed through our online store. When you find a part you want, like the S385-27, simply click "Add to Cart," and then click "Checkout" at the top right hand corner of the screen. Don't forget to select the stamp option of 2640, or to set the quantity you need. If you have any other questions, just ask. Many thanks for considering our business, we appreciate it.
