bottom track for ancient mirror bypass closet doors

Quick Learner from California

Jul 18, 2024 6:27 pm

As you can see the originals are rusty.
Track is 3" wide,
Outside edge is 1/2 ".

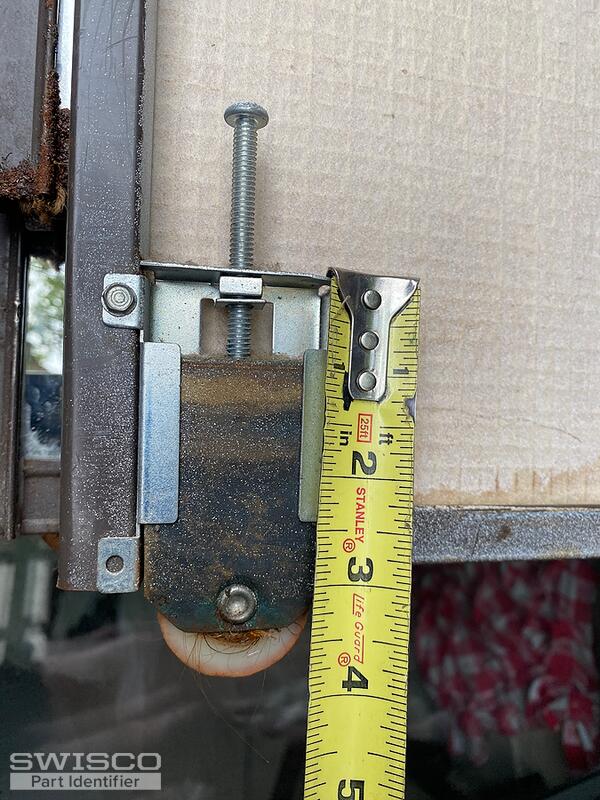

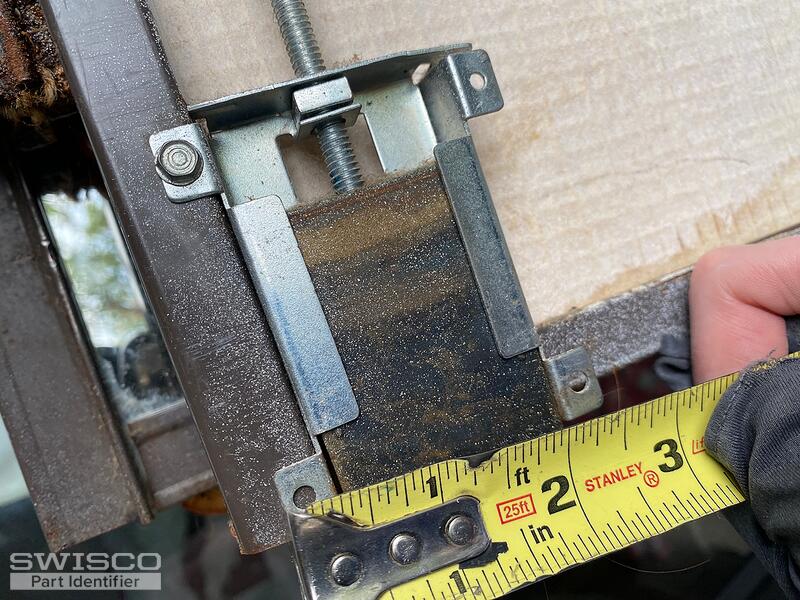

I can probably figure out the wheel / roller things for the doors but I don't know how to tell if they are concave.
THANK YOU!!!

5 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Jul 22, 2024 11:34 am

EXPERT

Hello there!

Thanks for reaching out to us. This appears to be a track for concave roller wheels. With that said, take a look at the 23-270, 23-271, and 23-272. Review the specifications and see what you think.

Profile view of bottom concave roller track

Quick Learner from California

Jul 22, 2024 2:33 pm

The total width of the original is 3", and the measurement between the bumps is 1-11/16" on the original. (It's 1-21/32" on the 23-270.)
The outside edge of the original is 1/2" and the edges in the inside of the track are straight / don't curve in (see profile photo.)
Do these differences matter?
Also which rollers do I use with the 23-270?
What's the difference between the 23-028 and the 23-070 rollers?
Thank you!!

Emily from SWISCO

Jul 23, 2024 3:01 pm

EXPERT

We don't sell an exact match for your old track but we do believe it's worth considering despite the differences you mentioned.

The roller looks like the 23-028 which has a concave roller wheel that's compatible with the 23-270 track. The difference between the two rollers you mentioned is the overall design and style.
