broke tilt key
Quick Learner from New Jersey
Nov 4, 2019 12:02 pm

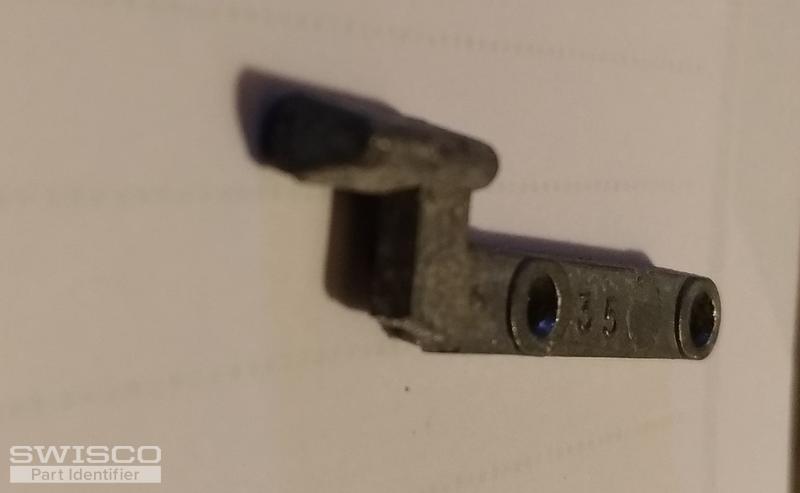

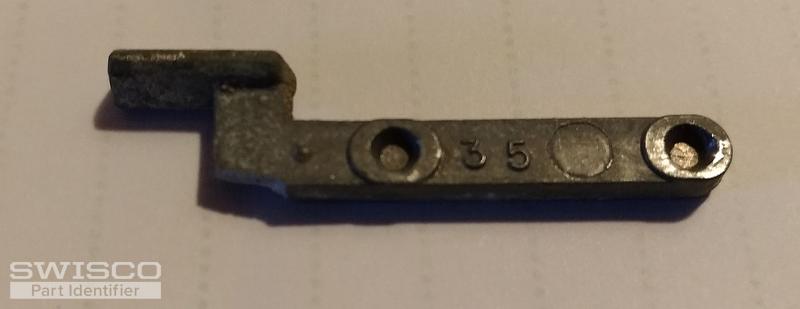

I have tried to find the corner keys from your drawings. The swivel key best match is 95-209. [The current swivel key is stamped with the number 35.] The dimensions I need are 1/8" wide and 5/32" tall on the shaft material. Side length is 1 1/4".
2 user uploaded images
2 Replies
Tom from SWISCO
Nov 12, 2019 9:15 am
I'm afraid that I couldn't find an exact match for this corner, either. The closest match we have in our inventory in terms of both style and size is our 95-008 (LH) and our 95-009 (RH). The legs on these corners are 3/16" tall and 9/64" thick, according to the manufacturer. However, I actually just ran in back with my calipers and got a more accurate read. To be more precise, the legs are .180" tall and .146" thick.
Hopefully this will help you make a decision. Please let me know if you have any questions.
