broken casement window operator

Question

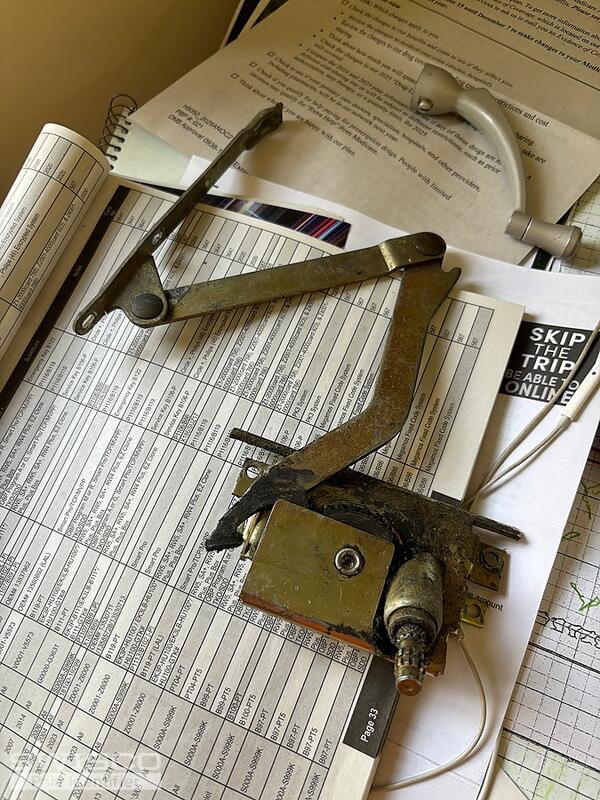

I have a broken casement window operator.  The only ID on the window is stamped on the sill track & is R 902 WC.  This is an egress window and the dimensions are greater than the operator I've seen on this site.  Photos follow -  Thanks in advance if you can be of help.

Lauren · Accepted Answer

Hello, thank you for posting,

It appears that your window uses Pella hardware. Please review the style and dimensions of the 39-175 operator. Compare to your original to confirm a good fit! If you need a new handle, see the 39-109B, but note that the original cover will need to be reused as it has been discontinued.

Let us know if you have any additional questions.

Dimensions for 39-175

View of the arm of the 39-175 window operator.
