broken channel balances

Handy Person from Chapel Hill, NC

Nov 7, 2019 1:49 pm

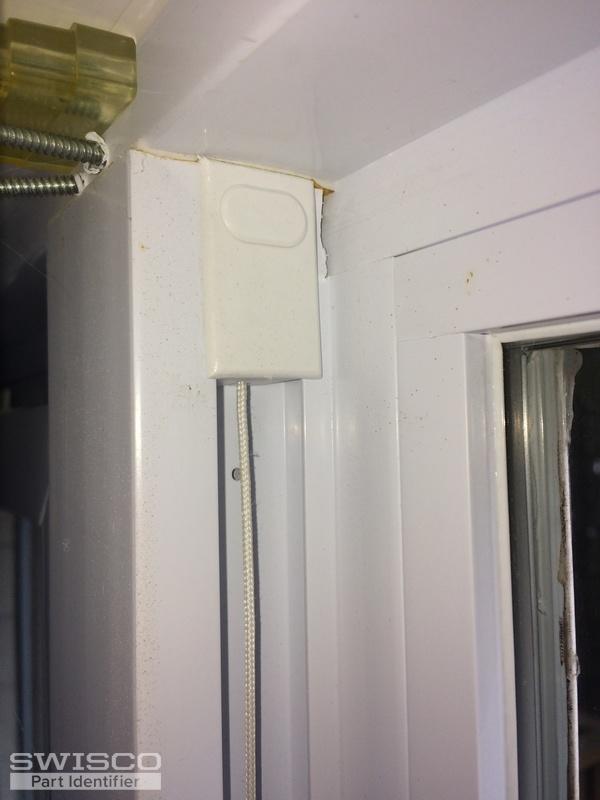

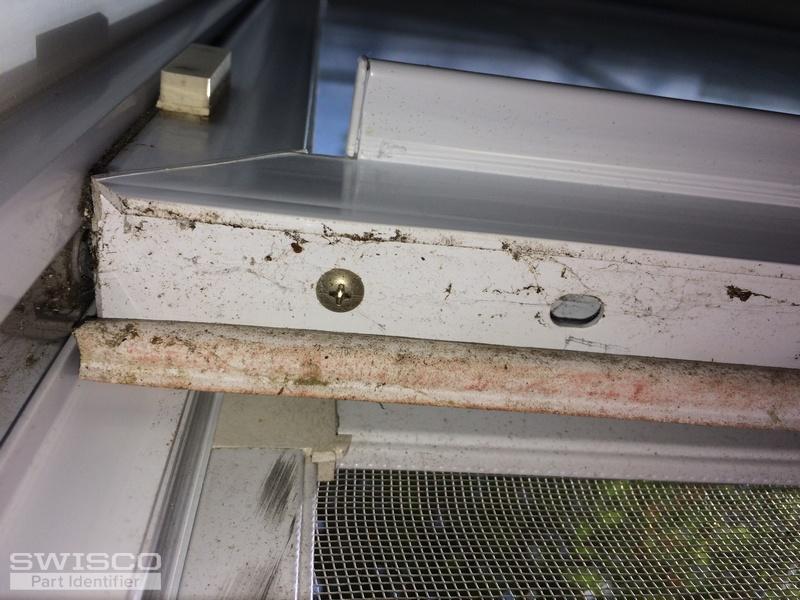

Manufacturer unknown. upper part of window is immobile. lower sash goes up & down, & tilts out. it is connected to the channel balance along its lower edge. the spring in balance was attached to plastic piece of upper end of balance, but that piece has broken. spring length is 15 1/4". balance length is 33".

Thanks in advance for any help you can offer.

5 user uploaded images

2 Replies

Tom from SWISCO

Nov 12, 2019 3:24 pm

Thanks for posting! Looks like you have a match for our S795-33 channel balance. Look it over and let me know if you agree.
