broken coil parts

Question

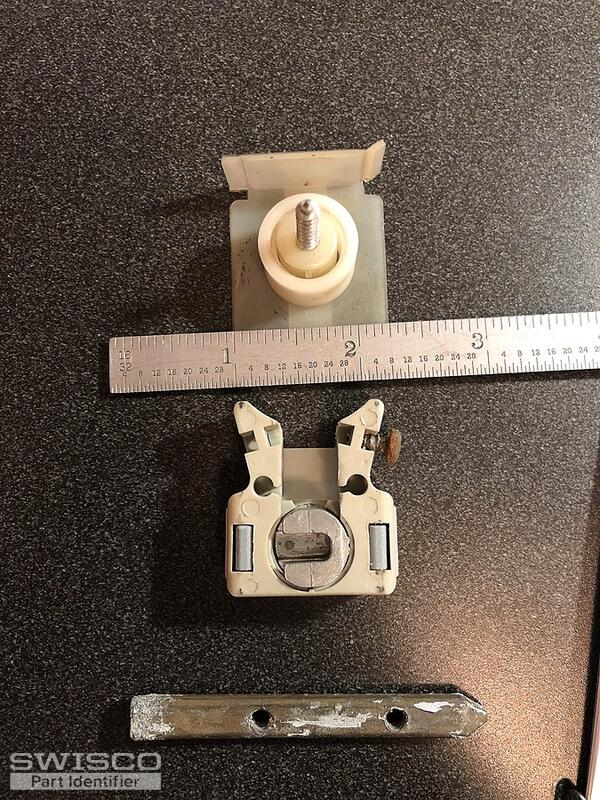

I was thinking the 26-226 might be my pivot bar but the tip broke off this one.

What are the other parts that you see here, which I need to fix my window?

Tom · Accepted Answer

Hello! Your pivot shoe appears to match our 15-175, which is designed to be used with the Series 152 coil spring. We don't sell that same cover you have, but you can use our 15-143 bushing, 15-144 bushing cap, and 15-145 barrel.

The pivot bar could be anything at this point, even the 26-226 you picked out. I would need to see an undamaged version to give you a more confident answer. Knowing the hole positions would also be a huge help (you can use the dimensions on our 26-226 store page as a reference).
