broken handle

A home owner from hampton va says:
May 17, 2017
Storm door handle shaft broken, do not know door maker. The existing handle is 1 1/4 wide x 7 3/8 long. And the other part is 13/16" wide. What I am looking is/for the latch and dead bolt, they are 2 5/8" center to center. The Pella 40-193 looks like it would work but do not know about the distance of the 2 5/8" center to center. Thank you

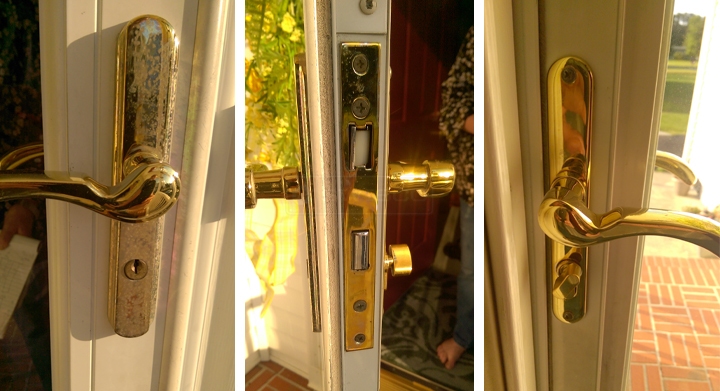

User submitted photos of a door handle set.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 23, 2017
Concerning our 40-193, I checked the center holes from the lever to the dead bolt and I'm came up with 2-1/2" on center. Recheck you dimensions just to be sure. Also check your back set; the 40-193 has a back set of 7/8". Finally, take a look at the 40-194 or 40-198 mortise locks. Remove your handle from the door and see if either of these mortise locks match up to yours.
Storm Door Mortise Latch
Storm Door Mortise Latch
40-194
$42.47
Storm Door Mortise Latch
Storm Door Mortise Latch
40-198
$42.47
How to flip a storm door mortise latch.
How to flip a storm door mortise latch.
